Body Control Module (BCM)

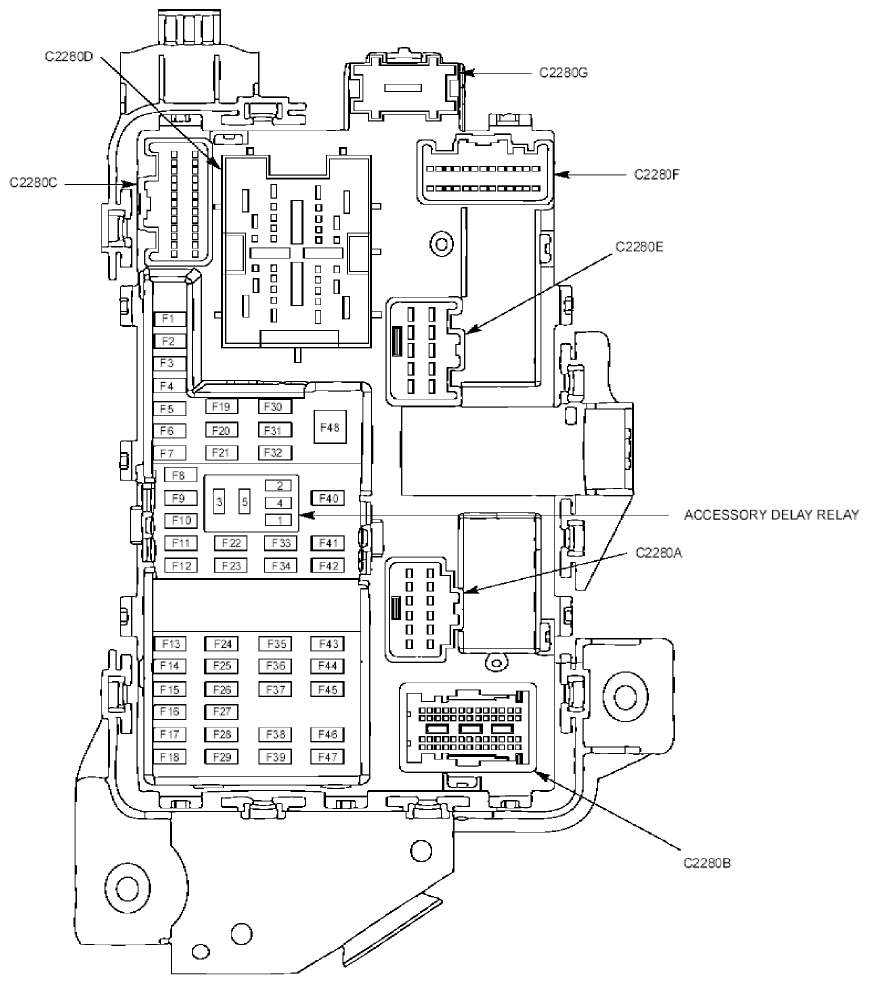

BODY CONTROL MODULE RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory Delay Relay |
BODY CONTROL MODULE (BCM) FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor, right rear |
| F2 | 15 | Seat control switch, driver side front |
| F3 | 30 | Power window motor, right front |
| F4 | 10 | Battery saver relay |
| F5 | 20 | Audio Digital Signal Processing (DSP) Module, Digital Audio Control Module |
| F6 | 5 | Not used |
| F7 | 7.5 | Driver Seat Module (DSM) - with memory Keypad Switch Assembly, Driver Door Module (DDM) |
| F8 | 10 | Not used |
| F9 | 10 | Accessory Protocol Interface Module (APIM), Front Controls Interface Module (FCIM) |
| F10 | 10 | Run/Acc Relay |
| F11 | 10 | Remote Function Actuator RFA) module head Up Display (HUD) module |
| F12 | 15 | Scuff plate lamps, Interior lighting, Backlighting, Exterior rearview mirrors |
| F13 | 15 | Right front Park/turn lamps - turn lamp, Right rear lamp assembly - turn lamp |
| F14 | 15 | Left front park/turn lamps - turn lamp, Left rear lamp assemblies - backup lamp |
| F16 | 10 | Right headlamp - low beam |
| F18 | 10 | Floor shifter, Powertrain Control Module (PCM, Start/Stop switch |
| F19 | 20 | Audio Digital Signal Processing (DSP) Module, Subwoofer amplifier |
| F20 | 20 | Door lock actuators |
| F21 | 10 | Not used |
| F22 | 20 | Horn |
| F23 | 15 | Steering Column Control Module (SCCM), Instrument Panel Cluster (IPC) |
| F24 | 15 | Data Link Connector (DLC), Steering Column Control Module (SCCM) |
| F25 | 15 | Liftgate release relay |
| F26 | 5 | Start/stop switch |
| F27 | 20 | Remote Function Actuator (RFA) module |
| F28 | 15 | Not used |
| F29 | 20 | Audio Control Module (ACM) Global Positioning system Module (GPSM) |
| F30 | 15 | Headlamps - left and right |
| F31 | 5 | Brake Pedal Position (BPP) switch, Remote Function Actuator (RFA) Module, Powertrain Control Module (PCM) |
| F32 | 15 | Door lock switches, Power window motors, Window adjust switches, Sunshade module |
| F33 | 10 | Vehicle Dynamics Module (VDM) |
| F34 | 10 | Left rear heated seat module, Auto-dimming interior mirror Side obstacle detection control modules, Parking Aid Module (PAM), Video camera |
| F35 | 5 | Head Up Display (HUD) module, In-vehicle temperature/humidity sensor |
| F36 | 10 | Heated Steering Wheel Module (HSWM) |
| F37 | 10 | Not used |
| F38 | 10 | Roof opening panel control switch, Roof opening panel module |
| F39 | 15 | Headlamps - high beam |
| F40 | 10 | Rear lamp assemblies - park lamp License plate lamps, |
| F41 | 7.5 | Restraints Control Module (RCM), Occupant classification System Module (OCSM) |
| F42 | 5 | Not used |
| F43 | 10 | Not used |
| F44 | 10 | Not used |
| F45 | 5 | Not used |
| F46 | 10 | HVAC module - DATC |
| F47 | 15 | Fog lamps |
| F48 | 30 c.b. | Not used |
