Accessory Protocol Interface Module (APIM): Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

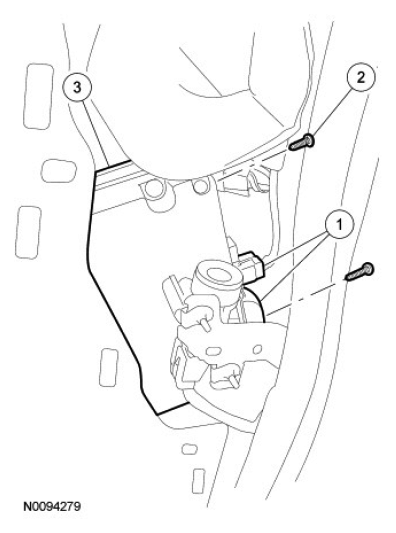

Fig 1: Identifying Accessory Protocol Interface Module With Screws And Electrical Connectors

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Accessory Protocol Interface Module (APIM) electrical connectors (part of 14401 and 14D202)
2	-	APIM screws (2 required)
3	14D212	APIM
