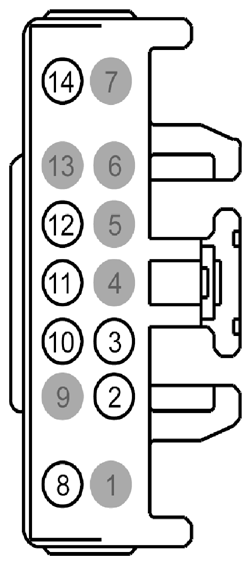

Trailer Brake Control (TBC) Module Connector End View (C2142)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | Expedition only |
| 3 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | Expedition only |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | SBB18 (YE-RD) | 12 | FUSE - 18 OR CIRCUIT BREAKER | |
| 9 | * | * | Not Used | |
| 10 | CLS17 (YE-GY) | 18 | SWITCH - BRAKE PEDAL POSITION (BPP) | |
| 11 | GD138 (BK-WH) | 16 | GROUND - CROSS CAR BEAM # 3RD STUD | |
| 12 | CBP33 (WH-BN) | 20 | FUSE - 33 OR CIRCUIT BREAKER | |
| 13 | * | * | Not Used | |
| 14 | CAT19 (BU) | 12 | CTRL MOD. - TRAILER TOW # BRAKES |
| Available Pigtail Kits | |
|---|---|

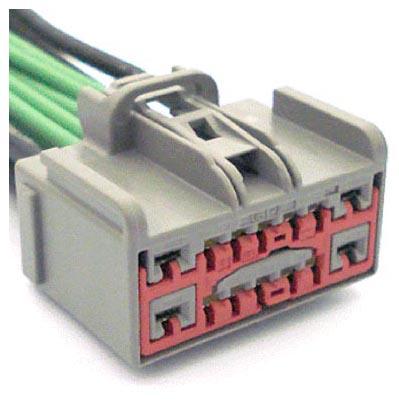

| Pigtail Kit Part Number WPT-741 | Service Part Number: 3U2Z-14S411-BJAA Gauge: 12 16 Pin material: Tin Cavities: 14 Vehicle Uses
|

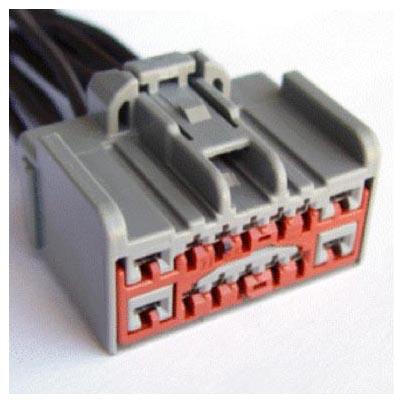

| Pigtail Kit Part Number WPT-955 | Service Part Number: 3U2Z-14S411-BJAC Gauge: 12 14 16 Pin material: Tin & Silver Cavities: 14 Vehicle Uses
|
