OEM Ground Distribution: Grounds: Notes

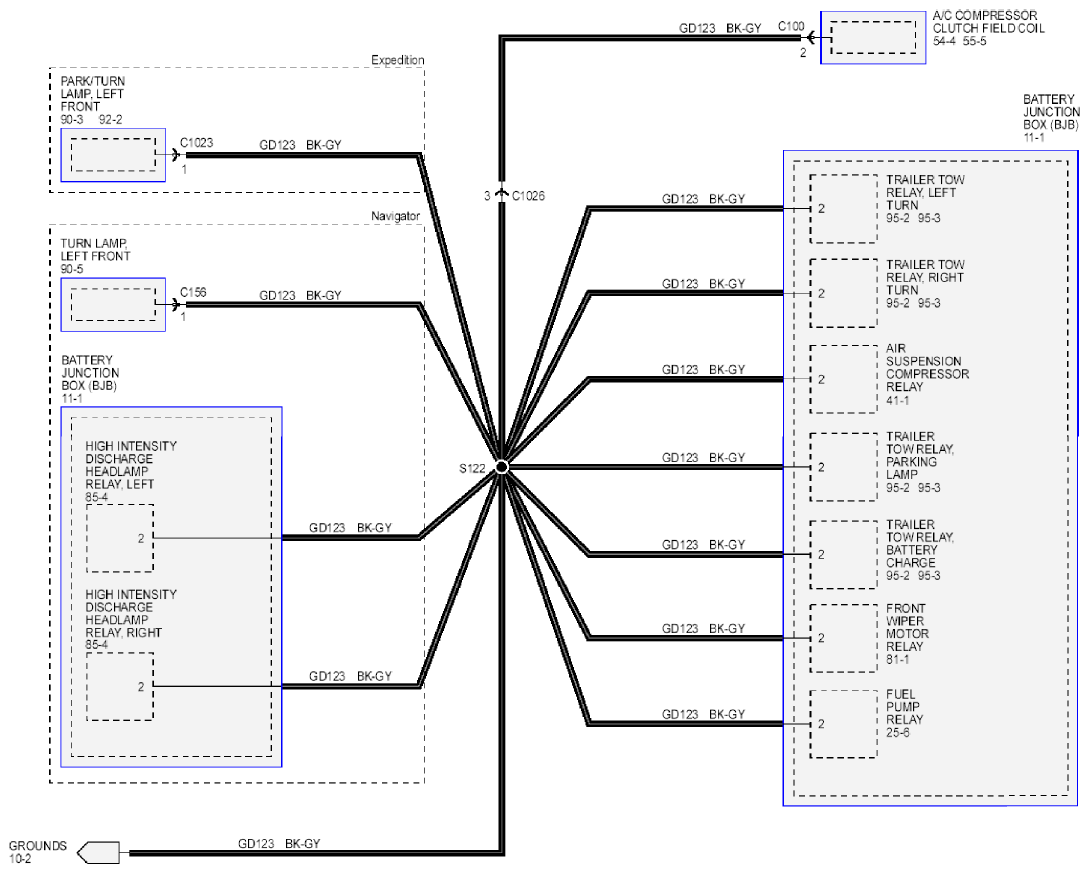

Fig 1: Grounds System - Wiring Diagram (1 Of 3)
G09220348Courtesy of FORD MOTOR CO.

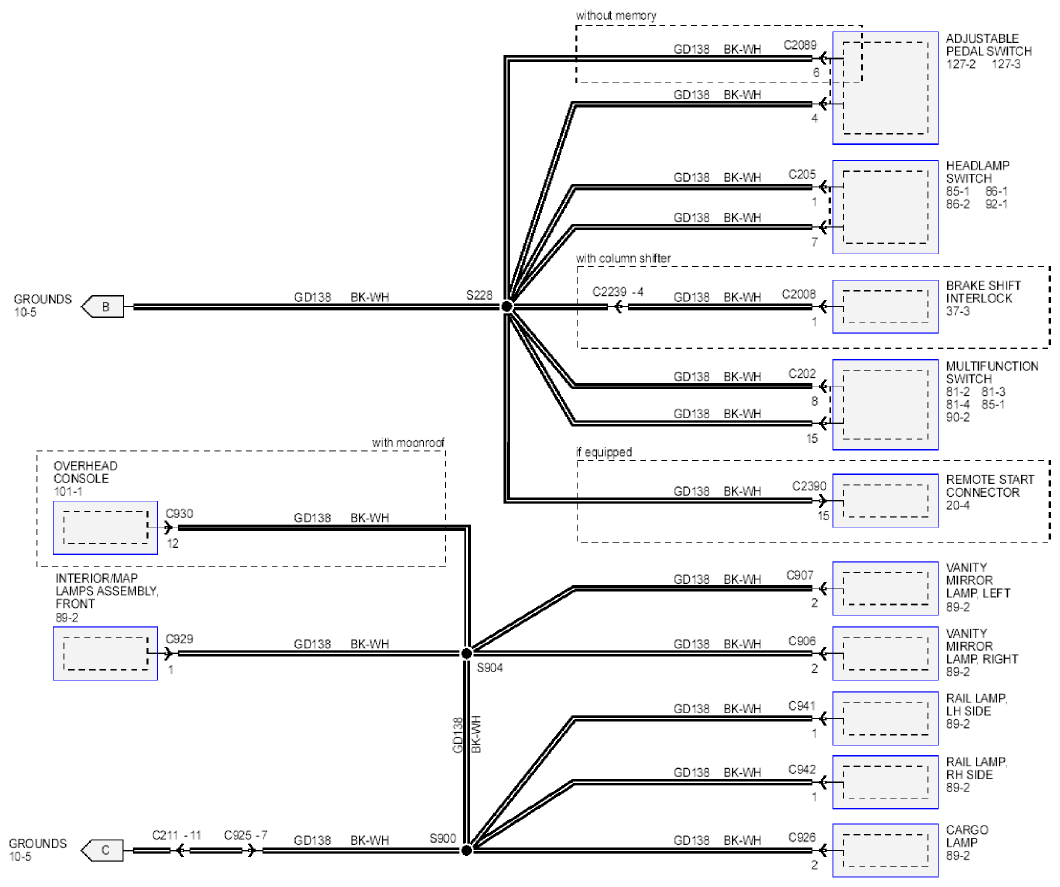

Fig 2: Grounds System - Wiring Diagram (2 Of 3)
G09220351Courtesy of FORD MOTOR CO.

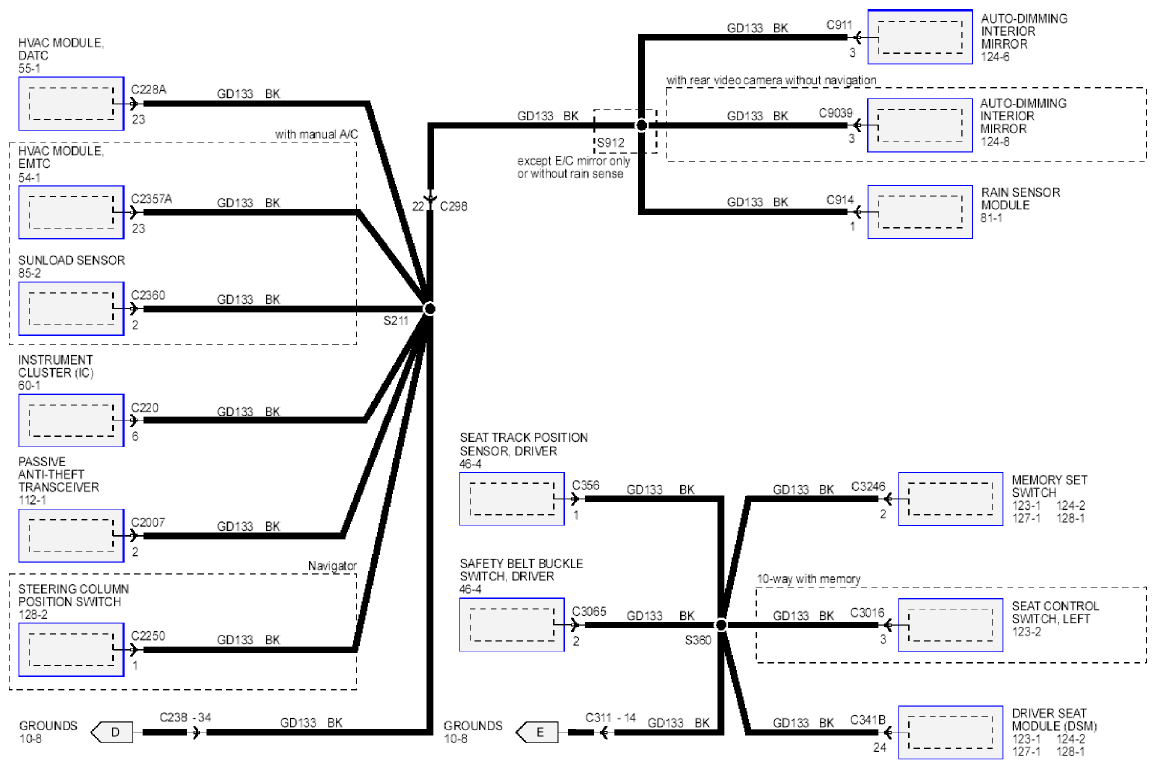

Fig 3: Grounds System - Wiring Diagram (3 Of 3)
G09220354Courtesy of FORD MOTOR CO.
