Fuel Level Sender: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

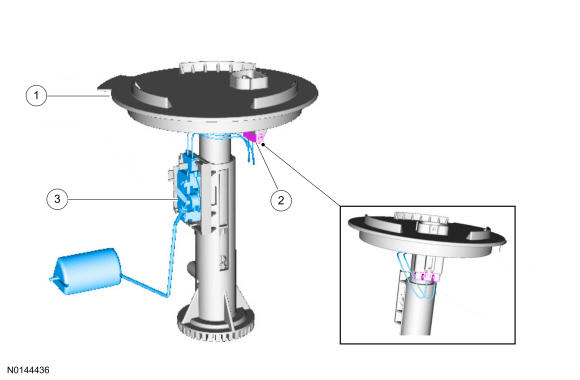

Fuel Pump (FP) Module Mounted Sender
| Item | Part Number | Description |
|---|---|---|
| 1 | 9H307 | Fuel Pump (FP) module |
| 2 | - | Fuel level sender electrical connector (part of 9A299) |
| 3 | 9A299 | Fuel level sender |

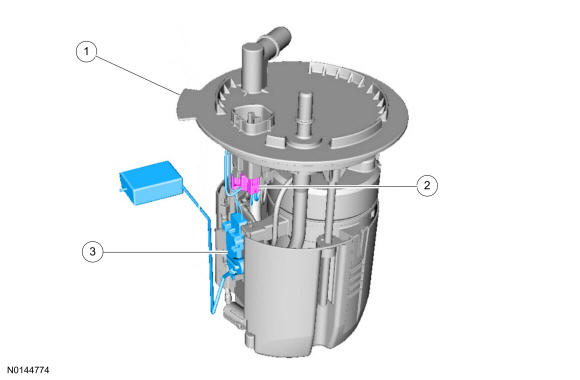

Fuel Level Sensor Assembly Mounted Sender
| Item | Part Number | Description |
|---|---|---|
| 1 | 9275 | Fuel level sensor assembly |
| 2 | - | Fuel level sender electrical connector (part of 9A299) |
| 3 | 9A299 | Fuel level sender |
