Wheel Speed Sensor - Front: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

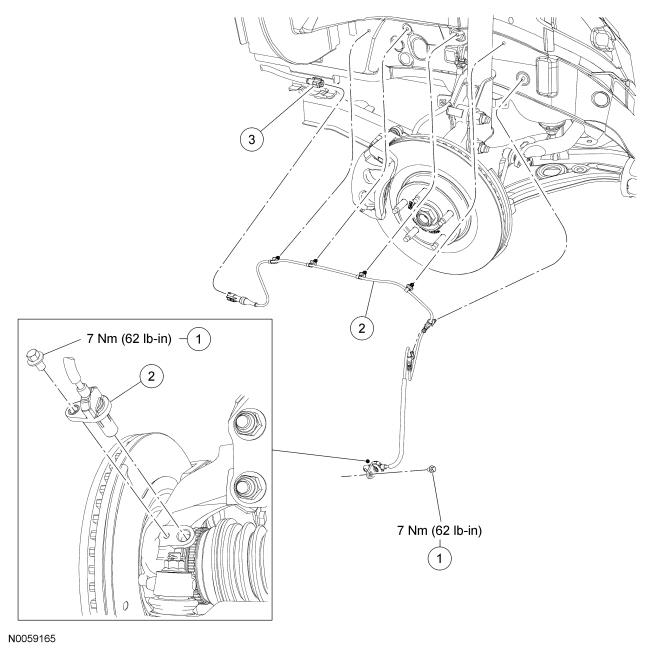

Fig 1: Wheel Speed Sensor (Front) Component Location With Torque Specifications
GFD96592Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 W500010 Wheel speed sensor bolt
2 2C204 RH/ 2C205 LH RH/ 2C205 LH Wheel speed sensor
3 - Wheel speed sensor electrical connector (part of 14290)
