Fuel Level Sender: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

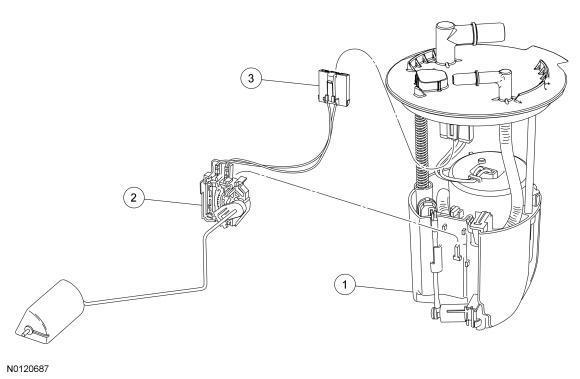

GFD99220Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 9H307 Fuel Pump (FP) module
2 9A299 Fuel level sender
3 - Fuel level sender electrical connector (part of 9A299)
