Steering Column Shroud: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

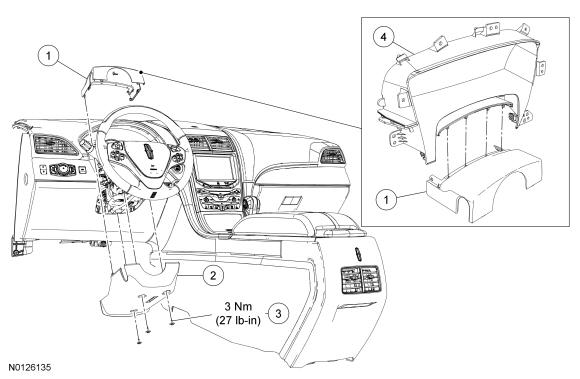

Fig 1: Steering Column Shroud Replacement Components With Torque Specifications
GFD96702Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 3530 Upper steering column shroud
2 3530 Lower steering column shroud
3 W710485 Lower steering column shroud screw (3 required)
4 - Instrument Panel Cluster (IPC) opening trim (part of 044F58)
