Steering Wheel: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

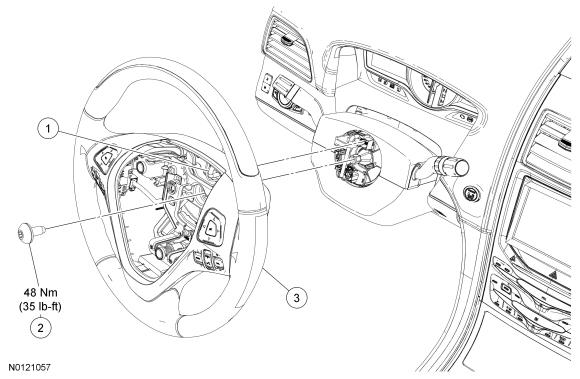

Fig 1: Steering Wheel Replacement Components With Torque Specifications
GFD96703Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Steering wheel switches electrical connector (part of 14672) (urethane/leather)
2 W708887 Steering wheel bolt
3 3600/3F563/3F563 Steering wheel
