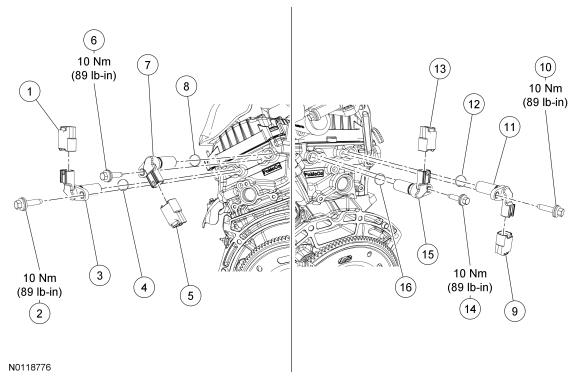

Exploded View Of Camshaft Position (CMP) Sensor
NOTE:
The Air Cleaner (ACL) outlet tube must be removed to service the RH cylinder head CMP sensors. For additional information, refer to
Intake Air Distribution and Filtering
.
NOTE:
The Air Cleaner (ACL) must be removed to service the LH cylinder head CMP sensors. For additional information, refer to
Intake Air Distribution and Filtering
.
NOTE:
Lubricate the Camshaft Position (CMP) sensor O-ring seal with clean engine oil before Installing the CMP sensor.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH cylinder head exhaust Camshaft Position (CMP) sensor electrical connector (part of 12A581) |
| 2 | W503275 | LH cylinder head exhaust CMP sensor bolt |
| 3 | 6B288 | LH cylinder head exhaust CMP sensor |
| 4 | - | LH cylinder head exhaust CMP sensor O-ring seal (part of 6B288) |
| 5 | - | LH cylinder head intake Camshaft Position (CMP) sensor electrical connector (part of 12A581) |
| 6 | W503275 | LH cylinder head intake CMP sensor bolt |
| 7 | 6B288 | LH cylinder head intake CMP sensor |
| 8 | - | LH cylinder head intake CMP sensor O-ring seal (part of 6B288) |
| 9 | - | RH cylinder head exhaust Camshaft Position (CMP) sensor electrical connector (part of 12A581) |
| 10 | W503275 | RH cylinder head exhaust CMP sensor bolt |
| 11 | 6B288 | RH cylinder head exhaust CMP sensor |
| 12 | - | RH cylinder head exhaust CMP sensor O-ring seal (part of 6B288) |
| 13 | - | RH cylinder head intake Camshaft Position (CMP) sensor electrical connector (part of 12A581) |
| 14 | W503275 | RH cylinder head intake CMP sensor bolt |
| 15 | 6B288 | RH cylinder head intake CMP sensor |
| 16 | - | RH cylinder head intake CMP sensor O-ring seal (part of 6B288) |
