Connector Repair Procedures

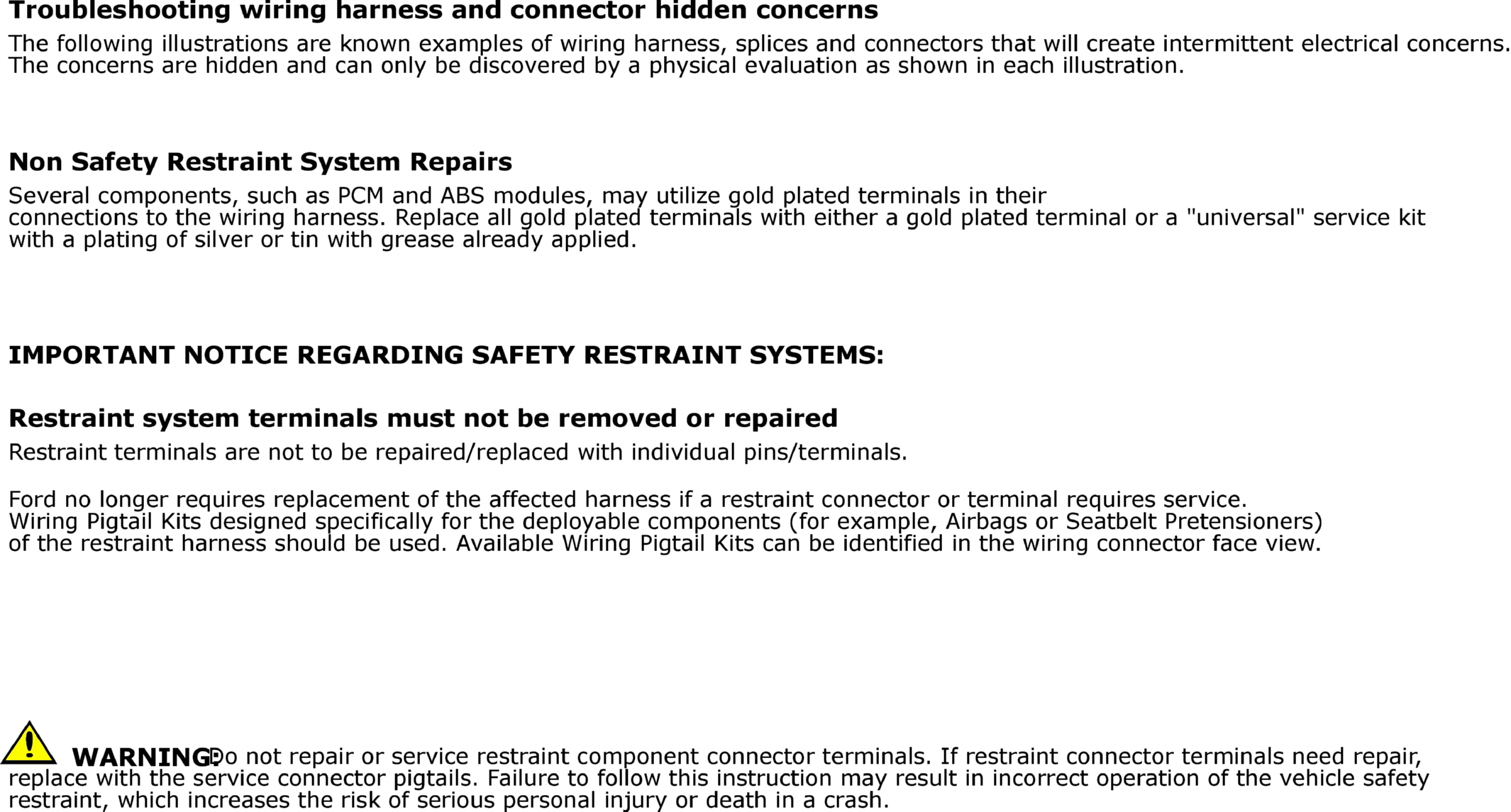

GFDW36605Courtesy of FORD MOTOR COMPANY

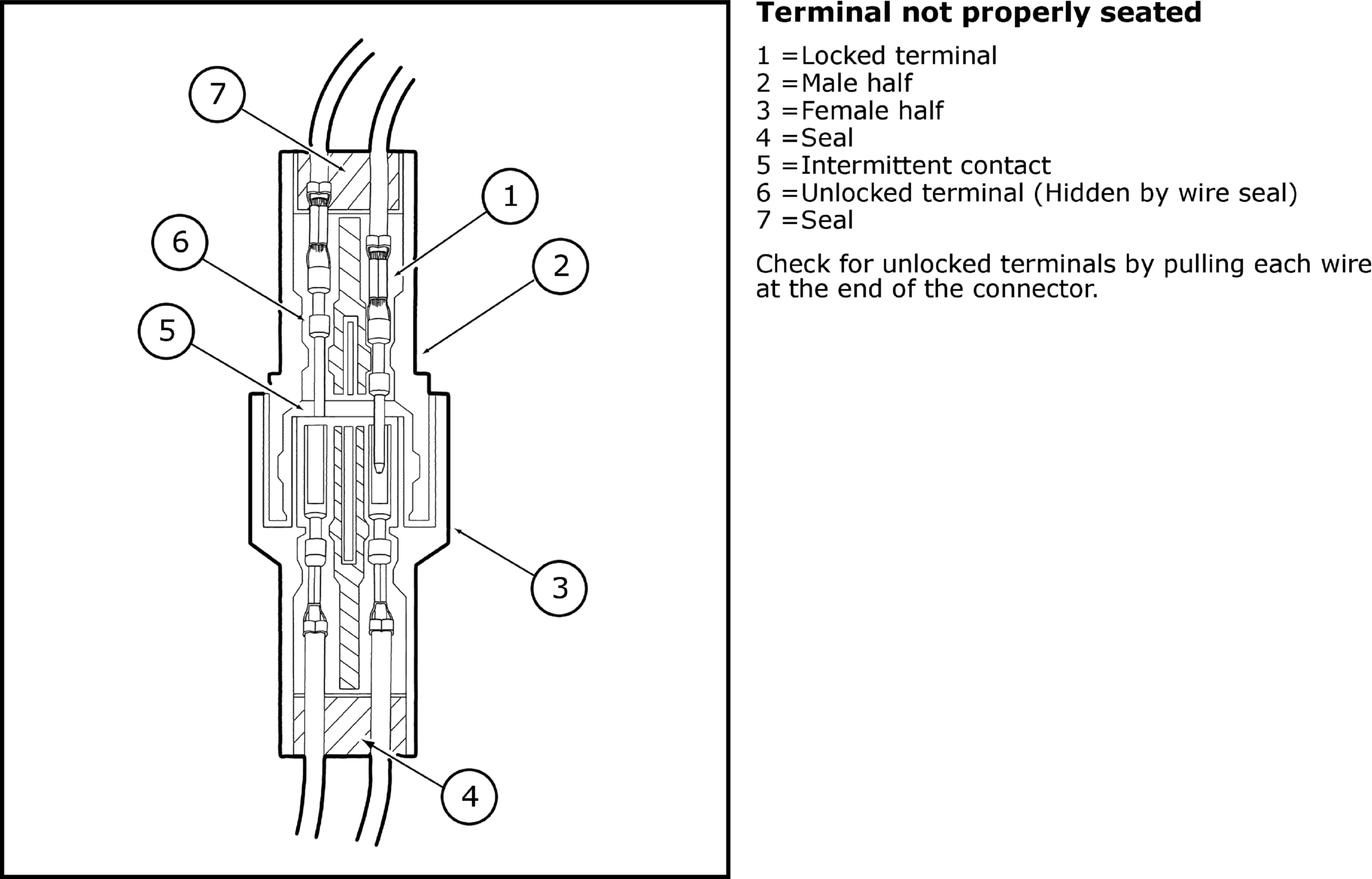

GFDW36606Courtesy of FORD MOTOR COMPANY

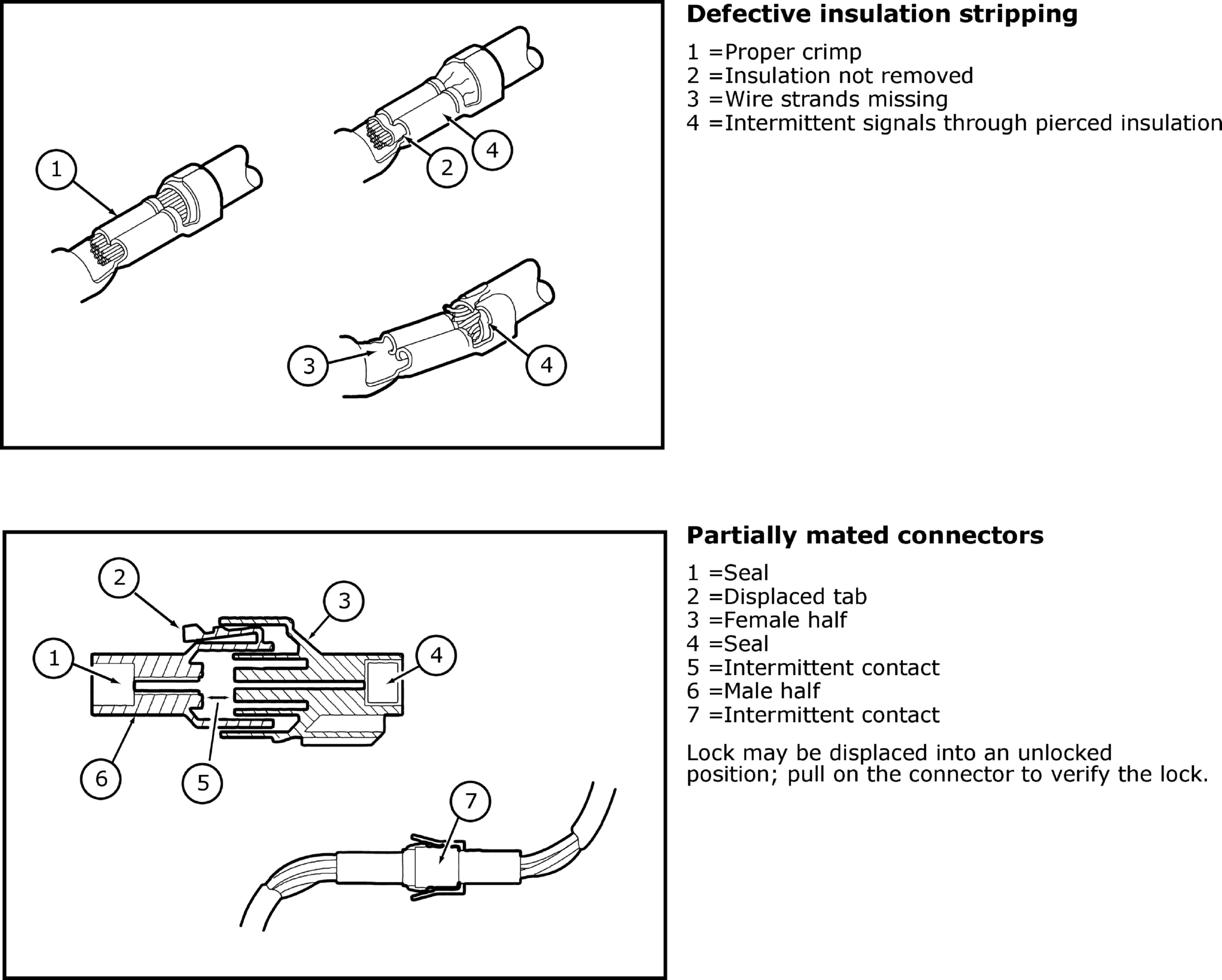

GFDW36607Courtesy of FORD MOTOR COMPANY

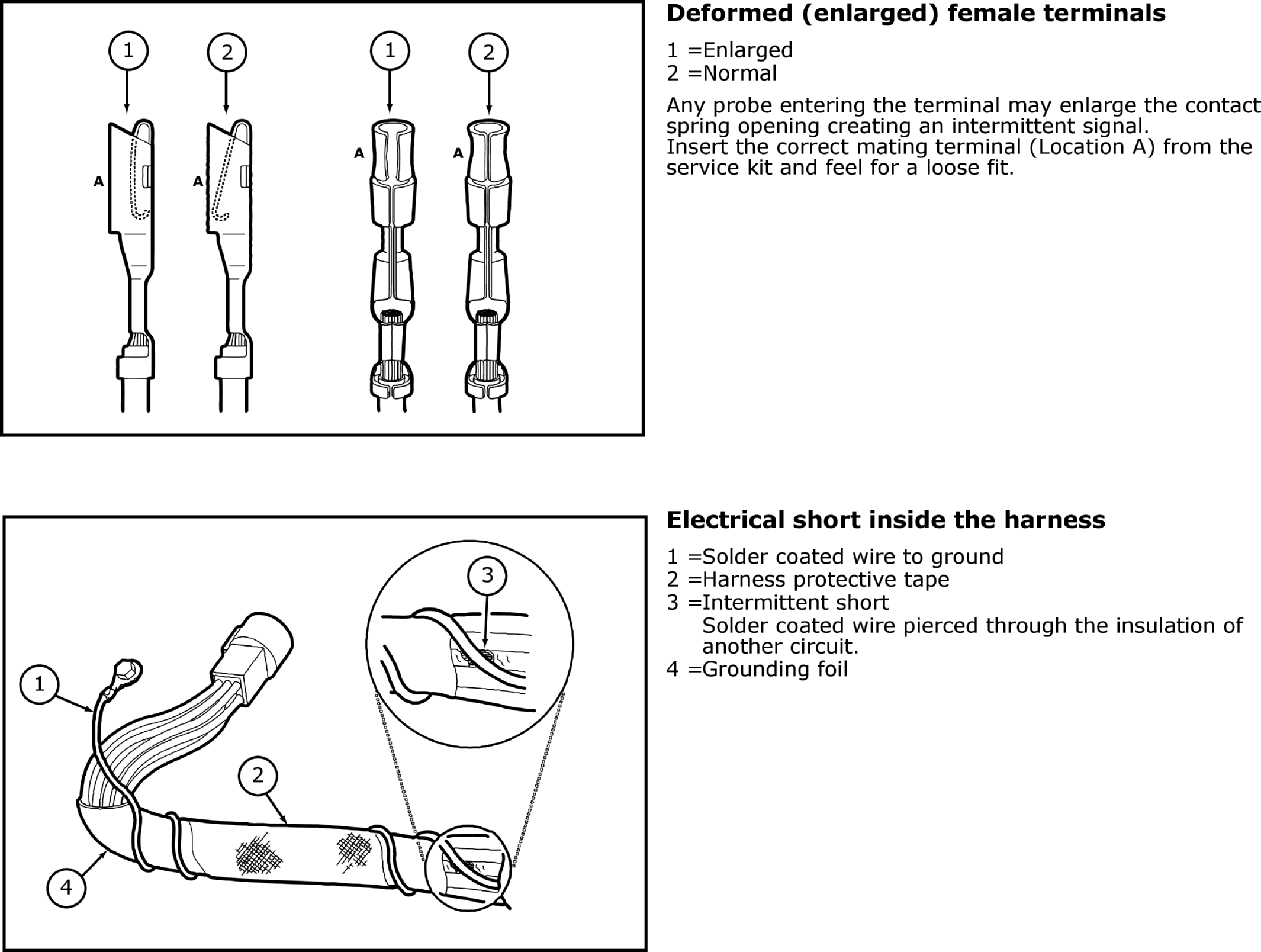

GFDW36608Courtesy of FORD MOTOR COMPANY

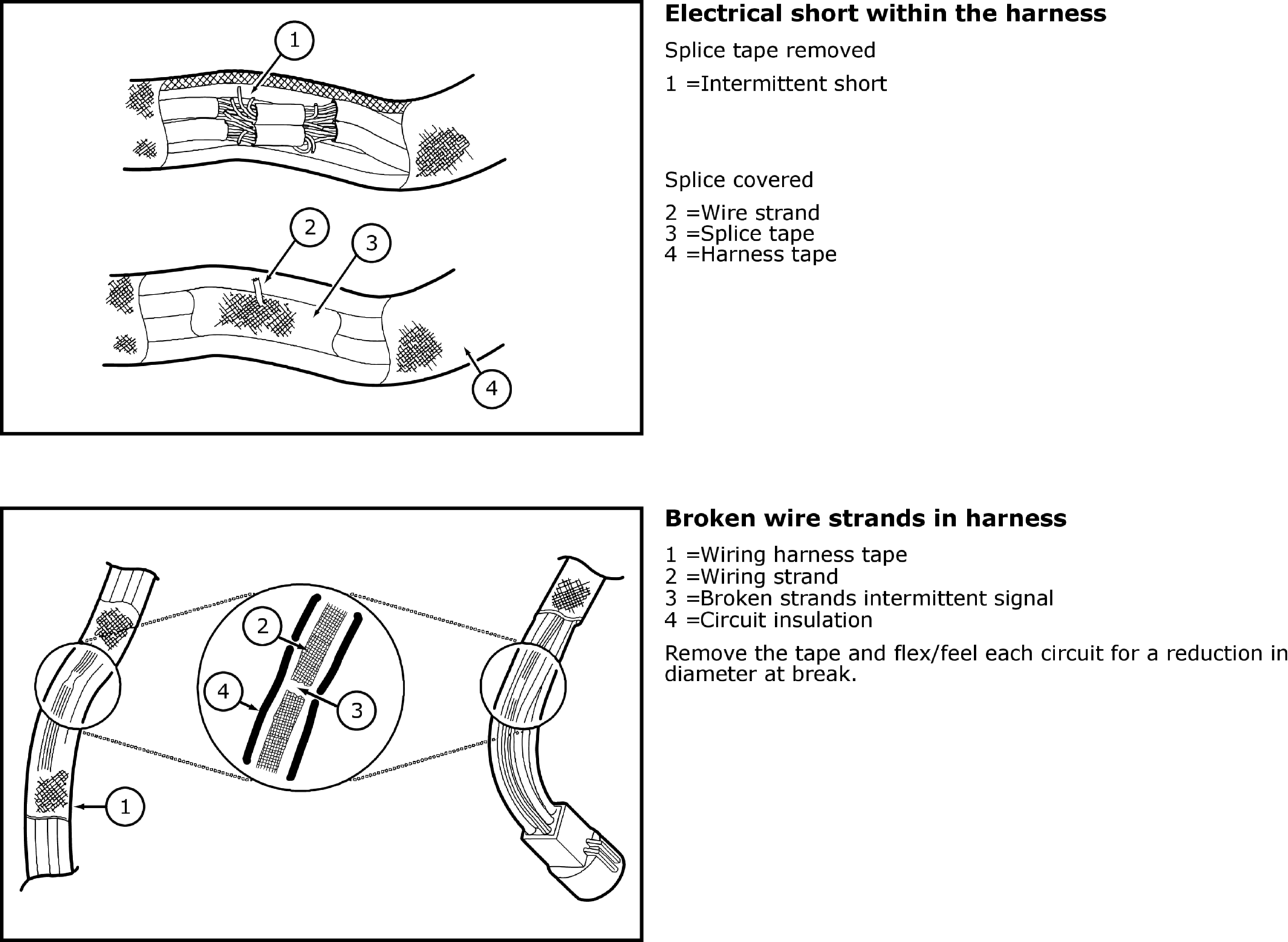

GFDW36609Courtesy of FORD MOTOR COMPANY

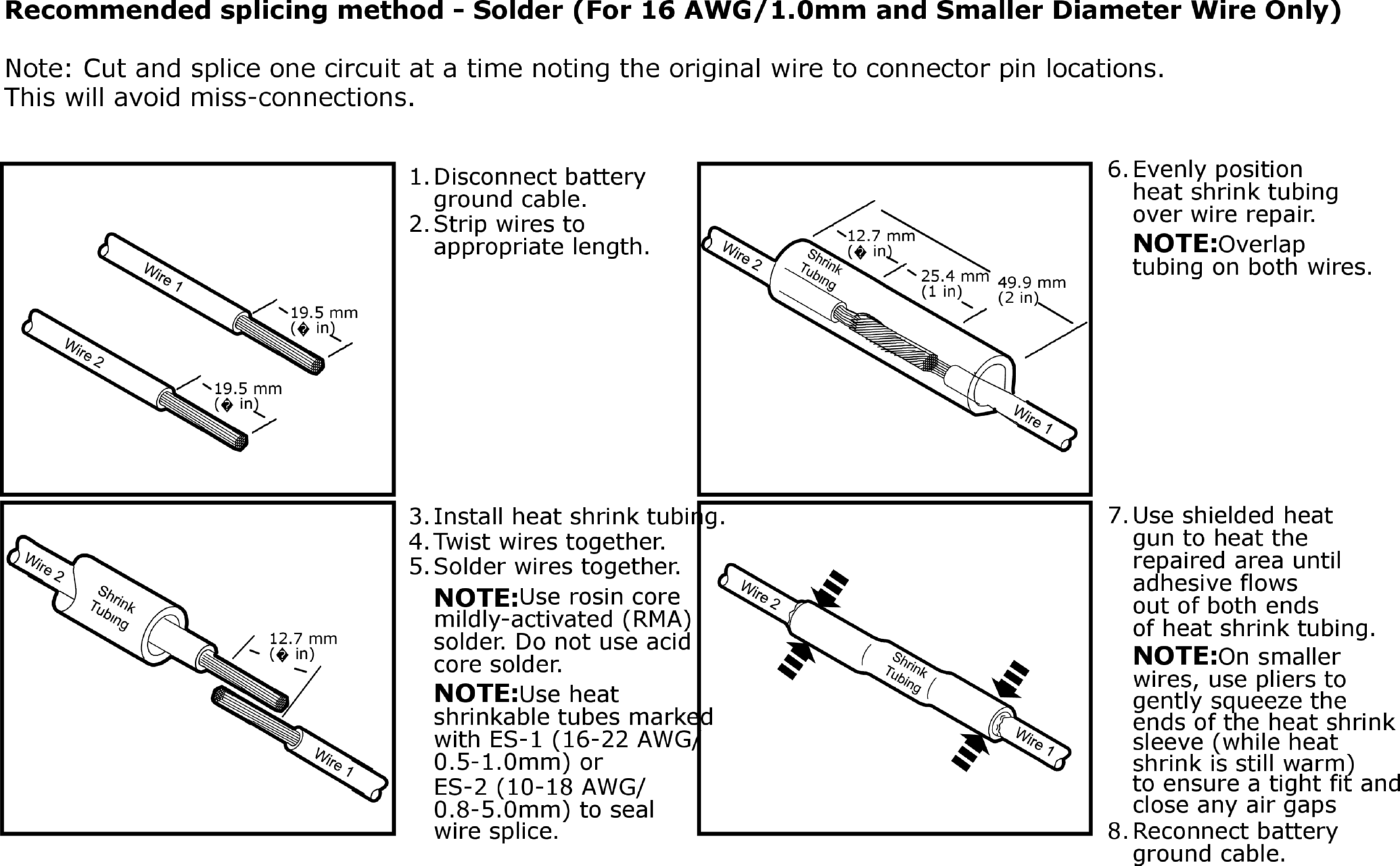

GFDW36610Courtesy of FORD MOTOR COMPANY

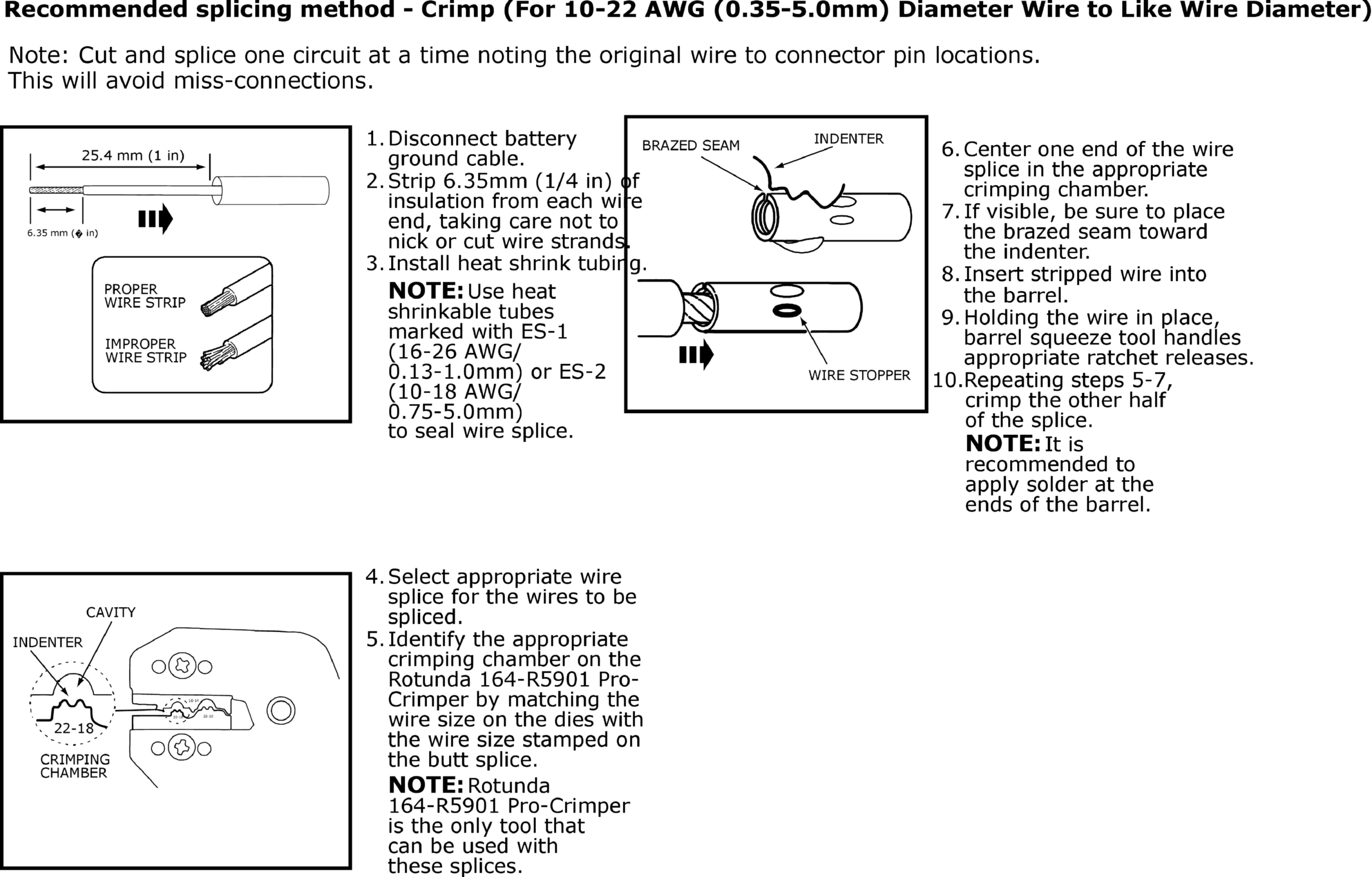

GFDW36611Courtesy of FORD MOTOR COMPANY

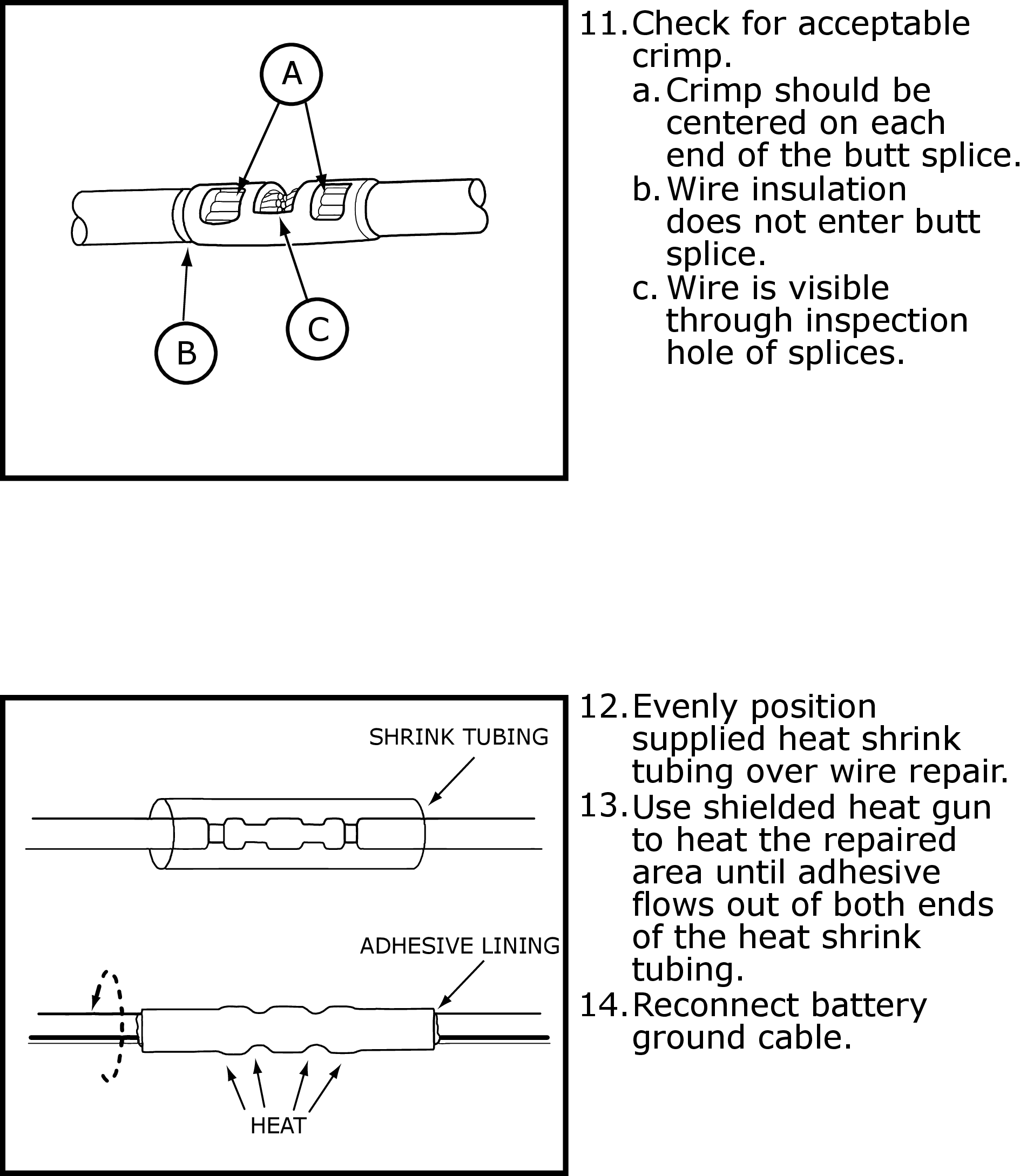

GFDW36612Courtesy of FORD MOTOR COMPANY

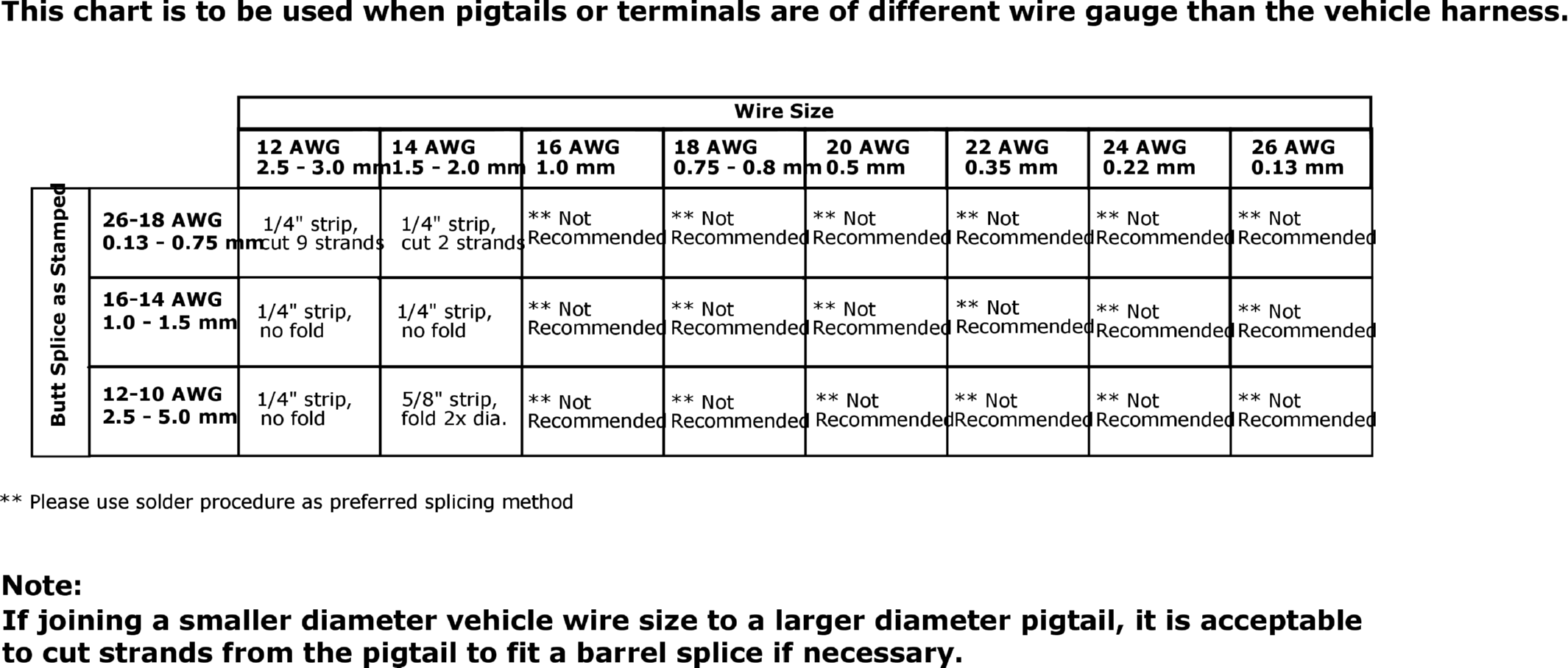

GFDW36613Courtesy of FORD MOTOR COMPANY
