Remote Function Actuator (RFA) Module: Removal
WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Upload the module configuration information from the Remote Function Actuator(RFA) module by following the scan tool on screen instructions.
NOTE:
Prior to the replacement of the module, it is necessary to upload the module configuration information to the scan tool. This information must be downloaded into the new module after installation. For additional information, refer to Module Configuration
.
NOTE:
This step is only necessary if the Remote Function Actuator(RFA) module is being replaced.
- 2.
Remove the LH side quarter trim panel. For additional information, refer to Interior Trim and Ornamentation .
- 3.

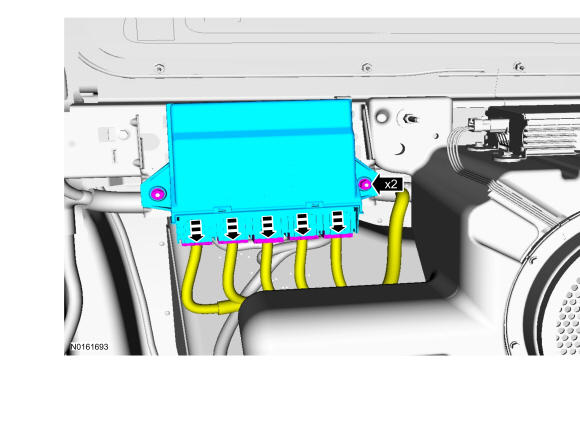

Remove the 2 nuts and the Remote Function Actuator(RFA) module.- 1.
Disconnect the electrical connectors.
- 1.
