Pump Assembly: Assembly

1.

NOTE: Prior to installation, lightly lubricate the pump gears with automatic transmission fluid.

Install the pump gears with the dot facing the pump plate assembly and install a new pump body outer seal. Lubricate the pump gears and the seal with automatic transmission fluid.

GFD31201

Courtesy of FORD MOTOR COMPANY

2.

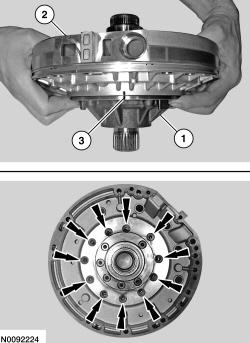

Align the marks made during disassembly to correctly assemble the pump. Press the pump body into the pump plate assembly. Visually inspect the pump body-to-pump plate assembly bolt holes to be sure that the pump body and pump plate are correctly aligned.
1. 1.

  Pump body
1. 2.

  Pump plate assembly
1. 3.

  Pump gear thrust surfaces

GFD31202

Courtesy of FORD MOTOR COMPANY

3.

Install the pump plate assembly-to-front pump body bolts.
- Tighten to 15 Nm (133 lb-in).

GFD31194

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Make sure that the seal ends of each seal ring are hooked together or fluid leakage can occur.

Install the 2 front pump seal rings onto the stator support. Make sure the seals are fully seated in the stator support seal grooves and the seal ends are oriented 180 degrees apart.

GFD31203

Courtesy of FORD MOTOR COMPANY

5.

Install the pump outer diameter front pump O-ring seal.

GFD31204

Courtesy of FORD MOTOR COMPANY

6.

Install a new front pump seal on the Fluid Pump Seal Installer 307-556.

GFD31205

Courtesy of FORD MOTOR COMPANY

7.

Using the Fluid Pump Seal Installer 307-556, install the front pump seal.

GFD31206

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Lightly lubricate the thrust washer with petroleum jelly to hold it in place during assembly.

Install the pump thrust washer.

GFD31207

Courtesy of FORD MOTOR COMPANY
