Removal And Installation

WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

1.
Using a diagnostic scan tool, begin the Programmable Module Installation (PMI) process for the Front Control/Display Interface Module (FCDIM) following the on-screen instructions.

2.

Remove the Audio Front Control Module(ACM). Refer to Audio Control Module (ACM) .

3.

Remove the two bolts and the Front Control/Display Interface Module(FCDIM).
- Disconnect the electrical connector.
- To install, tighten to 2.5 Nm (23 lb-in).

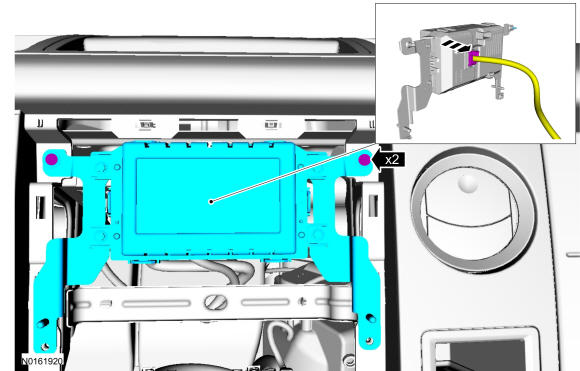

GFD31676

Courtesy of FORD MOTOR COMPANY

4.

To install, reverse the removal procedure.
- Using a diagnostic scan tool, complete the PMI process for the FCDIM following the on-screen instructions.
