Gearshift Module (GSM): Removal
NOTE:
It is not necessary to carry out a PMI when installing a new GSM unless specifically instructed to do so in a TSB, GSB, FSA or SSM.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the FCIM. REFER to: Front Controls Interface Module (FCIM) Without: THX Audio System . REFER to: Front Controls Interface Module (FCIM) Vehicles With: THX Audio System .

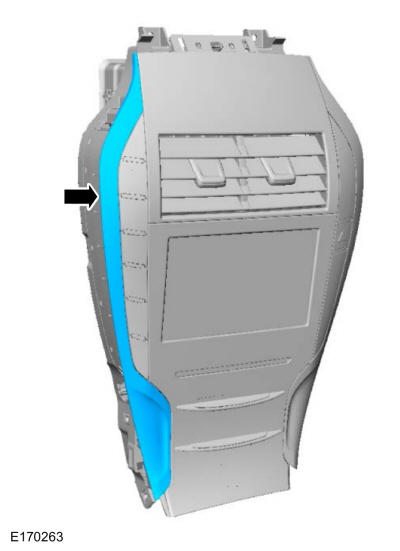

- Remove the trim panel.

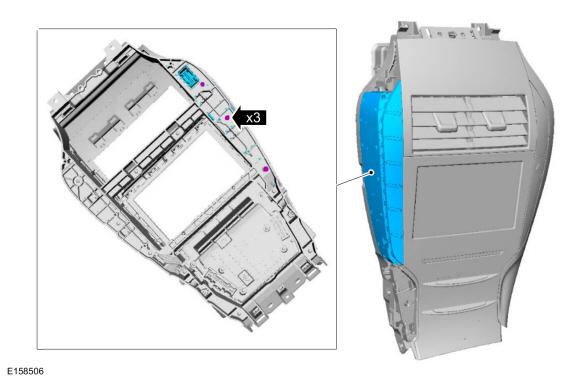

- Remove the screws and the GSM.
