Fuel Pump Module: Installation

All Vehicles

• 1.


  NOTE: The FP module must be handled carefully to avoid damage to the float arm.
  NOTE: Inspect the mating surfaces of the FP module flange and fuel tank O-ring seal contact surfaces. Wipe clean with a lint free towel. Install a new FP module or fuel tank if the O-ring seal contact area is bent, scratched or corroded.
  NOTE: Sweep the float arm to ensure freedom of travel.
  NOTE: Make sure to install a new FP module O-ring seal.

  Install a new O-ring seal.

• 2.

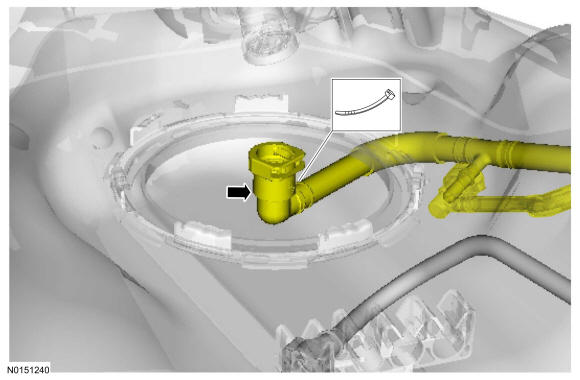

  Loosely install a 12" (minimum length) zip-tie to the internal fuel tube at the quick connect coupling. Leave the tail of the zip tie on to allow the tube to be retrieved while the FP module is being installed.

Courtesy of FORD MOTOR COMPANY

• 3.

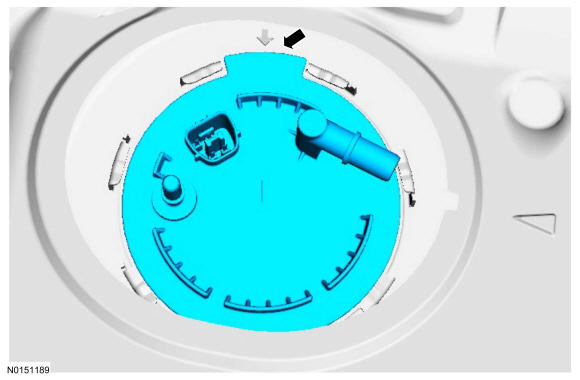

  NOTE: Make sure the alignment tab on the FP module and the fuel tank meet before tightening the FP module lock ring.

  Install the FP module by inserting the float rod through the Fuel Tank opening. Connect the transfer tube quick connect coupling at the bottom of the FP module, if equipped. Then, use the zip tie to help retrieve and connect the internal fuel tube to the FP module as it is installed into the fuel tank. Pull on the fuel tube connection to make sure it is connected securely. For additional information, refer to Fuel System - General Information . Remove the zip tie.

Courtesy of FORD MOTOR COMPANY

• 4.


  NOTE: Install a new lock ring if it is bent, damaged or corroded.
  NOTE: Carefully install the Fuel Tank Sender Unit Wrench to avoid damaging the FP module when tightening the lock ring.

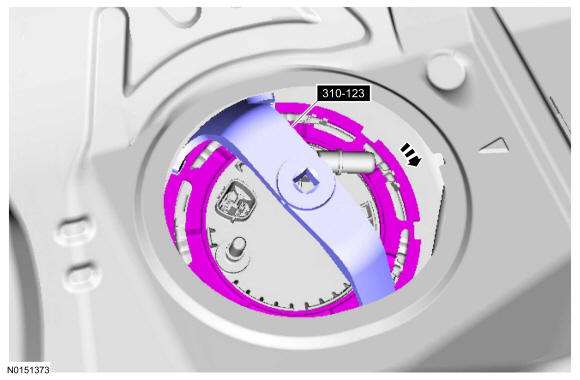

  Install the Fuel Tank Sender Unit Wrench and tighten the fuel tank lock ring by turning clockwise.

Courtesy of FORD MOTOR COMPANY

• 5.

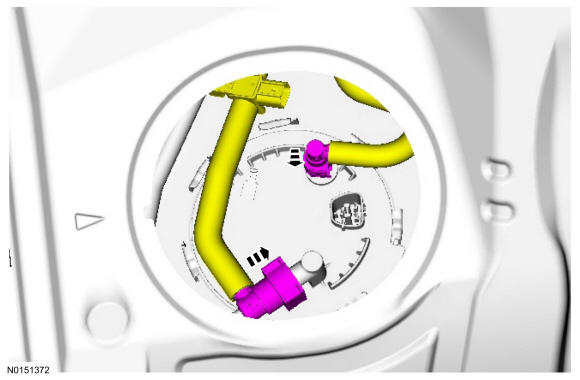

  Connect the fuel tank quick connect couplings. For additional information, refer to Fuel System - General Information .

Courtesy of FORD MOTOR COMPANY

• 6.

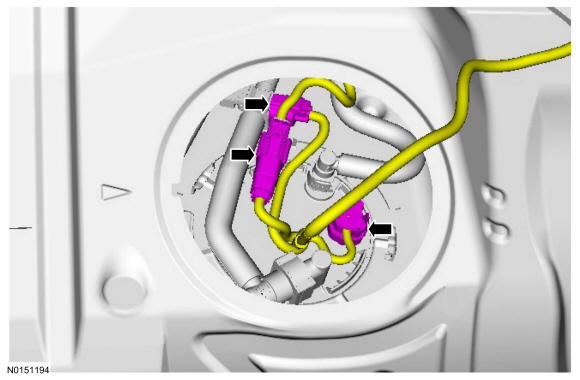

  Connect the FP module electrical connector.

Courtesy of FORD MOTOR COMPANY

• 7.

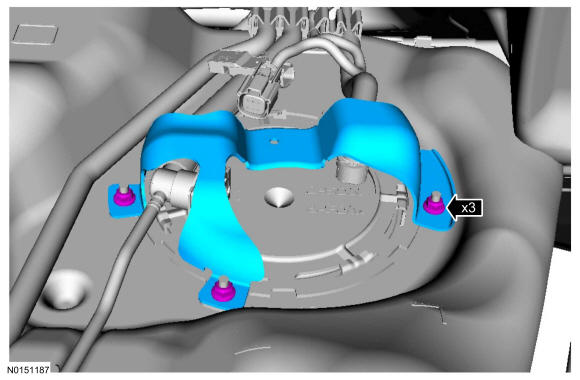

  If equipped, install the FP module shield.
  • To install, tighten to 9 Nm (80 lb-in).

Courtesy of FORD MOTOR COMPANY

• 8.

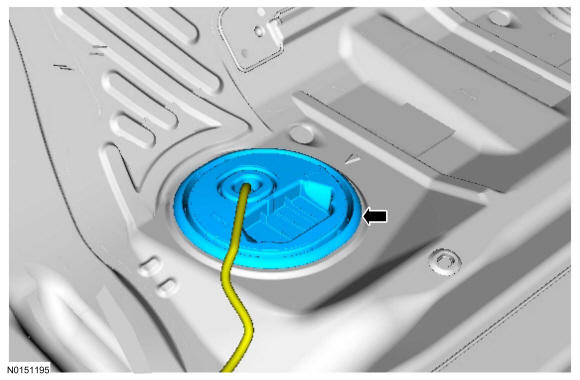

  Install the Fuel Pump (FP) module access cover.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with Police Package

• 9.

  Hand tighten only.

Courtesy of FORD MOTOR COMPANY

• 10.

  Tighten to 55 Nm (41 lb-ft).

Courtesy of FORD MOTOR COMPANY

All Vehicles

• 11.

  Install the rear seat lower cushion. For additional information, refer to Seating .

• 12.

  Connect the battery ground cable. For additional information, refer to Battery, Mounting and Cables .
