Interior Lighting Control Module (ILCM): Notes
WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

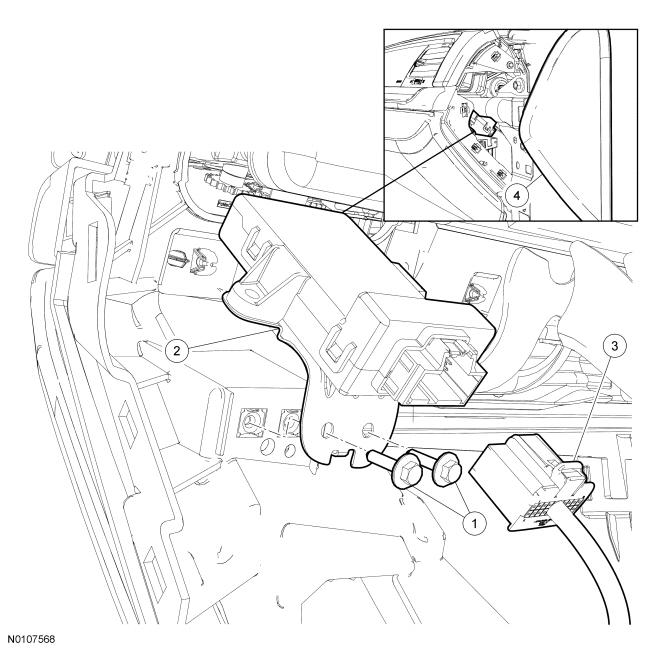

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Interior Lighting Control Module (ILCM) screws (2 required) |
| 2 | 13E702 | ILCM |
| 3 | - | ILCM electrical connector (part of 13E720) |
| 4 | 5404334 | Instrument panel side finish panel |
