Torque Converter Housing: Notes

SPECIAL TOOL(S)

GFD88740Courtesy of FORD MOTOR COMPANY
 Bearing Cup Installer 307-576
GFD88741Courtesy of FORD MOTOR COMPANY
 Differential Bearing Cup Remover 307-586
GFD88742Courtesy of FORD MOTOR COMPANY
 Drawbar (Heavy Duty Threaded) 204-029 (T77F-1176)
GFD86909Courtesy of FORD MOTOR COMPANY
 Handle 205-153 (T80T-4000-W)
GFD88743Courtesy of FORD MOTOR COMPANY
 Installer, Transfer Gear Bearing 307-541
GFD88744Courtesy of FORD MOTOR COMPANY
 Oil Dam Seal Installer 307-583
GFD88730Courtesy of FORD MOTOR COMPANY
 Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C)
GFD88745Courtesy of FORD MOTOR COMPANY
 Shim Gauge, Differential/Transfer Gear Bearing 307-591 (includes 307-591/1, 307-591/2 and 307-591/3)
GFD88746Courtesy of FORD MOTOR COMPANY
 Transfer Gear Bearing Race Remover 307-577

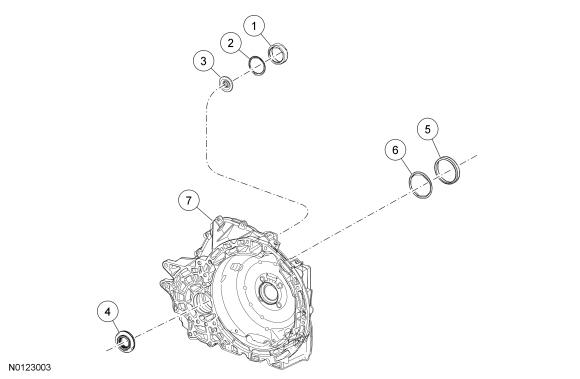

Exploded View

GFD88747Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 7H344 Transfer shaft roller bearing cup
2 7H367 Transfer shaft roller bearing shim
3 7L276 Transfer shaft tube fluid dam
4 1177 Halfshaft seal (FWD only)
5 4222 Differential bearing cup
6 4222 Differential roller bearing shim
7 7005 Torque converter housing
