Transaxle Case: Assembly

  1. 1.

    Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
GFD88766Courtesy of FORD MOTOR COMPANY

  1. 2.

    Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
GFD88783Courtesy of FORD MOTOR COMPANY

  1. 3.

    Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transmission case. Visual check.
GFD88784Courtesy of FORD MOTOR COMPANY

  1. 4.

    Special Tool(s): Bearing Cup Installer 307-576 General Equipment: Shop Press
GFD88785Courtesy of FORD MOTOR COMPANY

  1. 5.

    Special Tools(s): Bearing Cup Installer 307-689
GFD88786Courtesy of FORD MOTOR COMPANY

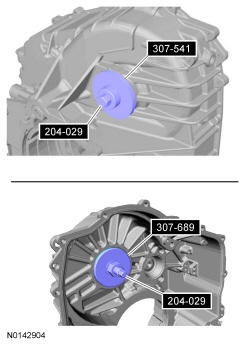

  1. 6.

    Special Tool(s): Bearing Cup Installer 307-689, Installer, Transfer Gear Bearing 307-541, Drawbar 204-029
GFD88787Courtesy of FORD MOTOR COMPANY

  1. 7.

GFD88782Courtesy of FORD MOTOR COMPANY

  1. 8.

GFD88781Courtesy of FORD MOTOR COMPANY

  1. 9.

GFD88780Courtesy of FORD MOTOR COMPANY

  1. 10.

    • Tighten to 12 Nm (106 lb-in).
GFD88779Courtesy of FORD MOTOR COMPANY

  1. 11.

    Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim. Refer to Torque Converter Housing .
