Side Obstacle Detection (SOD) Module: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

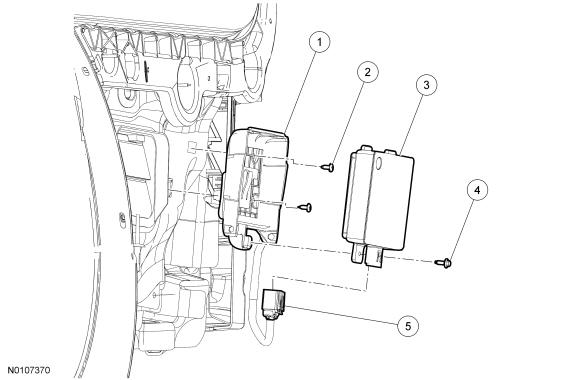

Left rear quarter panel shown in illustration, right side similar. Rear bumper cover removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14D189/ 14D190/ 14D190 | Side Obstacle Detection Control Module - Right (SOD-R) /Side Obstacle Detection Control Module - Left (SOD-L) bracket |
| 2 | W705247 | SOD-L /SOD-R bracket screws (2 required) |
| 3 | 14C689 | SOD-L /SOD-R |
| 4 | W503901 | SOD-L /SOD-R screw and washer |
| 5 | - | SOD-L /SOD-R electrical connector (part of 14A005) |
