Removal And Installation: Refrigerator: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

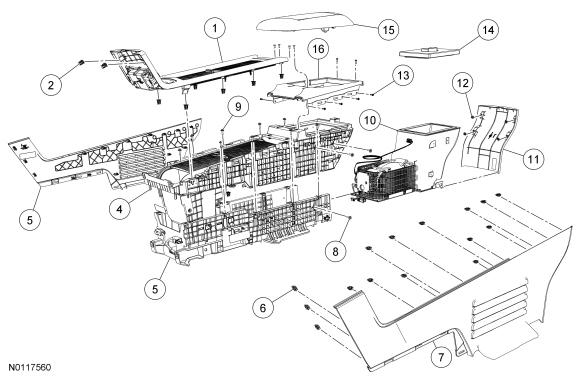

| Item | Part Number | Description |
|---|---|---|
| 1 | 04567 | Floor console upper finish panel |
| 2 | W710338 | Floor console upper finish panel retaining clip (10 required) |
| 3 | 04608 | RH floor console rear side trim panel |
| 4 | 045A90A | Upper panel |
| 5 | 045A90B | Lower panel |
| 6 | W790178 | Side trim panel clips (15 required per side) |
| 7 | 04609 | LH floor console rear side trim panel |
| 8 | W707628 | Refrigerator side screws (6 required) |
| 9 | W707628 | Upper-to-lower panel screws (10 required) |
| 10 | 045A36 | Refrigerator |
| 11 | 045E24 | Floor console rear finish panel |
| 12 | W710338 | Rear finish panel clips (4 required) |
| 13 | W707628 | Refrigerator opening trim panel screw (10 required) |
| 14 | 044C72 | Refrigerator lid |
| 15 | 06024 | Rear armrest |
| 16 | 061B22 | Refrigerator opening trim panel |
