Wheel Speed Sensor - Rear: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

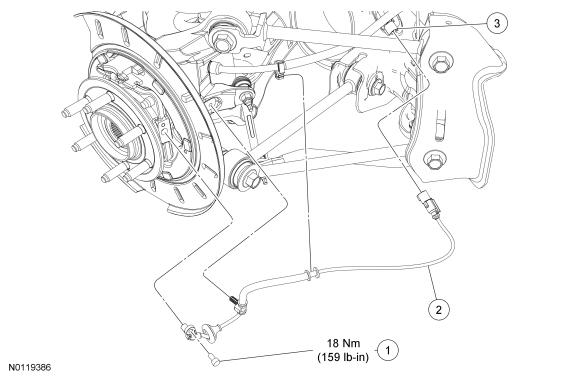

Fig 1: Rear Wheel Speed Sensor With Torque Specifications
GFD30404Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Rear wheel speed sensor bolt (part of 2C190)
2 2C190 Rear wheel speed sensor
3 - Body harness electrical connector (part of 14A464)
