Seat - Third Row: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

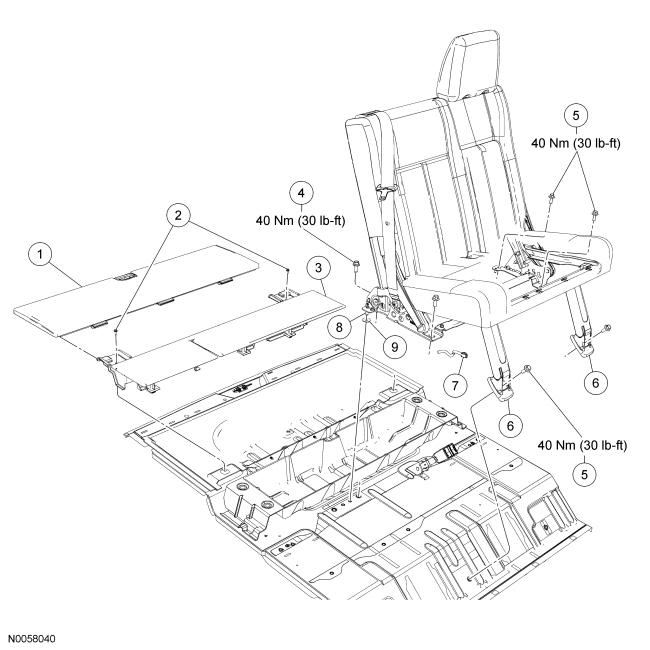

60 percent seat shown, 40 percent seat similar.
NOTE:
For torque specifications and torque sequence, refer to the procedure steps.
| Item | Part Number | Description |
|---|---|---|
| 1 | Load floor panel | |
| 2 | Mid-floor panel support bolts | |
| 3 | Mid-floor panel support | |
| 4 | Seat-to-floor bolt, rear inboard | |
| 5 | Seat-to-floor bolts (5 required) | |
| 6 | Seat-to-floor bolt front covers (2 required) | |
| 7 | - | Electrical connector (part of 13A409) |
| 8 | - | Locator pin (part of 600M47) |
| 9 | Gasket (2 required) | |
