Disassembly And Assembly: Axle: Assembly
WARNING: This page is about a different variant/trim than selected.
- 1.
If removed, position the baffle on the Drive Carrier Bearings Installer.
NOTE:
Do not omit the pinion bearing oil baffle; bearing failure may result.
- 3.
Lightly oil the new pinion bearing cups and pinion bearings with front axle lubricant.
NOTE:
Always install new pinion bearings when installing new pinion bearing cups.
- 5.

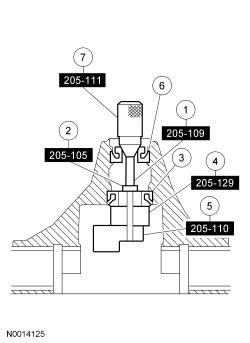

Assemble and position the Adapters and the pinion bearings in the carrier housing.- 1.
Position the screw adapter.
- 2.
Position the aligning adapter.
- 3.
Position the pinion bearing.
- 4.
Position the gauge disc adapter.
- 5.
Position the gauge block adapter.
- 6.
Position the pinion bearing.
- 7.
Thread on the handle adapter.
- 1.
NOTE:
The pinion bearings assembled in this procedure step must be used at final assembly.
- 6.
Tighten the Adapter to simulate bearing preload.- Tighten to 2.2 Nm (20 lb-in).
NOTE:
This step duplicates final pinion bearing preload.
- 7.
Rotate the gauge block Adapter several half-turns to make sure the pinion bearings seat correctly and position the gauge block adapter.
NOTE:
Offset the gauge block adapter to obtain an accurate reading.
- 8.
Install the Drive Pinion Gauge Tube.- 1.
Position the Drive Pinion Gauge Tube.
- 2.
Install the 2 differential bearing caps.
- 3.
Install the 4 bolts.
- Tighten to 105 Nm (77 lb-ft).
- 1.
- 9.
Use a drive pinion bearing adjustment shim as a gauge for shim selection.- Check the adjustment shim thickness between the gauge block adapter and the gauge tube adapter.
- After determining the correct shim thickness, remove the Drive Pinion Gauge Tube.
NOTE:
Do not attempt to force the shim between the gauge block adapter and the gauge tube adapter. A slight drag indicates correct shim selection.
NOTE:
Use only flat, clean drive pinion bearing adjustment shims.
- 10.
Install the pinion bearing.- Place the drive pinion bearing adjustment shim on the pinion gear.
- Using a suitable press and the Drive Pinion Bearing Cone Installer, press the pinion bearing until it is firmly seated on the pinion gear.
NOTE:
The same pinion bearings from the previous steps must be used.
- 15.
Place the pinion seal on the Drive Pinion Oil Seal Installer.
NOTE:
Coat the lips of the pinion seal with front axle lubricant.
- 16.
Place the Drive Pinion Oil Seal Installer and seal in the pinion seal bore and drive the seal into place.
- 19.
Align the index marks and position the U-joint flange on the drive pinion.
NOTE:
Disregard the scribe marks if installing a new flange.
NOTE:
Never install the drive pinion U-joint flange with a hammer or power tools.
- 22.
Install the Drive Pinion Flange Holding Fixture and tighten the pinion nut. Refer to the Torque Specifications in the Specifications portion of this article.- Rotate the pinion gear occasionally to make sure the pinion bearings are seating correctly. Take frequent pinion bearing torque preload readings by rotating the pinion gear with a Nm (lb-in) torque wrench.
NOTE:
Do not loosen the pinion nut to reduce preload under any circumstance. If it is necessary to reduce preload, install a new drive pinion collapsible spacer and pinion nut or damage to the component may occur.
- 24.
Install the differential ring gear.- 1.
Place the differential ring gear on the differential assembly.
- 2.
Hand-start 3 ring gear bolts to align the holes in the differential ring gear and the differential assembly.
- 3.
Place the differential carrier and differential ring gear onto the press bed blocks with the differential gear teeth facing downward.
- 4.
Press the differential ring gear into place.
- 1.
- 26.
Using a suitable press and the Differential Side Bearing Installer, install the differential bearings.- 1.
Position the appropriate differential bearing (RH or LH).
- 2.
Using a suitable press and the Differential Side Bearing Installer, install the differential bearing.
- Repeat the procedure for the other differential bearing.
- 1.
NOTE:
Press against the bearing inner core only.
- 27.
Install the differential carrier.- 1.
Position the differential bearing cups on the differential bearings.
- 2.
Lower the differential carrier in place.
- 1.
- 28.
Install a differential bearing shim of the thickness shown on the LH side of the differential bearing.
- 29.
Install the left bearing cap and loosely install the 2 bearing cap bolts.
NOTE:
Apply pressure to the left side to make sure the left bearing cup is seated.
- 30.
Install progressively thicker differential bearing shims on the right side until the thickest differential bearing shim can be inserted by hand.
- 35.
Using the Dial Indicator Gauge with Holding Fixture and the Clutch Housing Gauge, measure the ring gear backlash at 4 places to obtain a consistent reading.
- 36.
To increase the backlash, install a thicker differential bearing shim and a thinner differential bearing shim as shown.
NOTE:
If the backlash is not within the specifications, correct it by increasing the thickness of one differential bearing shim and decreasing the thickness on the other differential bearing shim by the same amount.
- 37.
To decrease the backlash, install a thicker differential bearing shim and a thinner differential bearing shim as shown.
- 38.
Select the appropriate shim by the thickness or the stripe color.Backlash Change Required Thickness Change Required mm Inch mm Inch 0.025 0.001 0.050 0.002 0.050 0.002 0.050 0.002 0.076 0.003 0.101 0.004 0.101 0.004 0.152 0.006 0.127 0.005 0.152 0.006 0.152 0.006 0.203 0.008 0.177 0.007 0.254 0.010 0.203 0.008 0.254 0.010 0.228 0.009 0.304 0.012 0.254 0.010 0.355 0.014 0.279 0.011 0.355 0.014 0.304 0.012 0.406 0.016 0.330 0.013 0.457 0.018 0.335 0.014 0.457 0.018 0.381 0.015 0.508 0.020 Differential Shim Size Chart
Stripes/Color mm Inch 2 - C-COAL 7.7978-7.8105 0.3070-0.3075 1 - C-COAL 7.7470-7.7597 0.3050-0.3055 5 - BLU 7.6962-7.7089 0.3030-0.3035 4 - BLU 7.6454-7.6581 0.3010-0.3015 3 - BLU 7.5946-7.6073 0.2990-0.2995 2 - BLU 7.5458-7.5565 0.2970-0.2975 1 - BLU 7.4930-7.5050 0.2950-0.2955 5 - PINK 7.4422-7.4549 0.2930-0.2935 4 - PINK 7.3914-7.4041 0.2910-0.2915 3 - PINK 7.3406-7.3533 0.2890-0.2895 2 - PINK 7.2898-7.3025 0.2870-0.2875 1 - PINK 7.2390-7.2517 0.2850-0.2855 5 - GRN 7.1882-7.2009 0.2830-0.2835 4 - GRN 7.1374-7.1501 0.2810-0.2815 3 - GRN 7.0866-7.0993 0.2790-0.2795 2 - GRN 7.0358-7.0485 0.2770-0.2775 1 - GRN 6.9850-6.9977 0.2750-0.2755 5 - WH 6.9342-6.9469 0.2730-0.2735 4 - WH 6.8834-6.8961 0.2710-0.2715 3 - WH 6.8326-6.8453 0.2690-0.2695 2 - WH 6.7818-6.7945 0.2670-0.2675 1 - WH 6.7310-6.7437 0.2650-0.2655 5 - YEL 6.6802-6.6929 0.2630-0.2635 4 - YEL 6.6294-6.6421 0.2610-0.2615 3 - YEL 6.5786-6.5913 0.2590-0.2595 2 - YEL 6.5278-6.5405 0.2570-0.2575 1 - YEL 6.4770-6.4897 0.2550-0.2555 5 - ORNG 6.4262-6.4389 0.2530-0.2535 4 - ORNG 6.3754-6.3881 0.2510-0.2515 3 - ORNG 6.3246-6.3373 0.2490-0.2495 2 - ORNG 6.2738-6.2865 0.2470-0.2475 1 - ORNG 6.2223-6.2357 0.2450-0.2455 2 - RED 6.1722-6.1849 0.2430-0.2335 1 - RED 6.1214-6.1341 0.2410-0.2415
- 41.
To establish differential bearing preload, increase both the left and right differential bearing shim thickness by 0.203 mm (0.008 in).
- 42.
Install the Dial Indicator Gauge with Holding Fixture, Clutch Housing Gauge and Differential Carrier Spreader.
- 43.
Spread the differential housing to the specification.- 1.
Adjust the Dial Indicator Gauge to zero.
- 2.
Tighten the screw until spreading the differential housing to the specifications.
- 3.
Remove the Dial Indicator Gauge with Holding Fixture and Clutch Housing Gauge.
- 1.
NOTE:
Tighten and loosen the differential carrier spreader adapters to normalize the housing adapters prior to taking the final Dial Indicator reading.
NOTE:
Overspreading may damage the differential housing.
- 44.
Place the differential bearing shims in the differential housing.
NOTE:
To avoid galling the case, insert the shims with a light coating of grease before installing the differential carrier.
- 45.
Install the differential carrier.- 1.
Position the 2 differential bearing cups on the differential bearings.
- 2.
Lower the differential carrier in place between the differential bearing shims.
- 1.
- 46.
Install the 2 differential bearing caps and 4 bolts in their original location.
NOTE:
Hand-tighten the differential bearing cap bolts prior to releasing the Differential Carrier Spreader.
- 49.
Using the Dial Indicator Gauge with Holding Fixture and Clutch Housing Gauge, recheck the ring gear backlash.
- 52.
Assemble the axle housing tube.- Align the bolt holes and position the axle tube.
- Position the axle identification tag.
- Install the 4 bolts.
- Tighten to 73 Nm (54 lb-ft).
- 53.
Install a new stub shaft seal. Refer to Stub Shaft Pilot Bearing and Seal .
- 57.
Apply a continuous bead of sealant, of the specified thickness, to the differential housing cover mounting surface as shown in the illustration.- Use silicone gasket and sealant.
NOTE:
The differential housing cover must be installed within 15 minutes of application of the silicone, or new sealant must be applied. If possible, allow one hour before filling with lubricant to make sure the silicone sealant has correctly cured.
NOTE:
Remove all of the silicone gasket and make sure the surfaces are free of oil before applying the new silicone gasket.
- 59.
Install the axle assembly. Refer to Axle Assembly .
