Overdrive Clutch Assembly: Notes
SPECIAL TOOL(S)
| Compressor, Spring Washer 307-209 | |
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent | |
| End Play Gauge, Clutch 307-555 | |
| Installer, Teflon Seal 307-716 |
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) | MERCON® LV |

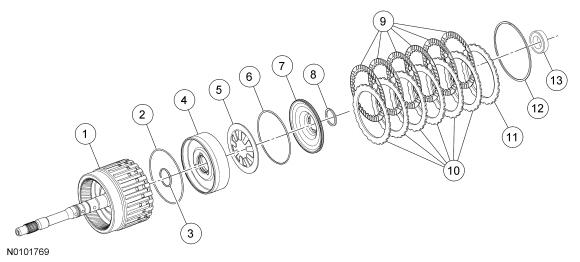

Overdrive (O/D) Clutch Assembly
| Item | Part Number | Description |
|---|---|---|
| 1 | 7F207 | Input shaft |
| 2 | 7A548 | O/D clutch piston outer seal |
| 3 | 7A548 | O/D clutch piston inner seal |
| 4 | 7A262 | O/D clutch piston |
| 5 | 7B070 | O/D clutch piston spring |
| 6 | 7A548 | O/D balance piston outer seal |
| 7 | 7H360 | O/D balance piston |
| 8 | 7C122 | O/D balance piston snap ring |
| 9 | 7B164 | O/D clutch internal splined clutch friction plates (quantity model dependent) |
| 10 | 7B442 | O/D clutch external splined clutch steel plates (quantity model dependent) |
| 11 | 7B066 | O/D pressure plate |
| 12 | 7D483 | O/D clutch retaining ring |
| 13 | 7C096 | Bearing T3 |
