Fuel Pump Driver Module (FPDM): Installation

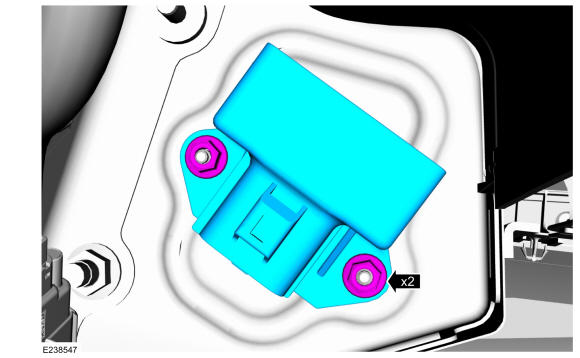

  1. Install the FPDM, then install and tighten the FPDM retaining nuts.

    Torque: 13 lb.in (1.5 Nm)

    GFD236332Courtesy of FORD MOTOR COMPANY

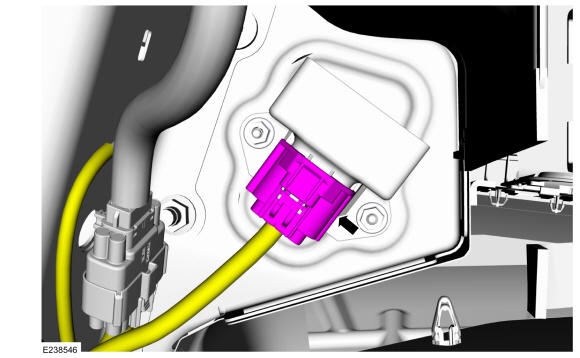

  2. Connect the FPDM electrical connector.
    GFD236331Courtesy of FORD MOTOR COMPANY

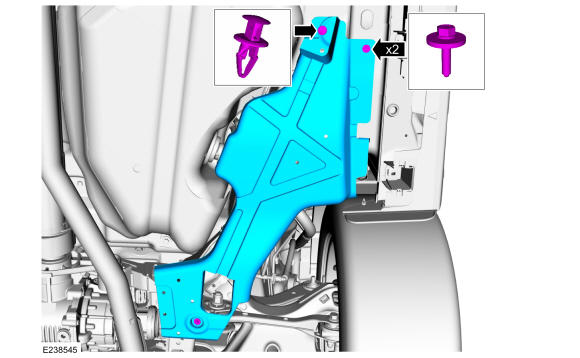

  3. Install the right rear air deflector, install the pushpin, then install and tighten the right rear air deflector retainers.

    Torque: 13 lb.in (1.5 Nm)

GFD236330Courtesy of FORD MOTOR COMPANY
