Gateway Module A (GWM): Removal

WARNING: This page is about a different car, the 2016 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the GWM following the on-screen instructions.

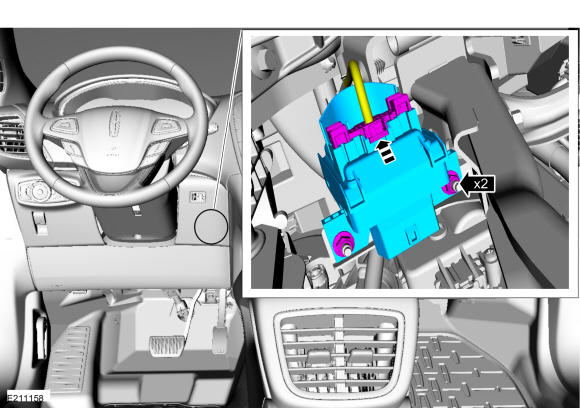

NOTE: Access to GWM nuts.

Remove the upper and lower steering column shrouds. Refer to: Steering Column Shrouds .
Remove the nuts and the GWM.
- Disconnect the electrical connector.
  Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
