Rear Heating Ventilation Air Conditioning (RHVAC) Module: Notes
WARNING: This page is about a different car, the 2016 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

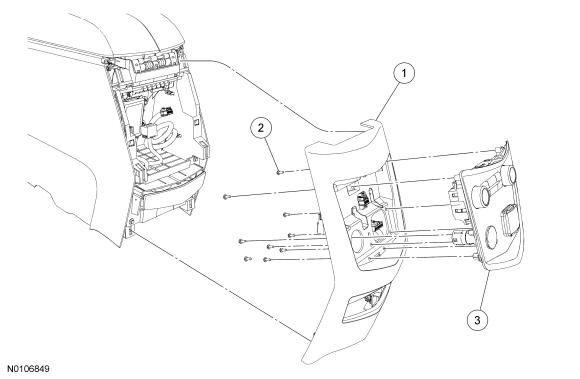

Vehicles With Short Floor Console
| Item | Part Number | Description |
|---|---|---|
| 1 | 74045E24 | Floor console rear trim panel |
| 2 | W506943 | Rear Heating Ventilation Air Conditioning (RHVAC) module screw (9 required) |
| 3 | 19980 | RHVAC module |

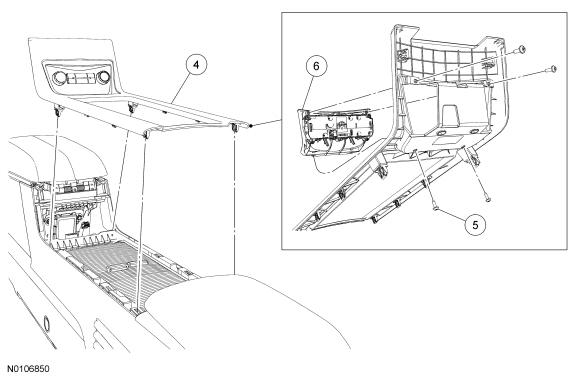

Vehicles With Long Floor Console
| Item | Part Number | Description |
|---|---|---|
| 4 | 7404567 | Rear floor console upper trim panel |
| 5 | W506943 | Rear Heating Ventilation Air Conditioning (RHVAC) module screw (4 required) |
| 6 | 19980 | RHVAC module |
