Transaxle Case: Assembly

  1. Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
    GFD93466Courtesy of FORD MOTOR COMPANY
  2. Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
    GFD93483Courtesy of FORD MOTOR COMPANY
  3. Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transmission case. Visual check.
    GFD93484Courtesy of FORD MOTOR COMPANY
  4. Special Tool(s): Bearing Cup Installer 307-576General Equipment: Shop Press
    GFD93485Courtesy of FORD MOTOR COMPANY
  5. Special Tools(s): Bearing Cup Installer 307-689
    GFD93486Courtesy of FORD MOTOR COMPANY

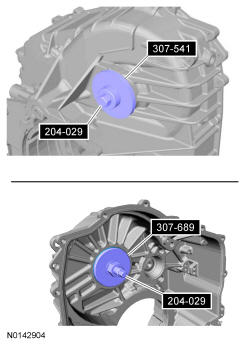

  6. Special Tool(s): Bearing Cup Installer 307-689, Installer, Transfer Gear Bearing 307-541, Drawbar 204-029
    GFD93487Courtesy of FORD MOTOR COMPANY
  7. GFD93482Courtesy of FORD MOTOR COMPANY
  8. GFD93481Courtesy of FORD MOTOR COMPANY
  9. GFD93480Courtesy of FORD MOTOR COMPANY
    • Tighten to 12 Nm (106 lb-in).
    GFD93479Courtesy of FORD MOTOR COMPANY
  11. Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim. Refer to Torque Converter Housing .
