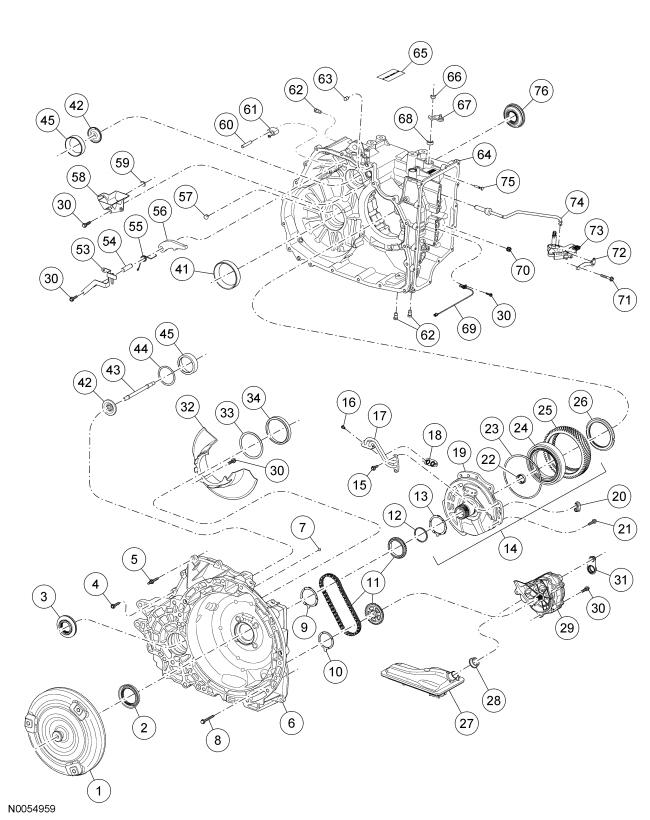

Exploded Views Of Transaxle
Disassembled Views
| Item | Part Number | Description |
|---|---|---|
| 1 | 7902 | Torque converter assembly |
| 2 | 7F401 | Seal assembly - converter hub |
| 3 | 1177 | Seal assembly - transmission differential (front) |
| 4 | 7J287 | Bolt - M8 x 30 (converter housing) |
| 5 | W704941 | Studbolt - M8 x 30 (converter housing) |
| 6 | 7005 | Torque converter housing |
| 7 | 7H389 | Plug - transmission orifice cup |
| 8 | W711931 | Bolt - torque converter housing |
| 9 | 7G099 | Washer - drive sprocket thrust |
| 10 | 7G273 | Washer - driven sprocket support thrust |
| 11 | 7G249 | Sprocket and chain assembly - pump |
| 12 | 7L323 | Seal - support assembly-to-torque converter |
| 13 | 7D014 | Washer - stator support thrust |
| 14 | 7A108 | Support and gear assembly - stator |
| 15 | 7J284 | Bolt - hex-head stator support feed tube |
| 16 | 7J330 | Bolt - Torx ®-head stator support feed tube |
| 17 | 7N147 | Transmission fluid feed tube assembly - stator support |
| 18 | 7J246 | Gasket - feed tube |
| 19 | 7F363 | Support assembly - torque converter reactor |
| 20 | 7J246 | Seal - stator support assembly |
| 21 | 7J285 | Bolt - M8 x 25 |
| 22 | 7048 | Seal assembly - input shaft |
| 23 | 7N281 | Ring - input bearing retainer |
| 24 | 7A452 | Bearing assembly - main drive gear front |
| 25 | 7F342 | Gear - final drive input |
| 26 | 7B364 | Nut - bearing retainer |
| 27 | 7A098 | Filter - transmission fluid |
| 28 | 7Z302 | Seal - transmission fluid filter |
| 29 | 7A103 | Pump assembly - transmission fluid |
| 30 | 7J283 | Bolts - M6 x 25 |
| 31 | 7A248 | Seal - pump |
| 32 | 7978 | Baffle - sump |
| 33 | 4067 | Shim - transmission differential bearing |
| 34 | 4222 | Cup - differential bearing |

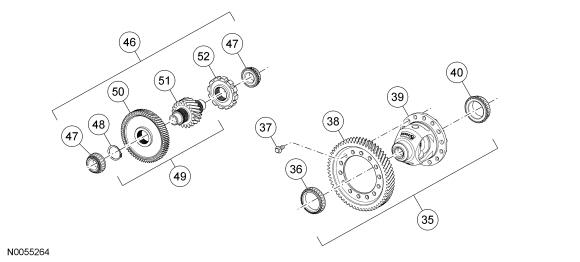

| 35 | 7F465 | Differential and gear assembly |
| 36 | 4221 | Bearing - differential assembly |
| 37 | 7J286 | Bolt - M10 x 25 |
| 38 | 7F343 | Gear - transmission final drive output |
| 39 | 4207 | Gear and case - differential assembly |
| 40 | 4221 | Bearing - differential assembly |
| 41 | 4222 | Cup - differential bearing |
| 42 | 7L276 | Fluid dams - transfer shaft tube |
| 43 | 7A209 | Tube - transfer shaft |
| 44 | 7H367 | Shim - transfer shaft roller bearing |
| 45 | 7H344 | Cups - transfer shaft roller bearing |
| 46 | 7H348 | Gear and bearing assembly - transfer shaft |
| 47 | 7H338 | Cone and roller assembly - transfer shaft bearing |
| 48 | 7059 | Ring - transmission final drive retaining |
| 49 | 7H348 | Gear assembly - transfer shaft |
| 50 | 7H349 | Gear - transfer shaft input |
| 51 | 7H346 | Gear - transfer shaft output |
| 52 | 7A233 | Gear - output shaft parking |
| 53 | 7D419 | Plate - parking rod guide |
| 54 | 7D071 | Shaft - parking pawl |
| 55 | 7D070 | Spring - parking pawl return |
| 56 | 7A441 | Pawl - parking brake |
| 57 | 7H389 | Plug - transmission case orifice |
| 58 | 7J387 | Reservoir - transmission fluid |
| 59 | 7L280 | Seal - transmission fluid reservoir |
| 60 | 7D412 | Pin - parking pawl abutment |
| 61 | 7G101 | Abutment - parking pawl actuator |
| 62 | 7A010 | Plugs - transmission drain |
| 63 | 7B362 | Pin - transmission case dowel |
| 64 | 7005 | Case |
| 65 | 7G342 | Tag - transmission service identification |
| 66 | W711892-S441-S441 | Nut - M10 |
| 67 | 7A256 | Lever - manual control |
| 68 | 7F337 | Seal assembly - manual control shaft |
| 69 | 7H103 | Sensor assembly - OSS |
| 70 | 7N266 | Seal - valve body |
| 71 | 7J282 | Bolts - M6 x 63 |
| 72 | 7E332 | Spring assembly - manual valve detent |
| 73 | 7H557 | Sensor - TR |
| 74 | 7A232 | Rod assembly - park pawl actuator |
| 75 | 7B210 | Pin - manual control lever |
| 76 | 1177 | Seal - transmission differential |

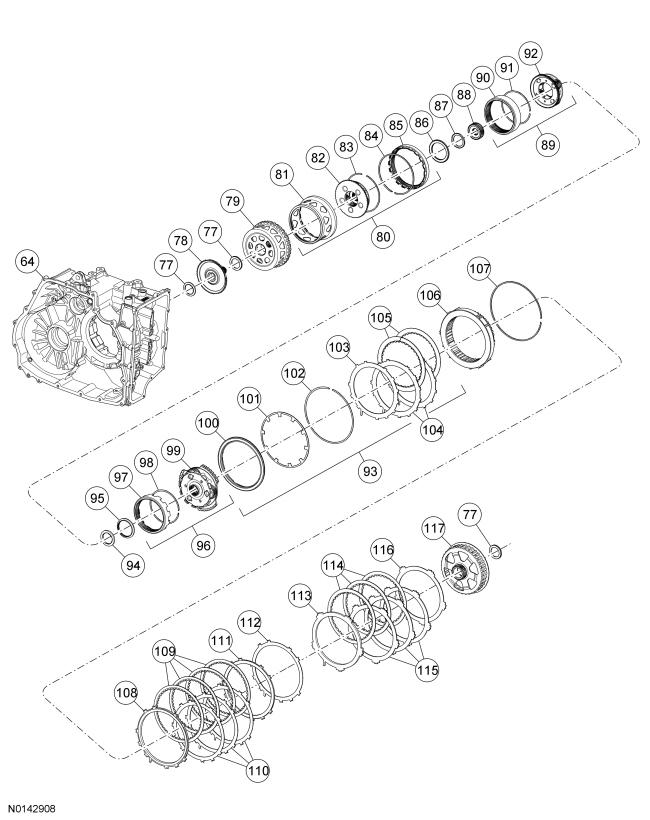

| 77 | 7D090 | Bearing assembly - thrust |
| 78 | 7B067 | Hub assembly - planetary carrier |
| 79 | 7D064 | Sun gear and shell assembly - planetary carrier |
| 80 | 7D491 | Carrier and gear assembly - planetary |
| 81 | 7M022 | Shell - planetary carrier |
| 82 | 7N470 | Carrier - planetary gear |
| 83 | 7L487 | Ring - planetary carrier guide |
| 84 | 7C122 | Snap ring - planetary carrier |
| 85 | 7G211 | Gear - front planetary ring |
| 86 | 7H375 | Bearing and race assembly - forward planetary carrier thrust |
| 87 | 7F241 | Bearing and race assembly - forward planetary sun gear thrust |
| 88 | 7G304 | Gear - forward planetary sun |
| 89 | 7L192 | Carrier and ring gear assembly - forward planetary |
| 90 | 7A153 | Ring gear - planetary |
| 91 | 7H318 | Retainer - snap ring |
| 92 | 7D055 | Carrier assembly - forward planetary |
| 93 | - | Clutch assembly - forward |
| 94 | 7C096 | Bearing - forward planetary sun gear thrust (rear) |
| 95 | 7G177 | Bearing - front planetary carrier thrust |
| 96 | 7D491 | Gear and carrier assembly - front |
| 97 | 7D491 | Ring gear assembly - forward |
| 98 | 7H361 | Snap ring - forward planetary ring gear |
| 99 | 7G226 | Carrier - front planetary gear |
| 100 | 7A262 | Piston assembly - forward clutch |
| 101 | 7B070 | Spring - forward clutch piston return |
| 102 | 7H365 | Ring - forward clutch balance piston snap |
| 103 | 7B070 | Spring - forward clutch cushion |
| 104 | 7B442 | Plates - forward clutch (steel) |
| 105 | 7B164 | Plates - forward clutch (friction) |
| 106 | 7A089 | Clutch - low one-way |
| 107 | 7D483 | Ring - low OWC |
| 108 | 7B066 | Plate - low reverse clutch pressure |
| 109 | 7B164 | Plates - low reverse clutch (friction) |
| 110 | 7B442 | Plates - low reverse clutch (steel) |
| 111 | 7B066 | Plate - low reverse clutch pressure |
| 112 | 7J701 | Spring - low reverse clutch cushion (if equipped) |
| 113 | 7B066 | Plate - intermediate clutch pressure |
| 114 | 7B164 | Plates - intermediate clutch (friction) |
| 115 | 7B442 | Plates - intermediate clutch (steel) |
| 116 | 7E085 | Spring - intermediate clutch cushion |
| 117 | 7A019 | Sun gear and shell assembly - front planetary gear assembly |

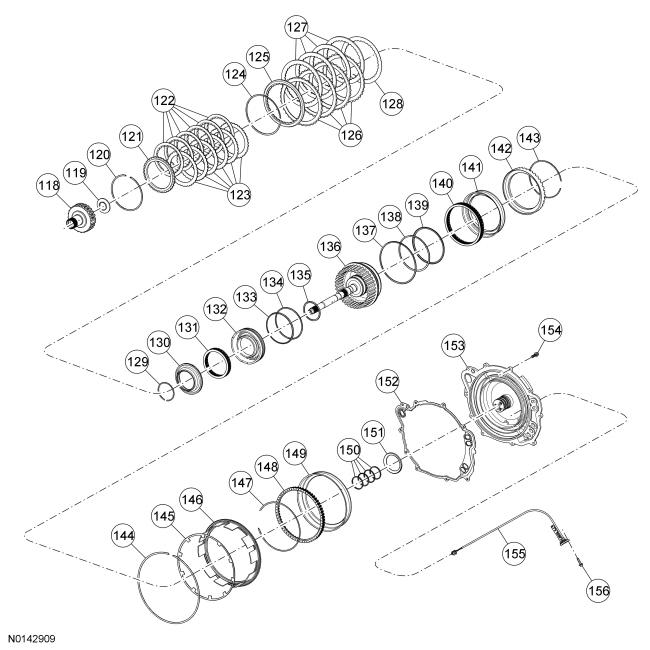

| 118 | 7H351 | Hub assembly - direct clutch |
| 119 | 7C096 | Bearing - direct clutch hub thrust |
| 120 | 7D483 | Snap ring - overdrive clutch |
| 121 | 7B066 | Plate - overdrive pressure |
| 122 | 7B164 | Plates - overdrive pressure (friction) |
| 123 | 7B442 | Plates - overdrive pressure (steel) |
| 124 | 7D483 | Snap ring - direct clutch |
| 125 | 7B066 | Plate - direct clutch pressure |
| 126 | 7B442 | Plates - direct clutch (friction) |
| 127 | 7B164 | Plates - direct clutch (steel) |
| 128 | 7E085 | Spring - direct clutch wave |
| 129 | 7C122 | Snap ring - balance piston |
| 130 | 7H360 | Piston - balance |
| 131 | 7F222 | Spring - overdrive clutch piston return |
| 132 | 7A262 | Piston - overdrive clutch |
| 133 | 7A548 | Seal - overdrive clutch piston outer (front) |
| 134 | 7A548 | Seal - overdrive clutch piston outer (rear) |
| 135 | 7A548 | Seal - overdrive clutch piston inner |
| 136 | 7G384 | Hub and shaft assembly - input direct and overdrive clutch |
| 137 | 7A548 | Seal - direct clutch piston outer |
| 138 | 7C099 | Seal - direct clutch piston inner (front) |
| 139 | 7C099 | Seal - direct clutch piston inner (rear) |
| 140 | 7F235 | Return spring assembly - direct clutch |
| 141 | 7A262 | Piston assembly - direct clutch |
| 142 | 7F283 | Cylinder - direct clutch piston |
| 143 | 7C122 | Snap ring - direct clutch piston cylinder |
| 144 | 7C122 | Snap ring - reverse clutch piston return spring |
| 145 | 7B070 | Spring - reverse clutch piston return |
| 146 | 7D402 | Piston - reverse clutch |
| 147 | 7D483 | Snap ring - intermediate clutch return spring |
| 148 | 7F222 | Spring - intermediate clutch piston return |
| 149 | 7E005 | Piston - intermediate clutch |
| 150 | 7D019 | Seals - transmission cover |
| 151 | 7H026 | Bearing - turbine shaft thrust |
| 152 | 7223 | Gasket - cover assembly |
| 153 | 7222 | Cover assembly |
| 154 | 7J289 | Bolts - M6 x 30 |
| 155 | 7M101 | Sensor assembly - TSS |
| 156 | 7J356 | Bolt - M6 x 25 |

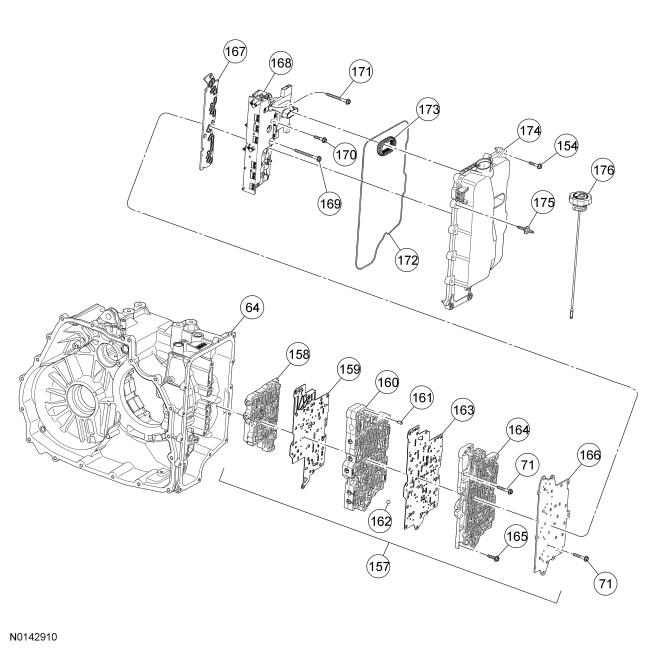

| 157 | 7A100 | Body assembly - main control valve |
| 158 | 7A099 | Body assembly - lower main control valve |
| 159 | 7Z490 | Plate assembly - lower valve body separator |
| 160 | 7A091 | Body - main control valve |
| 161 | 7B431 | Pin - transfer plate alignment |
| 162 | 7E195 | Ball - check |
| 163 | 7Z490 | Plate - transfer plate separator |
| 164 | 7H195 | Plate - transfer |
| 165 | 7J291 | Bolt - M6 x 35 |
| 166 | 7Z490 | Cover assembly - main control valve body |
| 167 | 7H200 | Plate - solenoid filter |
| 168 | 7G391 | Body assembly - solenoid |
| 169 | 7J295 | Bolt - M6 x 95 |
| 170 | 7J364 | Bolt - M6 x 42 |
| 171 | 7J293 | Bolt - M6 x 80 |
| 172 | 7F396 | Gasket - main control cover |
| 173 | 7B329 | Seal - solenoid body-to-main control cover |
| 174 | 7G004 | Cover assembly - main control |
| 175 | W708442 | Stud - hex flange |
| 176 | 7A020 | Indicator - transmission fluid level |
