Body Control Module (BCM): Notes

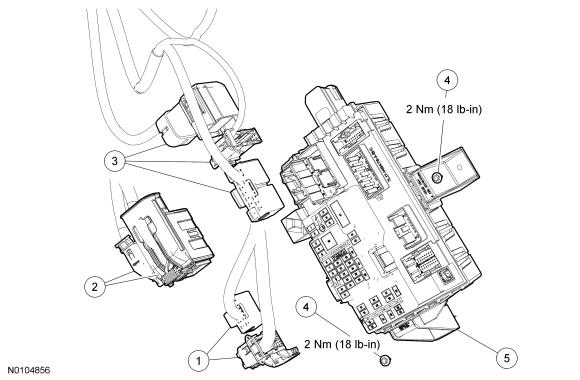

Fig 1: Body Control Module With Torque Specifications
GFD137097Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Body Control Module (BCM) electrical connectors (part of 14401)
2 - BCM electrical connectors (part of 14A005)
3 - BCM electrical connectors (part of 14290)
2 W706287 BCM bolts (2 required)
3 14B207 BCM
