Differential Case: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tool(s)
| Gauge, Differential (Traction-Lock) 205-386 (T97T-4205-D) |
Material
| Item | Specification |
| Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL | WSS-M2C942-A |
| Motorcraft ® Threadlock and Sealer TA-25-B | WSK-M2G351-A5 |

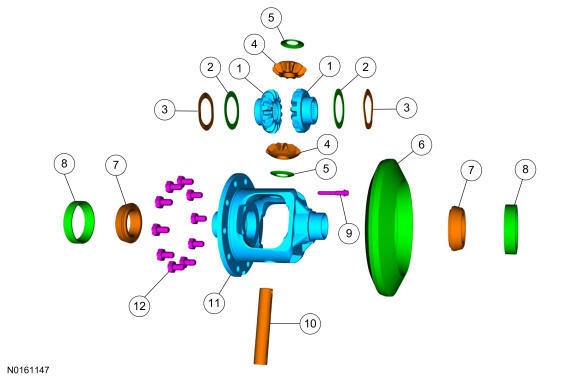

| Item | Part Number | Description |
|---|---|---|
| 1 | 4236 | Differential side gears |
| 2 | 4228 | Differential side gear thrust washers |
| 3 | - | Differential side gear wave washers |
| 4 | 4215 | Differential pinion gears |
| 5 | 4230 | Differential pinion thrust washers |
| 6 | 4209 | Differential ring gear |
| 7 | 4221 | Differential bearings (2 required) |
| 8 | 4222 | Differential bearing cups (2 required) |
| 9 | 4241 | Differential pinion shaft lock bolt |
| 10 | 4211 | Differential pinion shaft |
| 11 | 4204 | Differential case |
| 12 | 4216 | Differential ring gear bolt (10 required) |
