Driver Multi-Contour Seat Module [SCMG]: Removal

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Drivers seat shown, passenger seat similar.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCMG or SCMH installed. If the current SCMG or SCMH does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCMG or SCMH following the on-screen instructions.
Remove the front seat backrest panel. Refer to: Front Seat Backrest Panel (501-10A Front Seats, Removal and Installation).
NOTE: Follow the color codes of the hoses and locks as indicated below. Tube colors noted are from left to right.

NOTE: After disconnecting the hose and lock assemblies, verify the black O-ring and white spacer remains with each hose.

NOTE: When connecting the hose and lock assemblies, an audible click must be heard for correct installation.

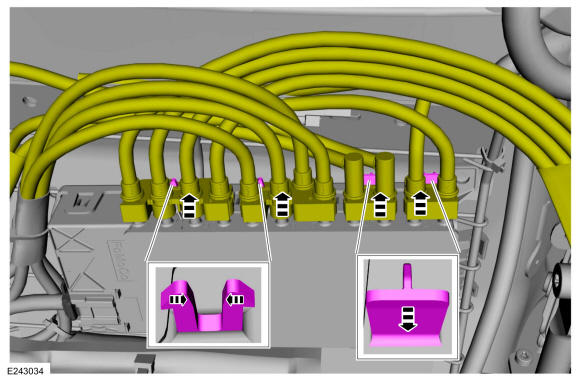

Release the locking tabs and disconnect the hose and lock assemblies from the SCMG.
- Orange lock: black - transparent blue - blue - green.
- Blue lock: yellow - transparent green - red - clear.
- Green lock: transparent yellow - transparent magenta.
- Yellow lock: transparent orange - transparent red.
Courtesy of FORD MOTOR COMPANY

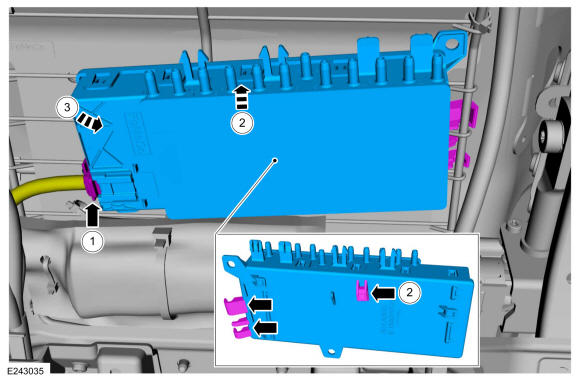

Remove the SCMG.
1. Disconnect the electrical connector.
2. Lift upwards on the SCMG to release the rear locking clip.
3. Rotate the SCMG to release the side locking clips.

Courtesy of FORD MOTOR COMPANY
