Side Obstacle Detection Control Module: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: This step is only necessary if the SODL or SODR is being replaced.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

NOTE: If a side obstacle detection control module did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair.

Using a diagnostic scan tool, begin the PMI (programmable module installation) process for the SODL or SODR following the on-screen instructions.
Remove the rear wheel and tire. Refer to Wheels And Tires System
Remove the rear quarter panel moulding. Refer to: Exterior Trim And Ornamentation

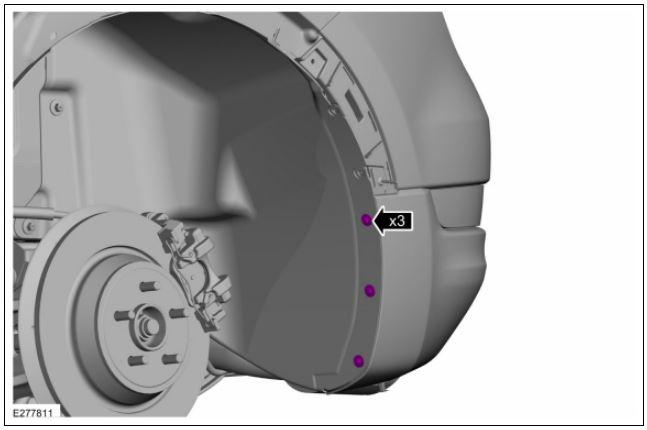

Remove the inner wheel liner to rear bumper cover screws.

Courtesy of FORD MOTOR COMPANY

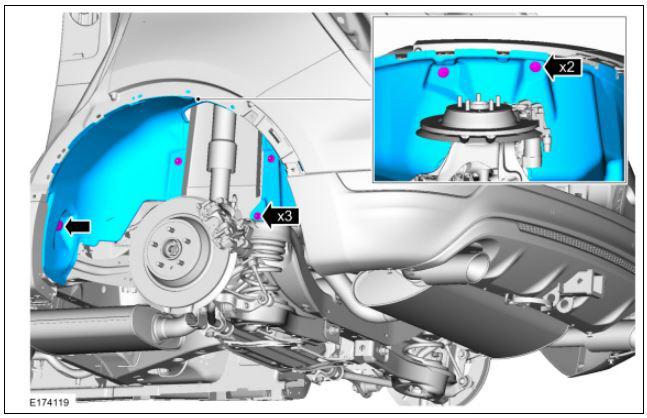

Remove the nuts, the pin-type retainers and the rear inner quarter panel liner.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

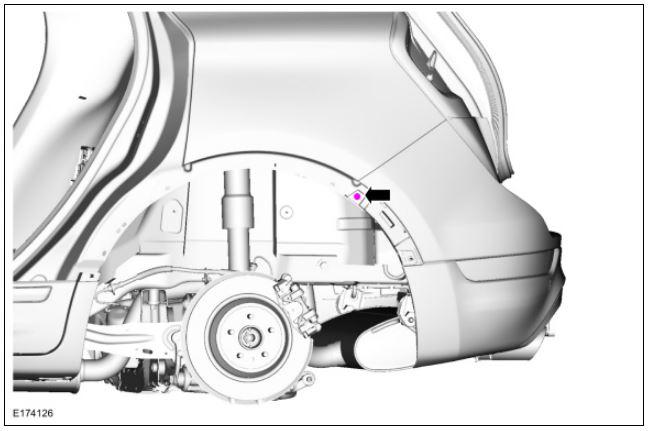

Remove the bolt.

Courtesy of FORD MOTOR COMPANY

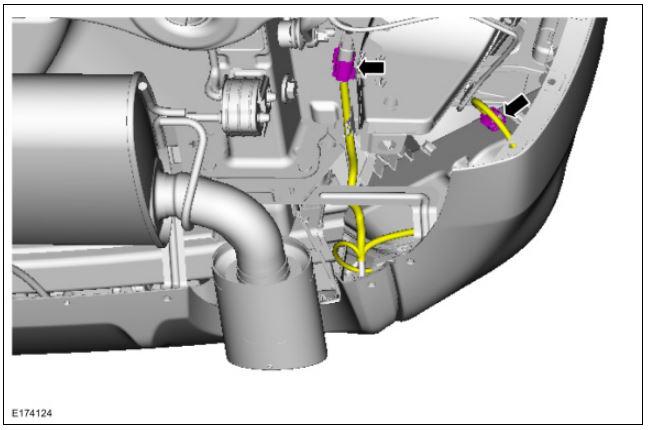

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

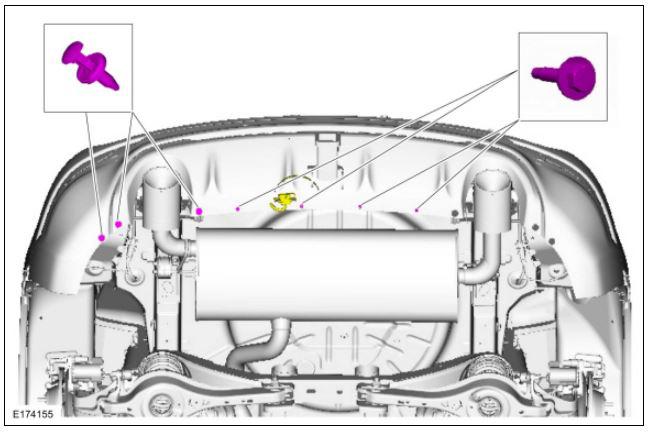

Remove the push pins and the bolts.

Courtesy of FORD MOTOR COMPANY

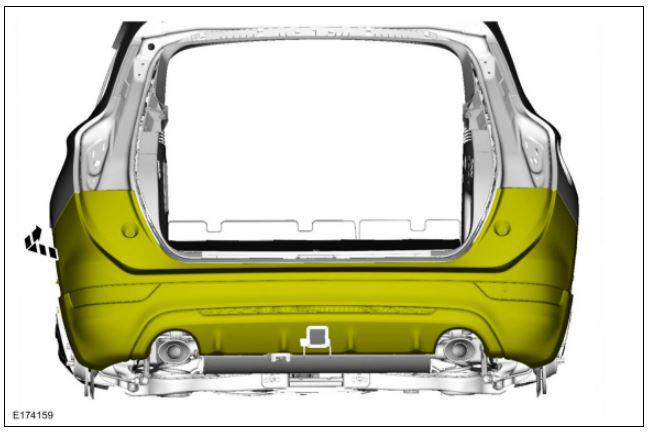

Position the required side of the rear bumper cover outward and rearward.

Courtesy of FORD MOTOR COMPANY

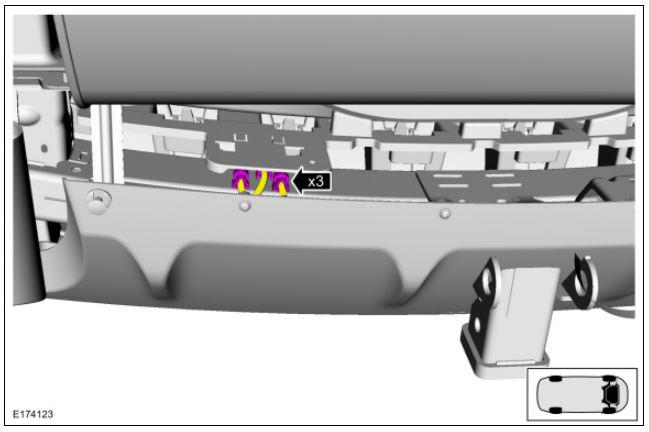

Disconnect the electrical connector.
Disconnect the wiring harness retainer and position the wiring harness aside.

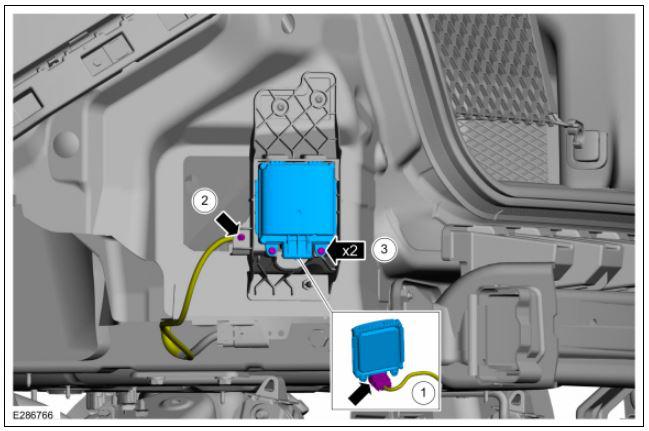

Remove the screws and the SODL.

Courtesy of FORD MOTOR COMPANY

NOTE: The following step is only necessary if a new component is being installed.

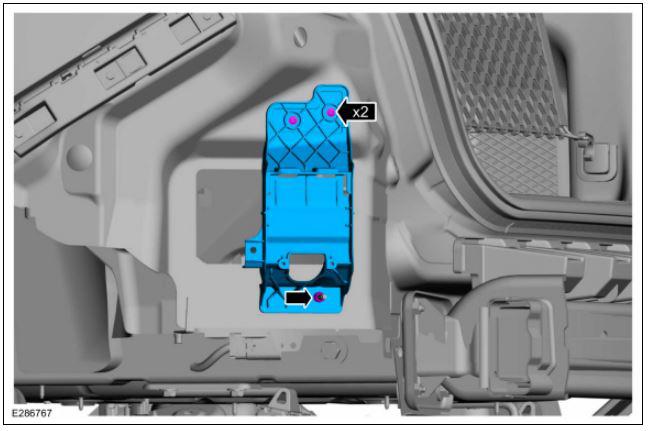

Remove the nut, the screws and the side obstacle detection control module bracket.

Courtesy of FORD MOTOR COMPANY
