Body Control Module (BCM): Installation
WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

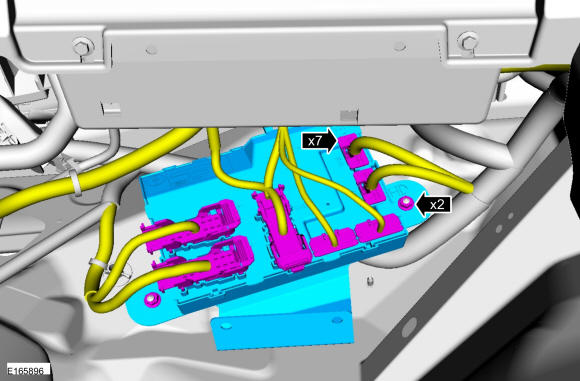

- Install the BCM, tighten the nuts and connect the electrical connectors.
Torque: 115 lb.in (13 Nm)
-
NOTE: If the BCM is not being replaced, this is the last step that is necessary.

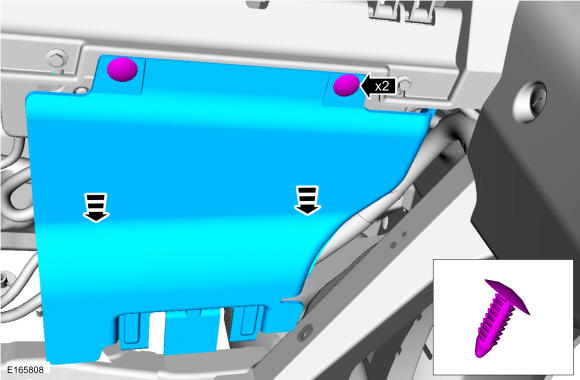

Install the RH insulation panel and the pin-type retainers.
- Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.
- Carry out the BCM self-test to confirm all DTC have been cleared.
- For vehicles without push button start, program all the RKE transmitter(s) into the new BCM. Refer to: Remote Keyless Entry (RKE) Transmitter Programming .
