Powertrain/Drivetrain Mount Neutralizing

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Adjustment

  1. Refer to: Jacking and Lifting - Overview .
  2. Remove the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma .

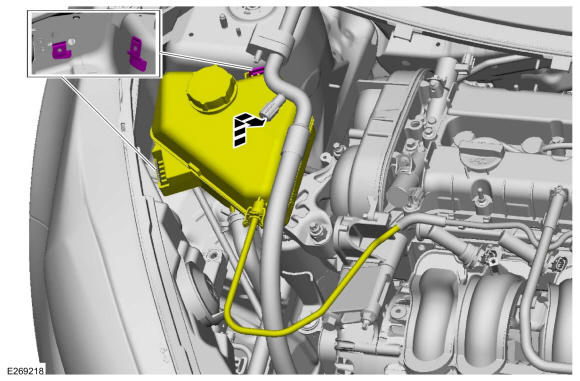

  3. Position the degas bottle aside.
    GFD299886Courtesy of FORD MOTOR COMPANY

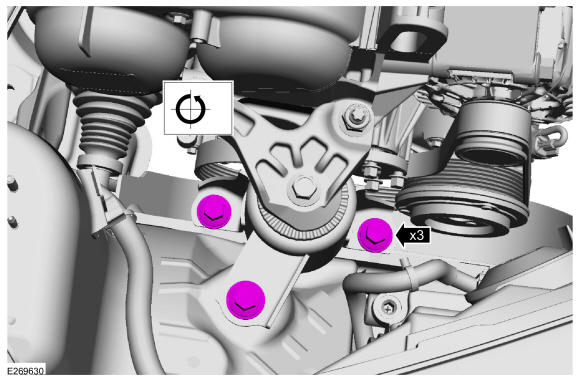

  4. Loosen, but do not remove the engine mount bolts.
    GFD299887Courtesy of FORD MOTOR COMPANY
  5. Remove the nut and position the wire aside.
    GFD299888Courtesy of FORD MOTOR COMPANY

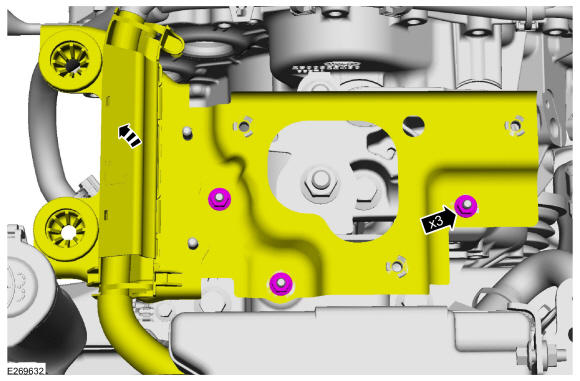

  6. Remove the nuts and position the battery tray bracket aside.
    GFD299889Courtesy of FORD MOTOR COMPANY

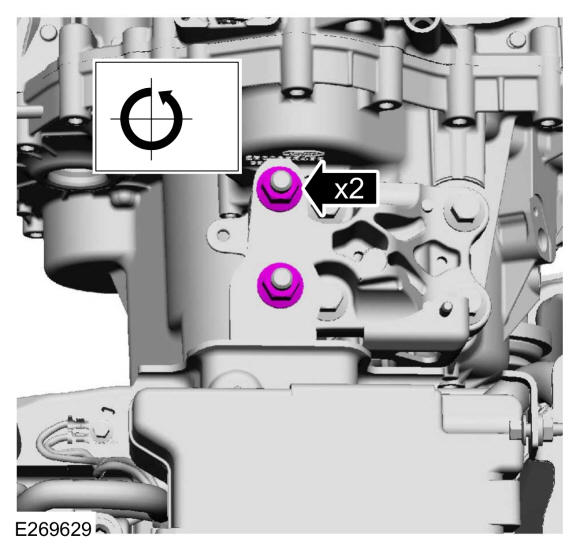

  7. Loosen, but do not remove the transmission mounting assembly nuts.
    GFD299890Courtesy of FORD MOTOR COMPANY

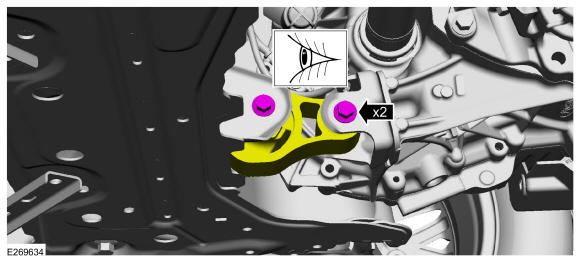

  8. Loosen, but do not remove the 2 roll restrictor bolts. Verify that the roll restrictor is loose.
    GFD299891Courtesy of FORD MOTOR COMPANY

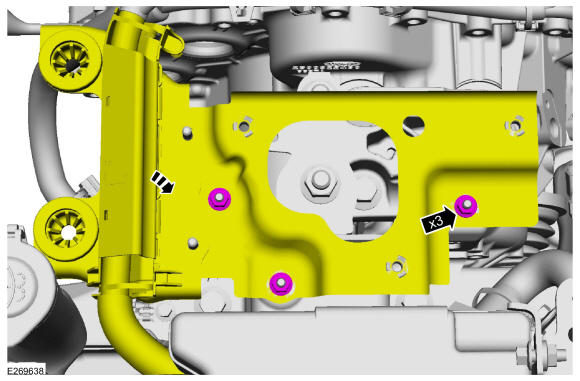

  9. Install the battery tray bracket and nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD299892Courtesy of FORD MOTOR COMPANY
  10. Install the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma .
  11. Install the battery. Refer to: Battery .
  12. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

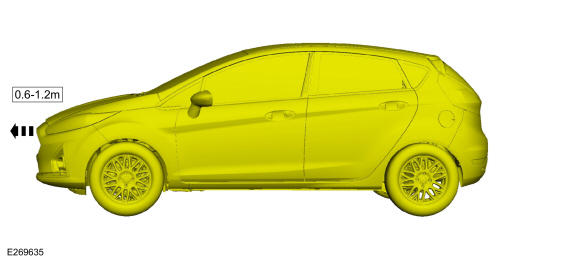

    Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    GFD299893Courtesy of FORD MOTOR COMPANY
  13. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

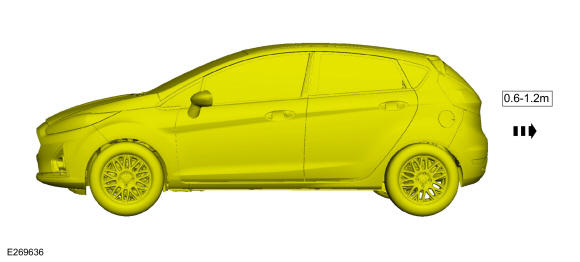

    Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    GFD299894Courtesy of FORD MOTOR COMPANY
  14. Remove the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma .
  15. Remove the nuts and position the battery tray bracket aside.
    GFD299889Courtesy of FORD MOTOR COMPANY

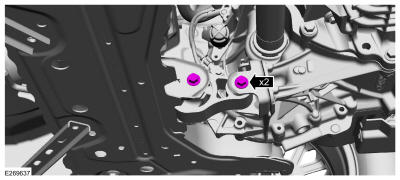

  16. Tighten the roll restrictor bolts.

    Torque: 52 lb.ft (70 Nm)

    GFD299895Courtesy of FORD MOTOR COMPANY

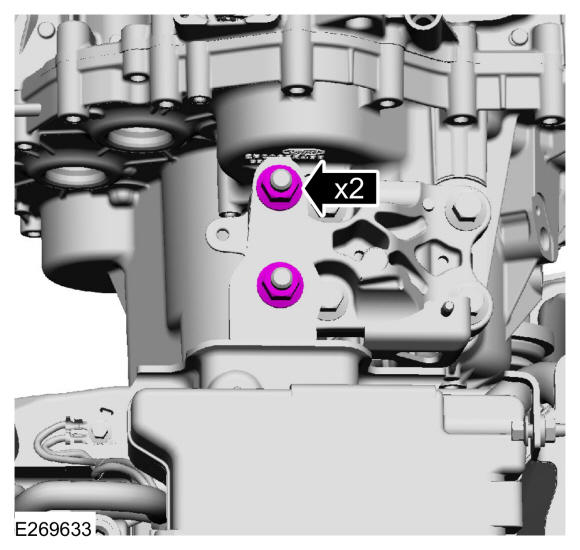

  17. Tighten the transmission mounting assembly nuts.

    Torque: 92 lb.ft (125 Nm)

    GFD299896Courtesy of FORD MOTOR COMPANY
  18. Install the battery tray bracket and nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD299892Courtesy of FORD MOTOR COMPANY

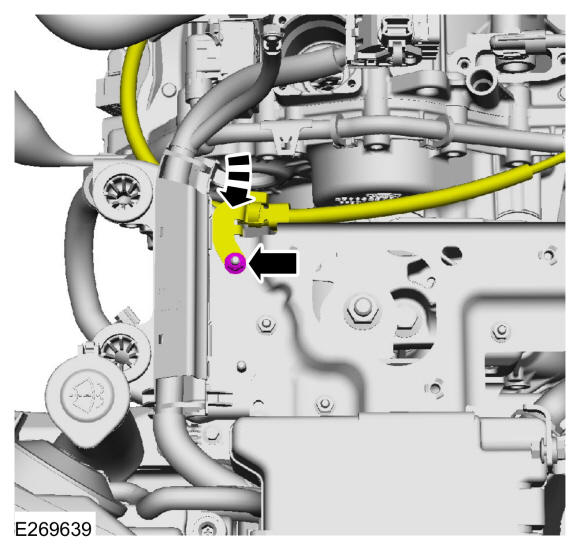

  19. Install the transmission cable and nut.

    Torque: 89 lb.in (10 Nm)

    GFD299897Courtesy of FORD MOTOR COMPANY
  20. Install the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma .
  21. Install the battery. Refer to: Battery .
  22. Position back the degas bottle.
    GFD299898Courtesy of FORD MOTOR COMPANY

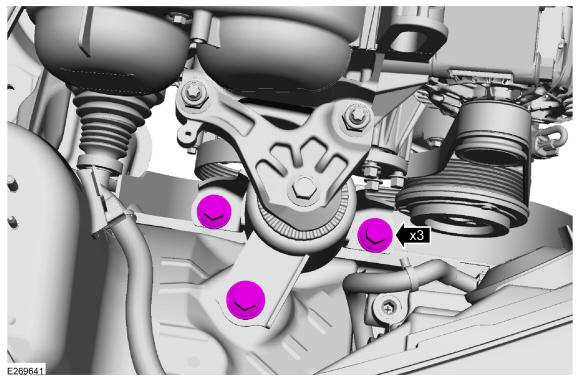

  23. Tighten the engine mount bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD299899Courtesy of FORD MOTOR COMPANY
  24. Test the system for normal operation.
