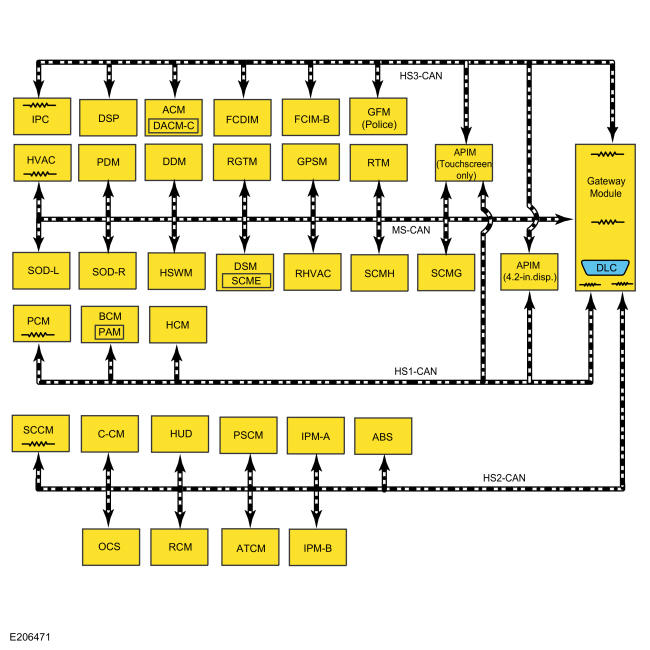

Module Network Chart
WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility and 2017 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Module Network Chart
| Module Name | Network Type | Terminating Module |
|---|---|---|
| APIM | HS-CAN1 | No |
| HS-CAN3 | No | |
| MS-CAN | No | |
| ATCM (if equipped) | HS-CAN2 | No |
| ABS module | HS-CAN2 | No |
| ACM | HS-CAN3 | No |
| DSP (if equipped) | HS-CAN3 | No |
| BCM | HS-CAN1 | No |
| CCM (if equipped) | HS-CAN2 | No |
| DACMC (if equipped) (integral with ACM) | HS-CAN3 | No |
| DDM (if equipped) | MS-CAN | No |
| DSM (if equipped) | MS-CAN | No |
| SCMG (if equipped) | MS-CAN | No |
| SCMH (if equipped) | MS-CAN | No |
| Front Controls Interface Module B (FCIM-B) | HS-CAN3 | No |
| FCDIM (if equipped) | HS-CAN3 | No |
| SCME (if equipped) (integral with DSM) | MS-CAN | No |
| GWM | HS-CAN1 | Yes |
| HS-CAN2 | Yes | |
| HS-CAN3 | Yes | |
| MS-CAN | Yes | |
| GFM (Police option only) | HS-CAN3 | No |
| GPSM (if equipped) | MS-CAN | No |
| HCM (if equipped) | HS-CAN1 | No |
| HUD module (if equipped) | HS-CAN2 | No |
| HSWM (if equipped) | MS-CAN | No |
| HVAC module | MS-CAN | Yes |
| IPC | HS-CAN3 | Yes |
| IPMA (if equipped) | HS-CAN2 | No |
| IPMB (if equipped) | HS-CAN2 | No |
| OCS module | HS-CAN2 | No |
| PAM (if equipped) (integral with BCM) | HS-CAN1 | No |
| PSCM | HS-CAN2 | No |
| PCM | HS-CAN1 | Yes |
| PDM (if equipped) | MS-CAN | No |
| RTM | MS-CAN | No |
| RGTM (if equipped) | MS-CAN | No |
| RHVAC module (if equipped) | MS-CAN | No |
| RCM | HS-CAN2 | No |
| SODL (if equipped) | MS-CAN | No |
| SODR (if equipped) | MS-CAN | No |
| SCCM | HS-CAN2 | Yes |
