Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake disc shield. Refer to:BRAKE DISC SHIELD .

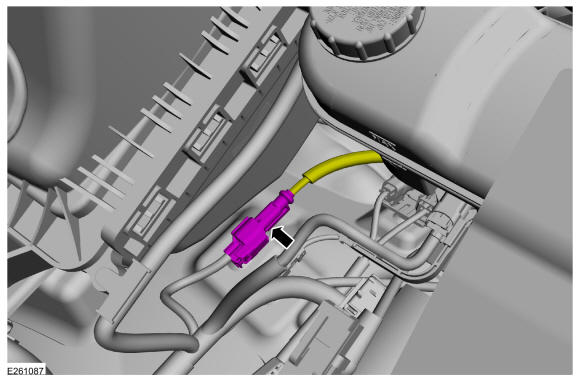

Disconnect the wheel speed sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

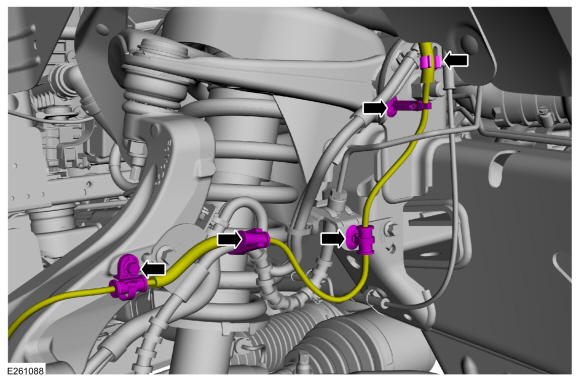

Remove the bolt and detach the wiring retainers.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

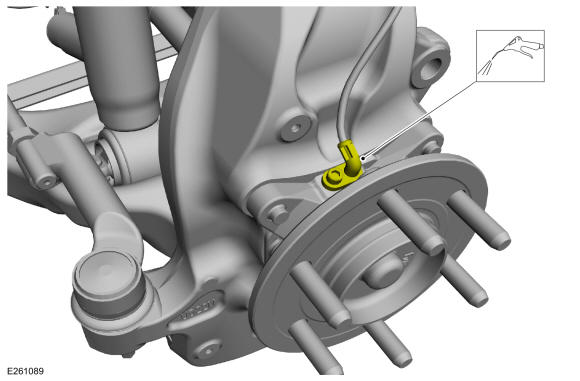

Using compressed air, clean the area surrounding the front wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

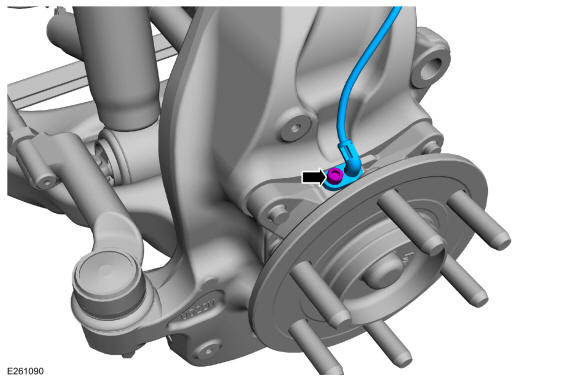

Remove the bolt and the front wheel speed sensor.
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
