Fuel Pump Driver Module (FPDM): Installation

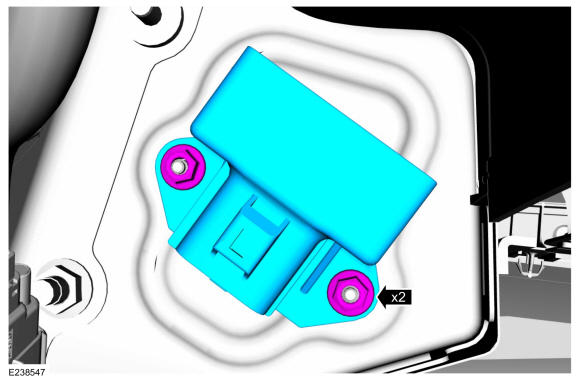

  1. Install the FPDM, then install and tighten the FPDM retaining nuts.

    Torque: 13 lb.in (1.5 Nm)

    GFD421691Courtesy of FORD MOTOR COMPANY

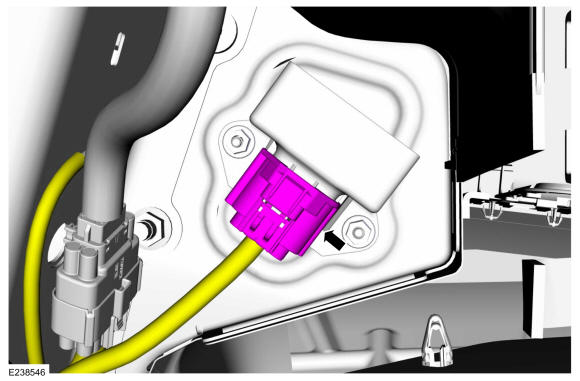

  2. Connect the FPDM electrical connector.
    GFD421690Courtesy of FORD MOTOR COMPANY

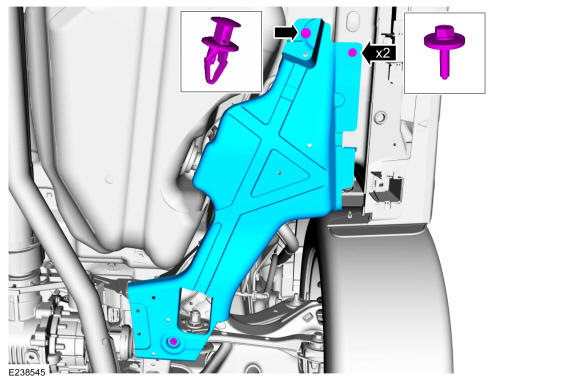

  3. Install the left rear air deflector, install the pushpin, then install and tighten the left rear air deflector retainers.

    Torque: 13 lb.in (1.5 Nm)

GFD421689Courtesy of FORD MOTOR COMPANY
