Transmission Range Control Module (TRCM): Installation

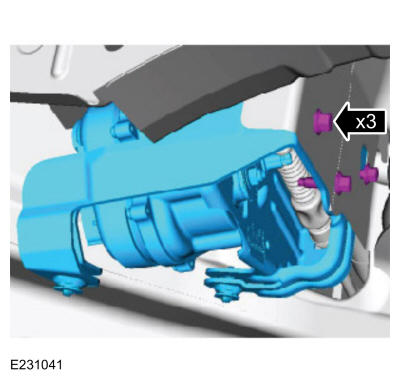

- Install the TRCM and the bolts.
Torque: 133 lb.in (15 Nm)

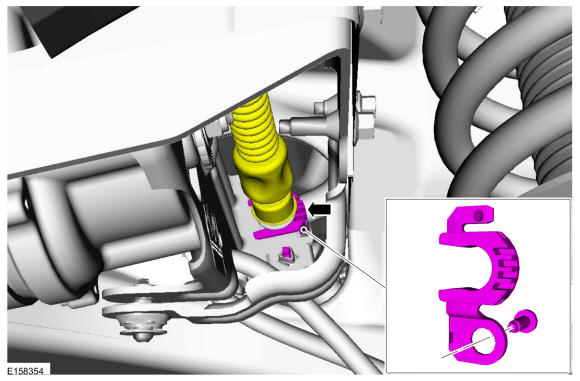

- Attach the selector lever cable to the selector lever cable bracket and install the retaining clip bolt.
Torque: 62 lb.in (7 Nm)

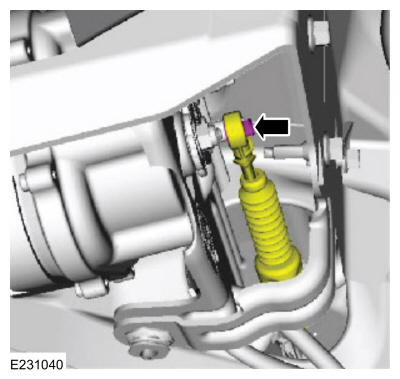

- Connect the selector lever cable to the TRCM lever.

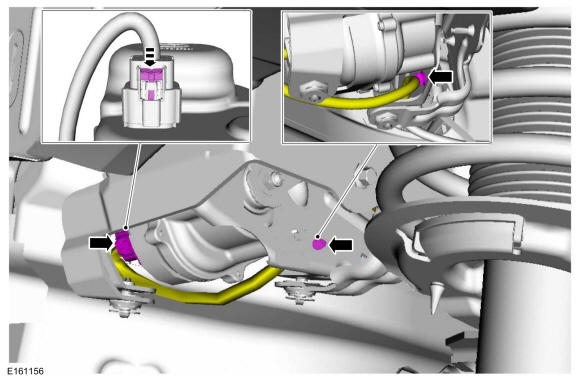

- Attach the wiring harness retainer and connect the TRCM electrical connector.
- Install the RH fender splash shield. Refer to: Fender Splash Shield
- Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment
