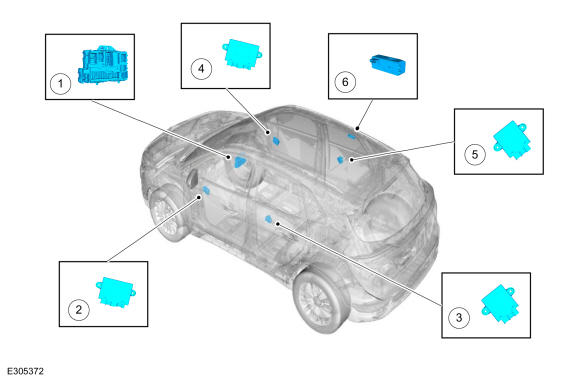

Module Controlled Functions - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
BCM
2
DDM
3
RDM - LH
4
PDM
5
RDM - RH
6
RTM
Courtesy of FORD MOTOR COMPANY
