Front Wheel Speed Sensor: Installation

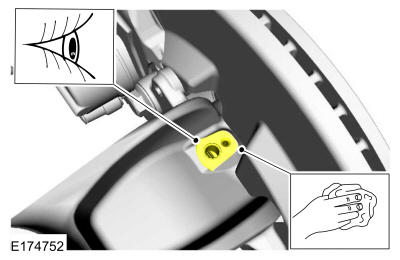

NOTE: Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material or damage to the sensor may occur.

To install, reverse the removal procedure.

Courtesy of FORD MOTOR COMPANY
