Brake Shift Interlock Override Switch: Installation

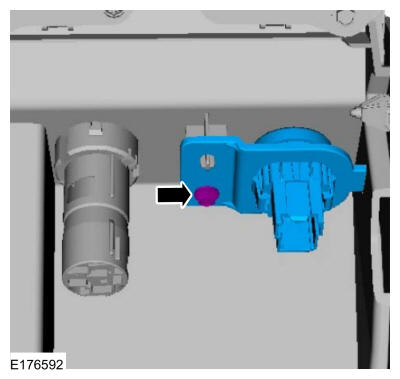

  1. Position the brake shift interlock override switch and install the screw.

    Torque: 44 lb.in (5 Nm)

    GFD395244Courtesy of FORD MOTOR COMPANY

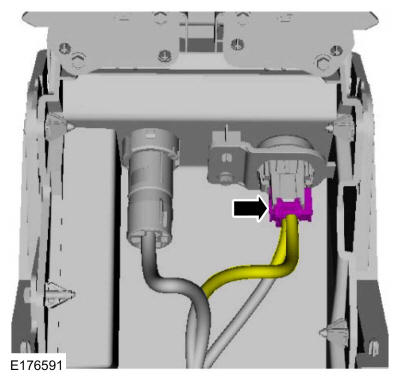

  2. Connect the brake shift interlock override switch electrical connector.
    GFD395243Courtesy of FORD MOTOR COMPANY

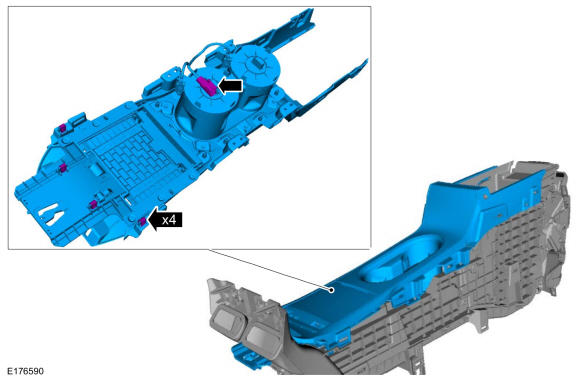

  3. Connect the electrical connector and install the console finish panel.
    GFD395242Courtesy of FORD MOTOR COMPANY

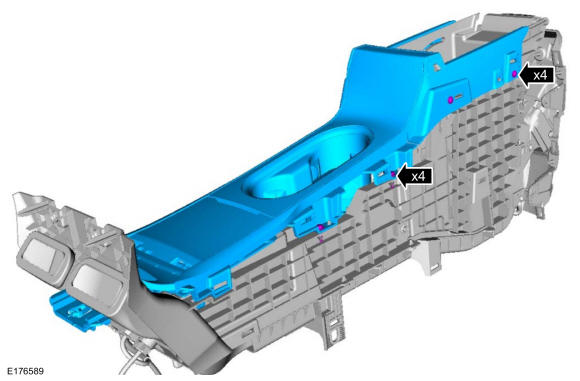

  4. Install the console finish panel screws.
    GFD395241Courtesy of FORD MOTOR COMPANY
  5. Install the floor console. Refer to: Floor Console .
