Removal And Installation: Horn: Notes

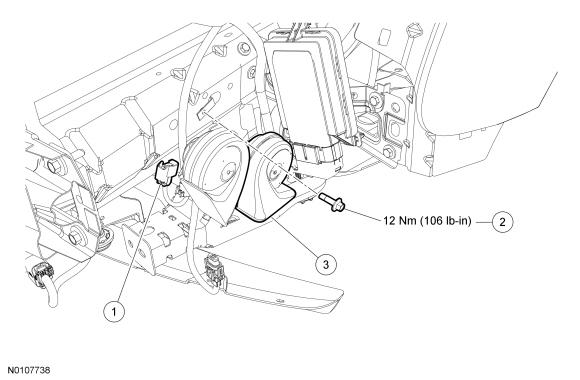

Fig 1: Horn With Torque Specifications
GFD94636Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Electrical connector (part of 14290)
2 W710500 Horn bracket bolt
3 13832 Horn
