Engine Mount: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

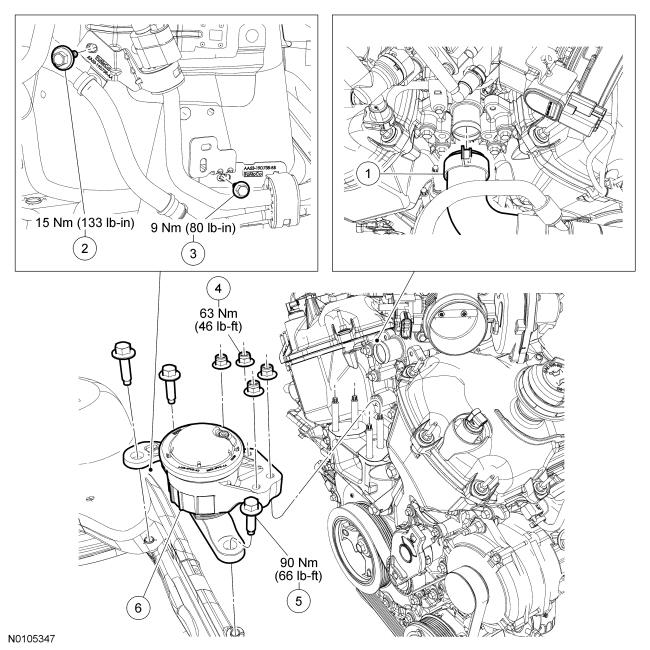

Fig 1: Engine Mount With Torque Specifications
GFD91914Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8B274 Upper radiator hose
2 W708877 A/C tube bracket bolt
3 W705622 A/C tube retaining clamp bolt
4 W714682 Engine mount-to-engine nut (4 required)
5 W712507 Engine mount-to-frame bolts (3 required)
6 6F012 Engine mount
