Timing Drive Components: Installation

WARNING: This page is about a different variant/trim than selected.

All engines

  1. Install the RH primary timing chain guide and the bolt.

    • Tighten to 10 Nm (89 lb-in).

    GFD91505Courtesy of FORD MOTOR COMPANY

    Engines with secondary timing chain tensioner removed

    NOTE: The following steps are only for the replacement of the secondary timing chain tensioners. Do not reuse the secondary timing chain tensioners if removed or damage to the engine may occur.
  2. NOTE: Apply clean engine oil to the secondary timing chain tensioner O-ring seals and mega cap bore.
    NOTE: Do not remove the secondary timing chain tensioner shipping clip, until instructed to do so.

    Install the RH secondary timing chain tensioner by pushing it down all the way until a snap is heard and the tensioner is seated all the way down the mega cap bore.

    GFD91512Courtesy of FORD MOTOR COMPANY
  3. Install the RH secondary timing chain tensioner shoe.
    GFD91513Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the RH secondary timing chain tensioner shipping clip.
    GFD91514Courtesy of FORD MOTOR COMPANY
  5. Assemble the RH Variable Camshaft Timing (VCT) assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.

    • Align the colored links with the timing marks.

    GFD91515Courtesy of FORD MOTOR COMPANY
  6. NOTE: It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.

    Position the 2 RH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.

    GFD91504Courtesy of FORD MOTOR COMPANY
  7. Install the 2 new RH VCT bolts and tighten in 4 stages.

    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 25 Nm (18 lb-ft).
    • Stage 4: Tighten an additional 180 degrees.

    GFD91516Courtesy of FORD MOTOR COMPANY
  8. Activate the RH secondary timing chain tensioner by pressing down on the secondary tensioner top shoe until it bottoms out, let go of the tensioner and it will spring up putting tension on the chain.
    GFD91517Courtesy of FORD MOTOR COMPANY
  9. NOTE: Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
    NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Install the RH exhaust VCT oil control solenoid.

    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.

    GFD91518Courtesy of FORD MOTOR COMPANY
  10. NOTE: Apply clean engine oil to the secondary timing chain tensioner O-ring seals and mega cap bore.
    NOTE: Do not remove the secondary timing chain tensioner shipping clip, until instructed to do so.

    Install the LH secondary timing chain tensioner by pushing it down all the way until a snap is heard and the tensioner is seated all the way down the mega cap bore.

    GFD91519Courtesy of FORD MOTOR COMPANY
  11. Install the LH secondary timing chain tensioner shoe.
    GFD91520Courtesy of FORD MOTOR COMPANY
  12. Remove and discard the LH secondary timing chain tensioner shipping clip.
    GFD91521Courtesy of FORD MOTOR COMPANY
  13. Assemble the 2 LH VCT assemblies and the LH secondary timing chain.

    • Align the colored links with the timing marks.

    GFD91522Courtesy of FORD MOTOR COMPANY
  14. NOTE: It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.

    Position the 2 LH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.

    GFD91501Courtesy of FORD MOTOR COMPANY
  15. Install the 2 new LH VCT bolts and tighten in 4 stages.

    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 25 Nm (18 lb-ft).
    • Stage 4: Tighten an additional 180 degrees.

    GFD91523Courtesy of FORD MOTOR COMPANY
  16. Activate the LH secondary timing chain tensioner by pressing down on the secondary tensioner top shoe until it bottoms out, let go of the tensioner and it will spring up putting tension on the chain.
    GFD91524Courtesy of FORD MOTOR COMPANY
  17. NOTE: Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
    NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Install the LH exhaust VCT oil control solenoid.

    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.

    GFD91525Courtesy of FORD MOTOR COMPANY

    Engines with secondary timing chain tensioner not removed

  18. Compress the RH secondary timing chain tensioner and install the Secondary Chain Hold Down to retain the tensioner in the collapsed position.
    GFD91526Courtesy of FORD MOTOR COMPANY
  19. Assemble the RH VCT assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.

    • Align the colored links with the timing marks.

    GFD91515Courtesy of FORD MOTOR COMPANY
  20. NOTE: It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.

    Position the 2 RH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.

    GFD91501Courtesy of FORD MOTOR COMPANY
  21. Install the 2 new RH VCT bolts and tighten in 4 stages.

    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 25 Nm (18 lb-ft).
    • Stage 4: Tighten an additional 180 degrees.

    GFD91503Courtesy of FORD MOTOR COMPANY
  22. NOTE: The 2 VCT oil control solenoids are removed for clarity.

    Compress the RH secondary timing chain tensioner and remove the Secondary Chain Hold Down.

    • Make sure the secondary timing chain is centered on the timing chain tensioner guides.

    GFD91502Courtesy of FORD MOTOR COMPANY
  23. Compress the LH secondary timing chain tensioner and install the Secondary Chain Hold Down to retain the tensioner in the collapsed position.
    GFD91527Courtesy of FORD MOTOR COMPANY
  24. Assemble the 2 LH VCT assemblies and the LH secondary timing chain.

    • Align the colored links with the timing marks.

    GFD91522Courtesy of FORD MOTOR COMPANY
  25. NOTE: It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.

    Position the 2 LH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.

    GFD91501Courtesy of FORD MOTOR COMPANY
  26. Install the 2 new LH VCT bolts and tighten in 4 stages.

    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 25 Nm (18 lb-ft).
    • Stage 4: Tighten an additional 180 degrees.

    GFD91500Courtesy of FORD MOTOR COMPANY
  27. NOTE: The 2 VCT oil control solenoids are removed for clarity.

    Compress the LH secondary timing chain tensioner and remove the Secondary Chain Hold Down.

    • Make sure the secondary timing chain is centered on the timing chain tensioner guides.

    GFD91499Courtesy of FORD MOTOR COMPANY

    All engines

  28. Install the upper LH primary timing chain guide and the bolt.

    • Tighten to 10 Nm (89 lb-in).

    GFD91498Courtesy of FORD MOTOR COMPANY
  29. Install the crankshaft timing chain sprocket with timing dot mark out.
    GFD91486Courtesy of FORD MOTOR COMPANY
  30. NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

    Install the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.

    GFD91489Courtesy of FORD MOTOR COMPANY

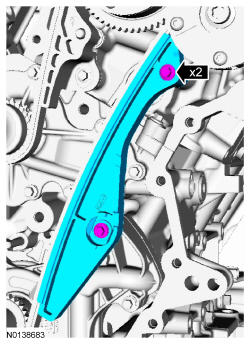

  31. Install the lower LH primary timing chain guide and the 2 bolts.

    • Tighten to 10 Nm (89 lb-in).

    GFD91485Courtesy of FORD MOTOR COMPANY

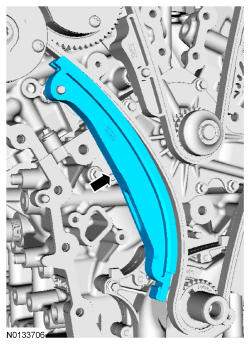

  32. Install the primary timing chain tensioner arm.
    GFD91484Courtesy of FORD MOTOR COMPANY

    Late build engines

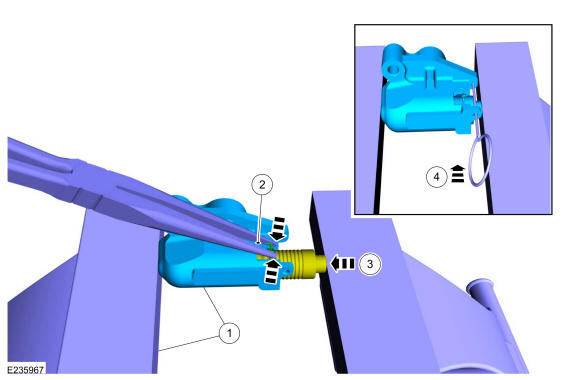

  33. Reset the primary timing chain tensioner.

    1. Position the tensioner in a soft-jawed vise.
    2. Using pliers, squeeze the ends of the ratchet wire clip together.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.

    GFD231082Courtesy of FORD MOTOR COMPANY
  34. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

    Install the primary tensioner and the 2 bolts.

    1. Tighten to 10 Nm (89 lb-in).
    2. Remove the lockpin.

    GFD231083Courtesy of FORD MOTOR COMPANY

    Early build engines

  35. Reset the primary timing chain tensioner.

    • Release the ratchet detent.
    • Using a soft-jawed vise, compress the ratchet plunger.
    • Align the hole in the ratchet plunger with the hole in the tensioner housing.
    • Install a suitable lockpin.

    GFD91490Courtesy of FORD MOTOR COMPANY
  36. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

    Install the primary tensioner and the 2 bolts.

    • Tighten to 10 Nm (89 lb-in).
    • Remove the lockpin.

    GFD91491Courtesy of FORD MOTOR COMPANY

    All engines

  37. As a post-check, verify correct alignment of all timing marks.

    • There are 48 links in between the RH intake VCT assembly colored link (1) and the LH intake VCT assembly colored link (2).
    • There are 35 links in between LH intake VCT assembly colored link (2) and the 2 crankshaft sprocket links (3).

    GFD91492Courtesy of FORD MOTOR COMPANY
  38. NOTE: Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
    NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Install the LH intake VCT oil control solenoid and the bolt.

    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.

    GFD91495Courtesy of FORD MOTOR COMPANY
  39. NOTE: Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
    NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Install the RH intake VCT oil control solenoid and the bolt.

    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.

    GFD91496Courtesy of FORD MOTOR COMPANY
  40. Remove the RH Camshaft Holding Tool.
    GFD91479Courtesy of FORD MOTOR COMPANY
  41. Install the RH valve train oil tube and the 3 bolts and tighten in 2 stages.

    • Stage 1: Tighten to 8 Nm (71 lb-in).
    • Stage 2: Tighten an additional 45 degrees.

    GFD91478Courtesy of FORD MOTOR COMPANY
  42. Remove the LH Camshaft Holding Tool.
    GFD91477Courtesy of FORD MOTOR COMPANY
  43. Install the LH valve train oil tube and the 3 bolts and tighten in 2 stages.

    • Stage 1: Tighten to 8 Nm (71 lb-in).
    • Stage 2: Tighten an additional 45 degrees.

    GFD91476Courtesy of FORD MOTOR COMPANY
  44. Install the engine front cover. For additional information, refer to Engine Front Cover .
