Section 1 (Engine 3.7L Ti-VCT): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s)

Courtesy of FORD MOTOR COMPANY	2, 200# Floor Crane, Fold Away 300-OTC1819E or equivalent
Courtesy of FORD MOTOR COMPANY	Adjustable Grip Arm, 1735A 014-00001 or equivalent
Courtesy of FORD MOTOR COMPANY	Eye, Engine Lift 303-1245
Courtesy of FORD MOTOR COMPANY	Powertrain Lift 300-OTC1585AE or equivalent
Courtesy of FORD MOTOR COMPANY	Spreader Bar 303-D089 (D93P-6001-A3) or equivalent

Material

All vehicles

1. Using the Floor Crane and Spreader Bar, align the transaxle to the engine.

   Courtesy of FORD MOTOR COMPANY

2. Install the 5 transaxle-to-engine bolts.
   • Tighten to 48 Nm (35 lb-ft).

   Courtesy of FORD MOTOR COMPANY

3. Install the 2 engine-to-transaxle bolts.
   • Tighten to 48 Nm (35 lb-ft).

   Courtesy of FORD MOTOR COMPANY

4. Install the RH halfshaft support bracket and the 2 bolts.
   • Tighten to 40 Nm (30 lb-ft).

   Courtesy of FORD MOTOR COMPANY

5. Install the 2 intermediate shaft bracket studs and nuts.
   • Tighten the studs to 10 Nm (89 lb-in).
   • Tighten the nuts to 25 Nm (18 lb-ft).

   Courtesy of FORD MOTOR COMPANY

6. NOTE: LH shown, RH similar.

   Install the ratchet strap from the front subframe to the LH engine lift eye and from the rear of the subframe to the RH engine lift eye.

   Courtesy of FORD MOTOR COMPANY

7. Using the Floor Crane and Spreader Bar, install the powertrain and subframe as an assembly on the powertrain lift table.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: LH shown, RH similar.

   Remove the ratchet strap from the front subframe to the LH engine lift eye and from the rear of the subframe to the RH engine lift eye.

   Courtesy of FORD MOTOR COMPANY

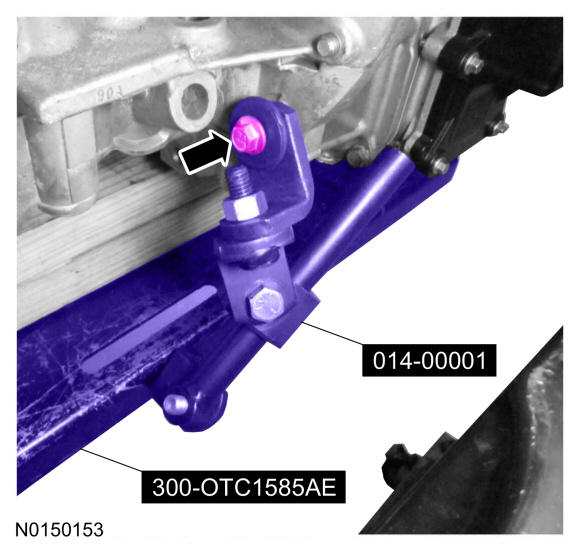

9. Install the Adjustable Grip Arm.

   Courtesy of FORD MOTOR COMPANY

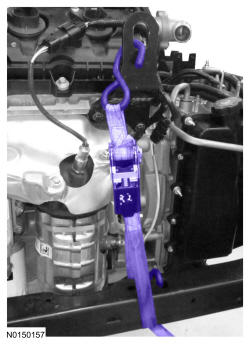

10. Install a ratchet strap from the front of the subframe under the powertrain lift table to the rear of the subframe, to secure the subframe to the powertrain lift table.

    All-Wheel Drive (AWD) vehicles

11. Position the PTU support bracket in place and install the 5 bolts.
    • Tighten to 48 Nm (35 lb-ft).

    Courtesy of FORD MOTOR COMPANY

    All vehicles

12. Install 6 new RH exhaust manifold studs.
    • Tighten to 12 Nm (106 lb-in).

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.

    Using a new gasket, install the RH exhaust manifold and 6 new nuts. Tighten in 2 stages in the sequence shown:

    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten to 25 Nm (18 lb-ft).
    Fig 1: RH Exhaust Manifold Nut Tightening Sequence

    Courtesy of FORD MOTOR CO.
14. Install the RH catalytic converter heat shield, Catalyst Monitor Sensor (CMS) wiring harness bracket and the 4 bolts.
    • Tighten to 10 Nm (89 lb-in).

    Courtesy of FORD MOTOR COMPANY

15. Connect the RH Heated Oxygen Sensor (HO2S) electrical connector.

    Courtesy of FORD MOTOR COMPANY

16. Connect the RH CMS electrical connector.

    Courtesy of FORD MOTOR COMPANY

17. Attach the transaxle control wire harness retainer to the transaxle stud bolt.

    Courtesy of FORD MOTOR COMPANY

18. Connect the transaxle control electrical connector.

    Courtesy of FORD MOTOR COMPANY

19. Position the wiring harness and attach the 3 wiring harness retainer to the valve cover stud bolt.

    Courtesy of FORD MOTOR COMPANY

20. Connect the generator B+ cable and install the nut.
    • Tighten to 17 Nm (150 lb-in).

    Courtesy of FORD MOTOR COMPANY

21. Position back the generator B+ cable cover and connect the generator electrical connector.

    Courtesy of FORD MOTOR COMPANY

22. Connect the 2 A/C compressor electrical connectors.
    • Attach the A/C wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

23. Install the ground wire to the RH cylinder head and install the bolt.
    • Tighten to 10 nm (89 lb-In).

    Courtesy of FORD MOTOR COMPANY

24. Install the starter, the stud bolt and bolt.
    • Tighten to 27 Nm (20 lb-ft).

    Courtesy of FORD MOTOR COMPANY

25. Connect the wiring harness retainer to the starter motor stud bolt.

    Courtesy of FORD MOTOR COMPANY

26. Attach the starter wire terminals and install the 2 nuts.
    1. Tighten the B+ terminal nut to 12 Nm (106 lb-in).
    2. Tighten the S-terminal nut to 5 Nm (44 lb-in).

    Courtesy of FORD MOTOR COMPANY

27. Install the starter motor solenoid cover.

    Courtesy of FORD MOTOR COMPANY

28. Remove the Heavy Duty Floor Crane and Spreader Bar.

    Courtesy of FORD MOTOR COMPANY

29. Remove 303-1245 from the LH cylinder head.

    Courtesy of FORD MOTOR COMPANY

30. Raise the subframe and powertrain assembly into the vehicle.
31. Install the engine mount and the 3 bolts.
    • Tighten to 90 Nm (66 lb-ft).

    Courtesy of FORD MOTOR COMPANY

32. Install the 4 engine mount nuts.
    • Tighten to 63 Nm (46 lb-ft).

    Courtesy of FORD MOTOR COMPANY

33. Install the transaxle support insulator bracket, 3 nuts and the bolt.
    • Tighten the transaxle support insulator bracket nuts to 63 Nm (46 lb-ft).
    • Tighten the transaxle support insulator bolt to 80 Nm (59 lb-ft).

    Courtesy of FORD MOTOR COMPANY

34. Install the transaxle support insulator through bolt and nut.
    • Tighten to 175 Nm (129 lb-ft).

    Courtesy of FORD MOTOR COMPANY

35. NOTE: RH shown, LH similar.

    Align the subframe and install the new front subframe bolts.

    • Tighten to 200 Nm (148 lb-ft).

    Courtesy of FORD MOTOR COMPANY

36. NOTE: RH shown, LH similar.

    Install the rear subframe brackets and the new subframe bracket-to-body bolts.

    • Finger tight at this stage.

    Courtesy of FORD MOTOR COMPANY

37. NOTE: RH shown, LH similar.

    Install the new subframe bracket bolts.

    • Tighten to 150 Nm (111 lb-ft).

    Courtesy of FORD MOTOR COMPANY

38. NOTE: RH shown, LH similar.

    Tighten the subframe bracket-to-body bolts to 55 Nm (41 lb-ft).

    Courtesy of FORD MOTOR COMPANY

39. Remove the ratchet strap from the front of the subframe to the rear of the subframe.
40. Remove the Adjustable Grip Arm and the powertrain lift table.

    Courtesy of FORD MOTOR COMPANY

41. NOTE: LH shown, RH similar.

    Install the strut to the wheel knuckle and install the strut-to-wheel knuckle nuts and bolts.

    • Tighten to 250 Nm (184 lb-ft).

    Courtesy of FORD MOTOR COMPANY

42. NOTE: LH shown, RH similar.

    Install the brake caliper and the guide pin bolts.

    • 432 mm (17 in) brakes: Tighten to 72 Nm (53 lb-ft).
    • 457 mm (18 in) brakes: Tighten to 75 Nm (55 lb-ft).

    Courtesy of FORD MOTOR COMPANY

43. NOTE: Do not tighten the wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.
    NOTE: LH shown, RH similar.
    NOTE: Apply the brake to keep the halfshaft from rotating.

    Using the previously removed wheel hub nut, seat the LH and RH halfshafts.

    • Tighten to 350 Nm (258 lb-ft).
    • Remove and discard the wheel hub nuts.

    Courtesy of FORD MOTOR COMPANY

44. NOTE: The wheel hub nut contains a one time locking chemical that is activated by the heat created when it is tightened. Install and tighten the new wheel hub nut to specification within 5 minutes of starting it on the threads. Always install a new wheel hub nut after loosening or when not tightened within the specified time or damage to the components can occur.
    NOTE: LH shown, RH similar.
    NOTE: Apply the brake to keep the halfshaft from rotating.

    Install a new wheel hub nuts.

    • Tighten to 350 Nm (258 lb-ft).

    Courtesy of FORD MOTOR COMPANY

45. NOTE: LH shown, RH similar.

    Install the new upper stabilizer link nut.

    • Tighten to 150 Nm (111 lb-ft).

    Courtesy of FORD MOTOR COMPANY

46. NOTE: LH shown, RH similar.

    Install the wheel speed sensor and the bolt.

    • Tighten to 15 Nm (133 lb-in).

    Courtesy of FORD MOTOR COMPANY

47. Connect the transaxle cooler tubes and install the 2 secondary latches.

    Courtesy of FORD MOTOR COMPANY

48. If equipped, install the oil cooler hose retainer to the subframe.

    Courtesy of FORD MOTOR COMPANY

49. If equipped, connect the 2 oil cooler coolant hoses.

    Courtesy of FORD MOTOR COMPANY

50. Install the 4 oil pan-to-transaxle bolts.
    • Tighten to 48 Nm (35 lb-ft).

    Courtesy of FORD MOTOR COMPANY

51. Install 3 new torque converter bolts by rotating the crankshaft clockwise.
    • Tighten to 55 Nm (41 lb-ft).

    Courtesy of FORD MOTOR COMPANY

52. Install the inspection cover and the 2 fasteners.

    Courtesy of FORD MOTOR COMPANY

53. NOTE: Do not lubricate the engine oil filter gasket with oil.

    Install a new engine oil filter.

    • Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.

    Courtesy of FORD MOTOR COMPANY

    AWD vehicles

54. Line up the index marks on the rear driveshaft to the index marks on the PTU flange made during removal and install the 4 new bolts.
    • Tighten to 70 Nm (52 lb-ft).

    Courtesy of FORD MOTOR COMPANY

    All vehicles

55. Install the exhaust Y-pipe. For additional information, refer to Exhaust System .
56. NOTE: Do not allow the intermediate shaft to rotate while it is disconnected from the gear or damage to the clockspring may occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. For additional information, refer to Supplemental Restraint System .

    Align and connect the steering column shaft to the steering gear and install the bolt.

    • Tighten to 20 Nm (177 lb-in).

    Courtesy of FORD MOTOR COMPANY

57. If equipped, attach the engine block heater harness to the radiator support.
58. Attach the wiring harness pin-type retainer to the shift cable bracket and connect the transaxle control cable to the shift cable bracket.

    Courtesy of FORD MOTOR COMPANY

59. Connect the transaxle control cable to the control lever.

    Courtesy of FORD MOTOR COMPANY

60. Connect the upper radiator hose, lower radiator hose and 2 heater hoses to the thermostat housing.

    Courtesy of FORD MOTOR COMPANY

61. Install the ground wire to the RH shock tower and install the bolt.
    • Tighten to 10 Nm (89 lb-in).

    Courtesy of FORD MOTOR COMPANY

62. Install the engine wiring harness retainer to the bulkhead.
    1. Slide the wiring harness in the bulkhead.
    2. Make sure the wiring harness retainer tab is below the bulkhead lip.

    Courtesy of FORD MOTOR COMPANY

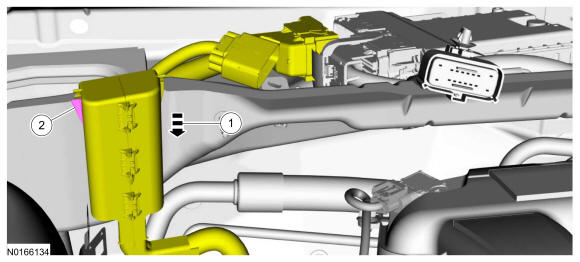

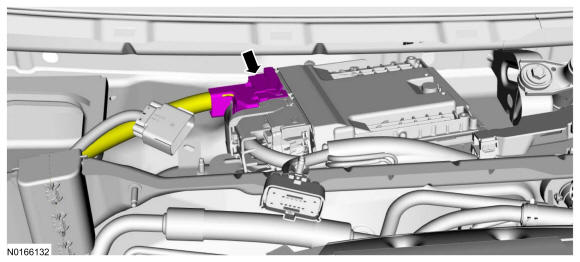

63. Connect the PCM electrical connector.

    Courtesy of FORD MOTOR COMPANY

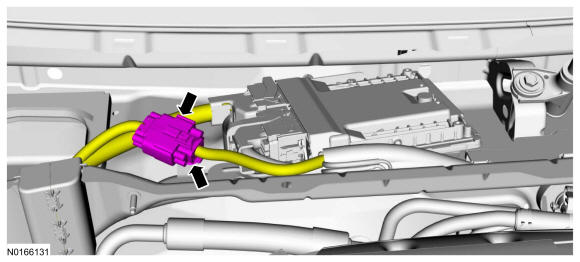

64. Connect the engine harness electrical connector.
    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

65. Connect the Evaporative Emission (EVAP) tube and the fuel supply tube quick connect coupling. For additional information, refer to Fuel System General Information .

    Courtesy of FORD MOTOR COMPANY

66. Connect the brake booster vacuum hose to the upper intake manifold.

    Courtesy of FORD MOTOR COMPANY

67. Connect the degas bottle coolant hose to the engine coolant tube.

    Courtesy of FORD MOTOR COMPANY

68. Install the degas bottle. For additional information, refer to Engine Cooling .
69. Using a new O-ring seal and gasket seal, connect the upper A/C tube to the condenser and install the nut.
    • Tighten to 15 Nm (133 lb-in).

    Courtesy of FORD MOTOR COMPANY

70. Connect the A/C pressure switch electrical connector.

    Courtesy of FORD MOTOR COMPANY

71. Using a new O-ring seal and gasket seal, connect the A/C tube and install the nut.
    • Tighten to 15 Nm (133 lb-in).

    Courtesy of FORD MOTOR COMPANY

72. Install the accessory drive belt. For additional information, refer to Accessory Drive .
73. Position the splash shield and install the 3 pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

74. Install the 2 front suspension height sensors. For additional information, refer to Vehicle Dynamic Suspension .
75. Install the front wheels and tires. For additional information, refer to Wheels and Tires .
76. If equipped, install the underbody shield and attach the 4 retainers.

    Courtesy of FORD MOTOR COMPANY

77. Connect the engine wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

78. Install the ground wire cable and the retainer.
    • Tighten to 10 Nm (89 lb-in).

    Courtesy of FORD MOTOR COMPANY

79. Connect the 2 battery feed cables to the positive battery terminal and install the nut.
    • Tighten to 5 Nm (44 lb-in).

    Courtesy of FORD MOTOR COMPANY

80. Install the battery tray. For additional information, refer to Battery, Mounting and Cables .
81. Install the engine Air Cleaner (ACL) and ACL outlet pipe. For additional information, refer to Intake Air Distribution and Filtering .
82. Install the strut tower brace and the 4 nuts.
    • Tighten to 35 Nm (26 lb-ft).

    Courtesy of FORD MOTOR COMPANY

83. Install the cowl panel grille. For additional information, refer to Front End Body Panels .
84. Fill the engine with clean engine oil.
85. Fill and bleed the cooling system. For additional information, refer to Engine Cooling .
86. Recharge the A/C system. For additional information, refer to Climate Control System General Information .
87. Perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
