OEM Ground Distribution: Grounds

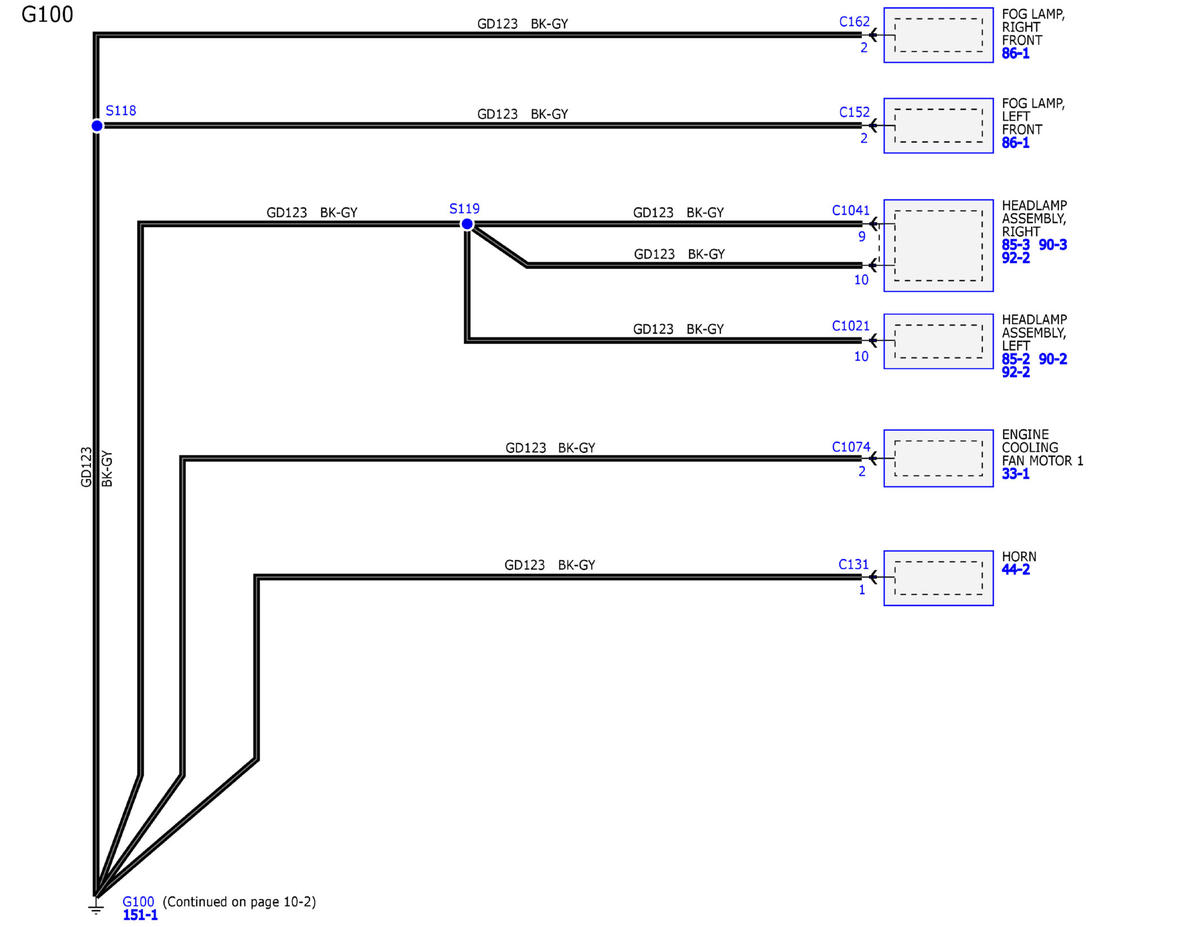

GFDW91879Courtesy of FORD MOTOR COMPANY

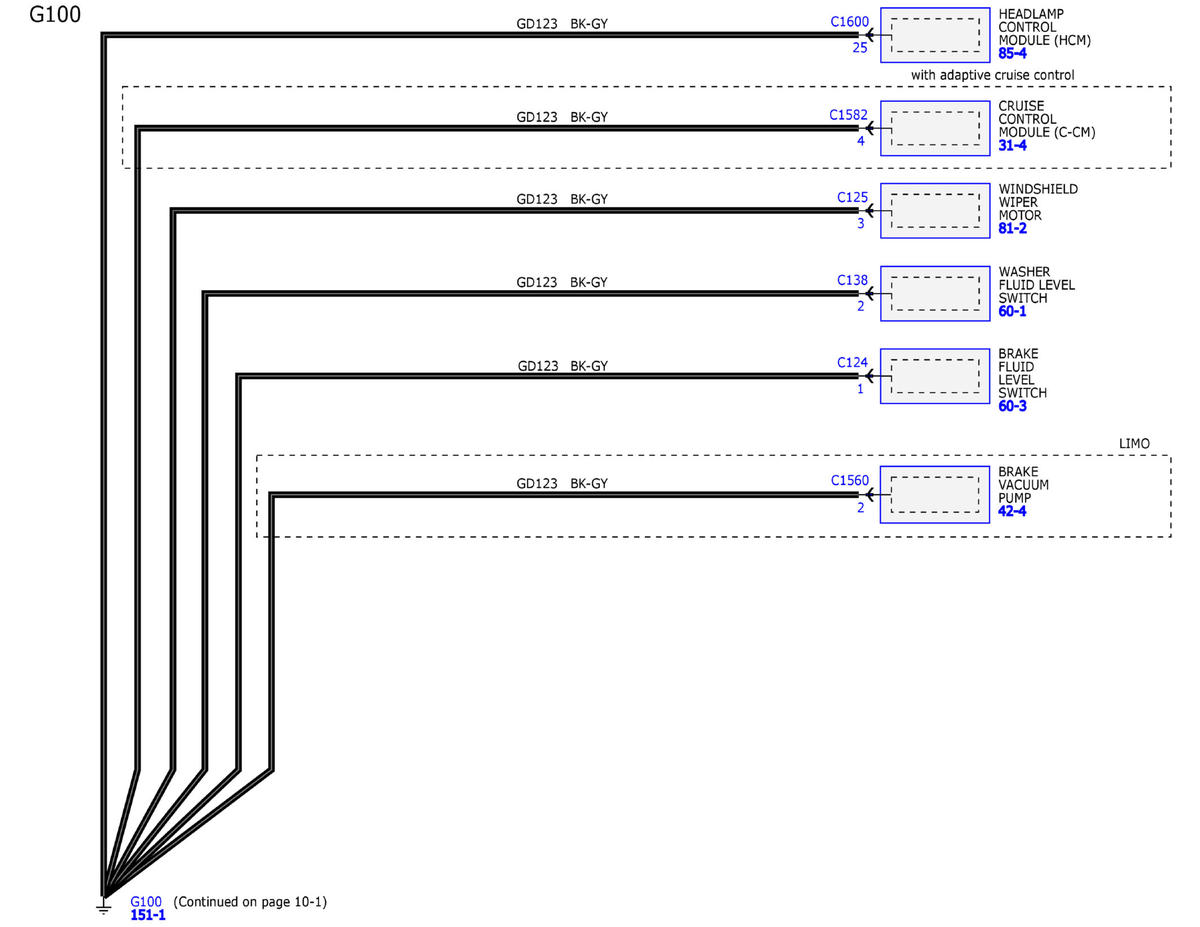

GFDW91880Courtesy of FORD MOTOR COMPANY

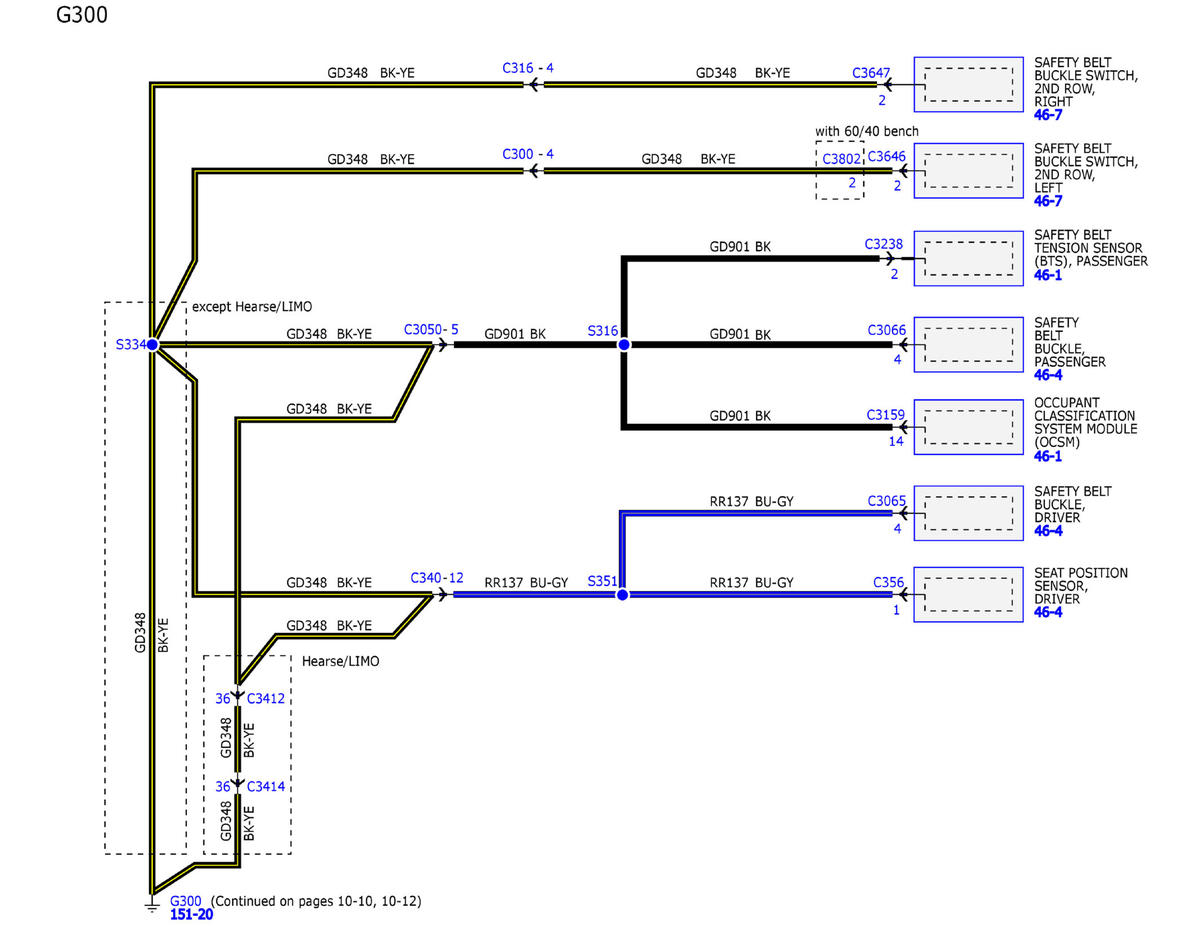

GFDW91881Courtesy of FORD MOTOR COMPANY

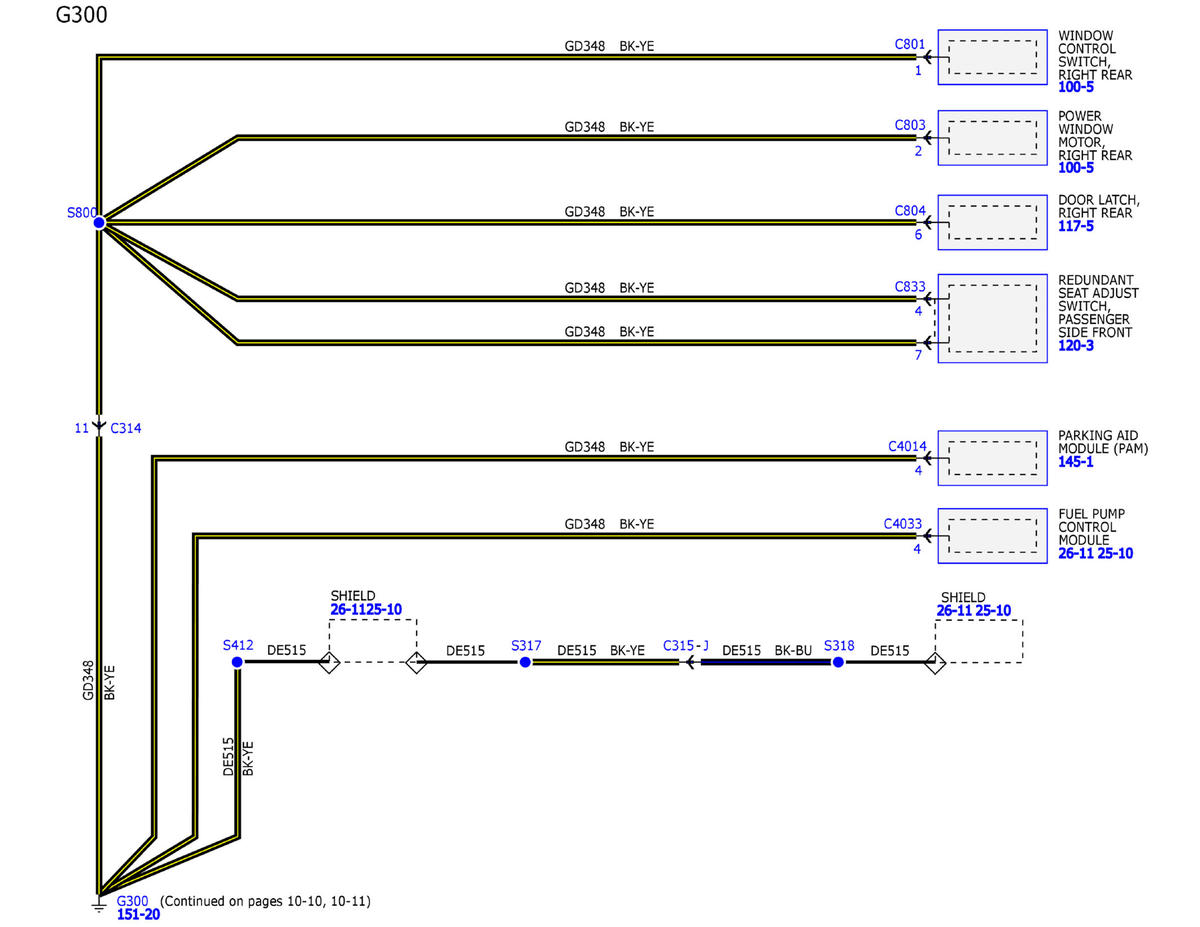

GFDW91882Courtesy of FORD MOTOR COMPANY

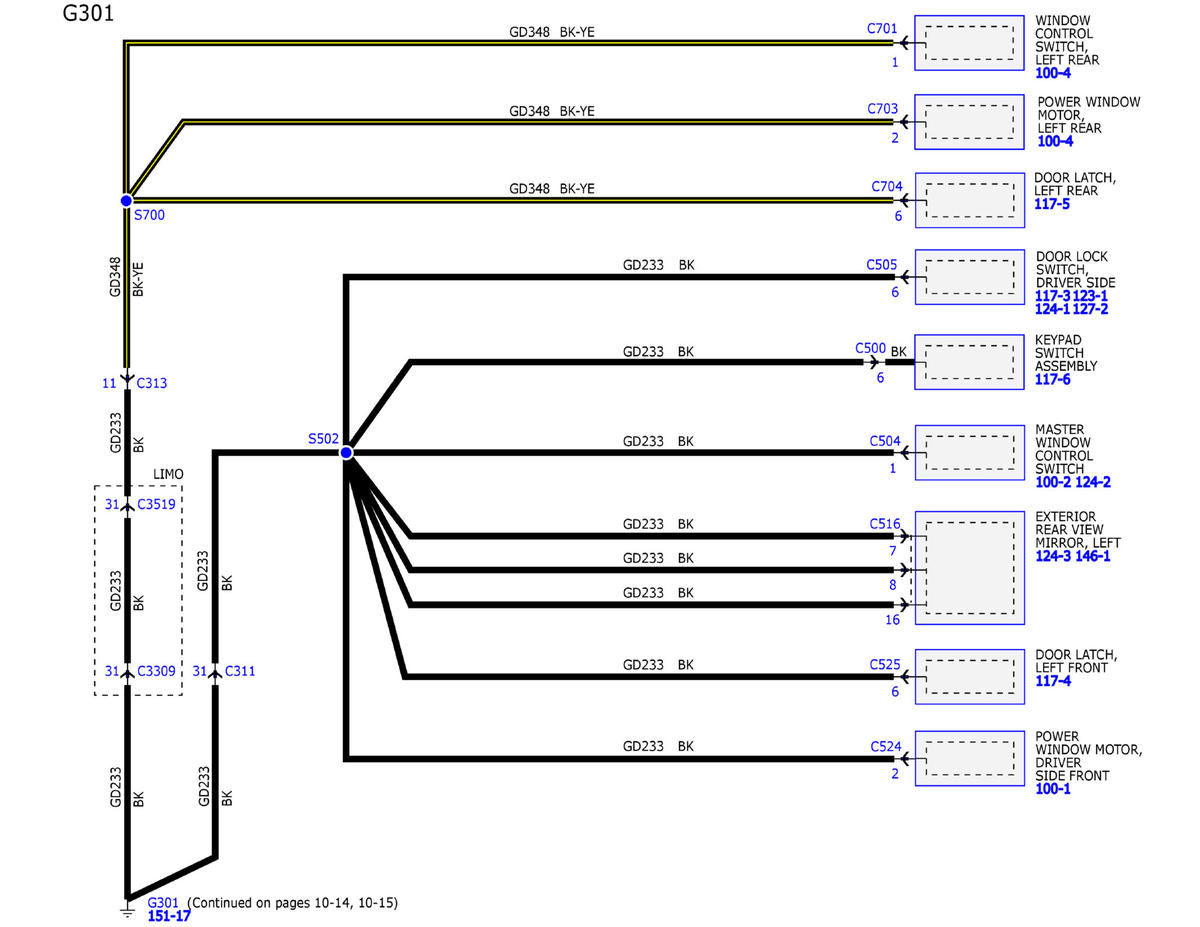

GFDW91883Courtesy of FORD MOTOR COMPANY

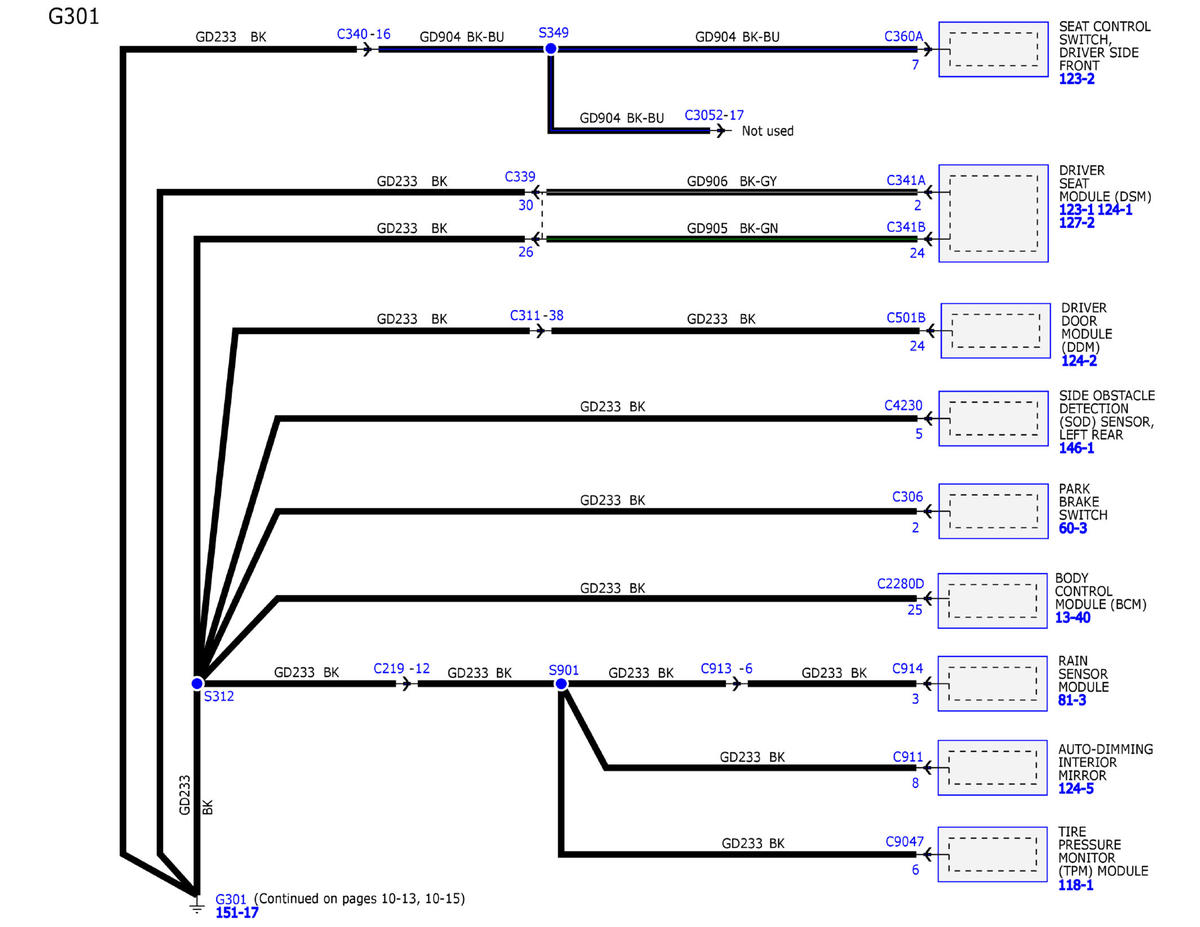

GFDW91884Courtesy of FORD MOTOR COMPANY

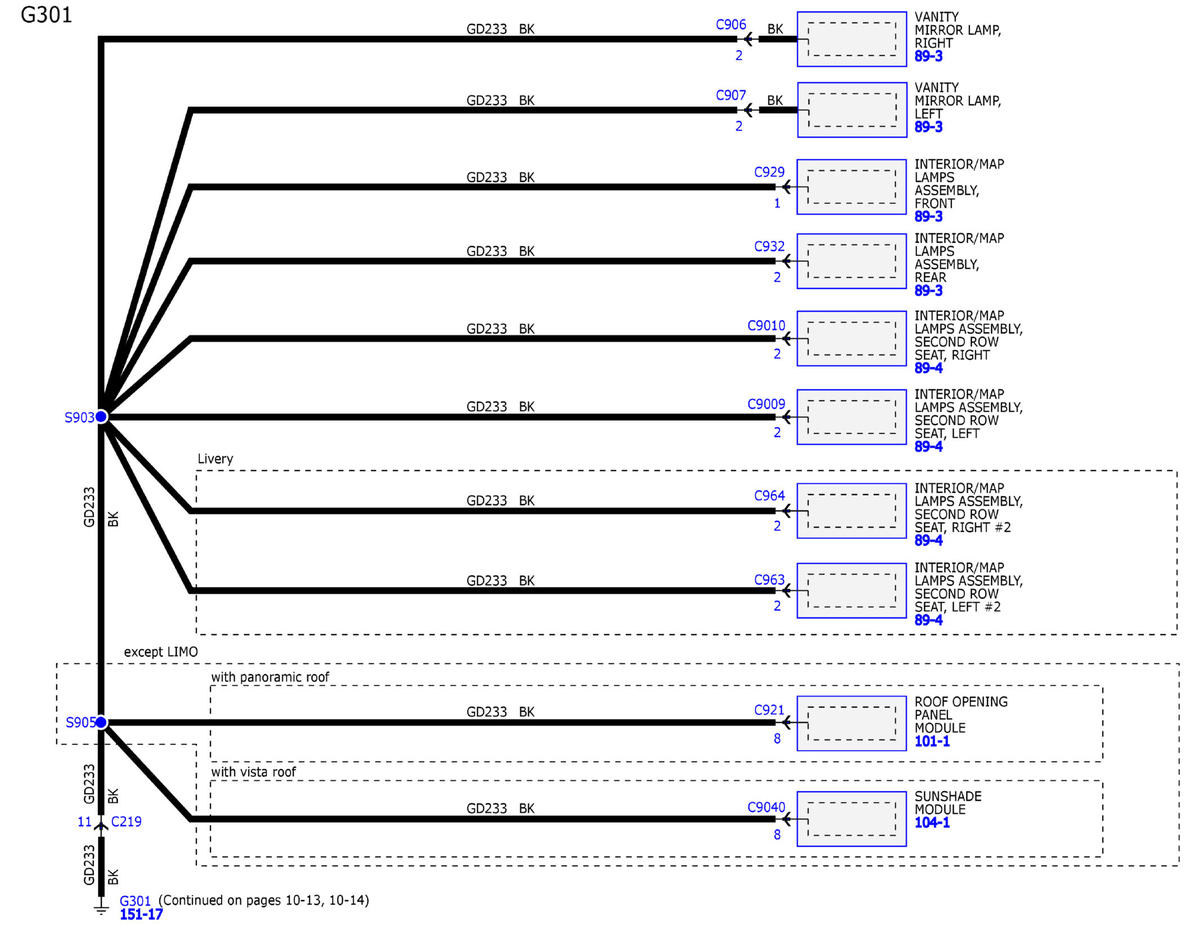

GFDW91885Courtesy of FORD MOTOR COMPANY

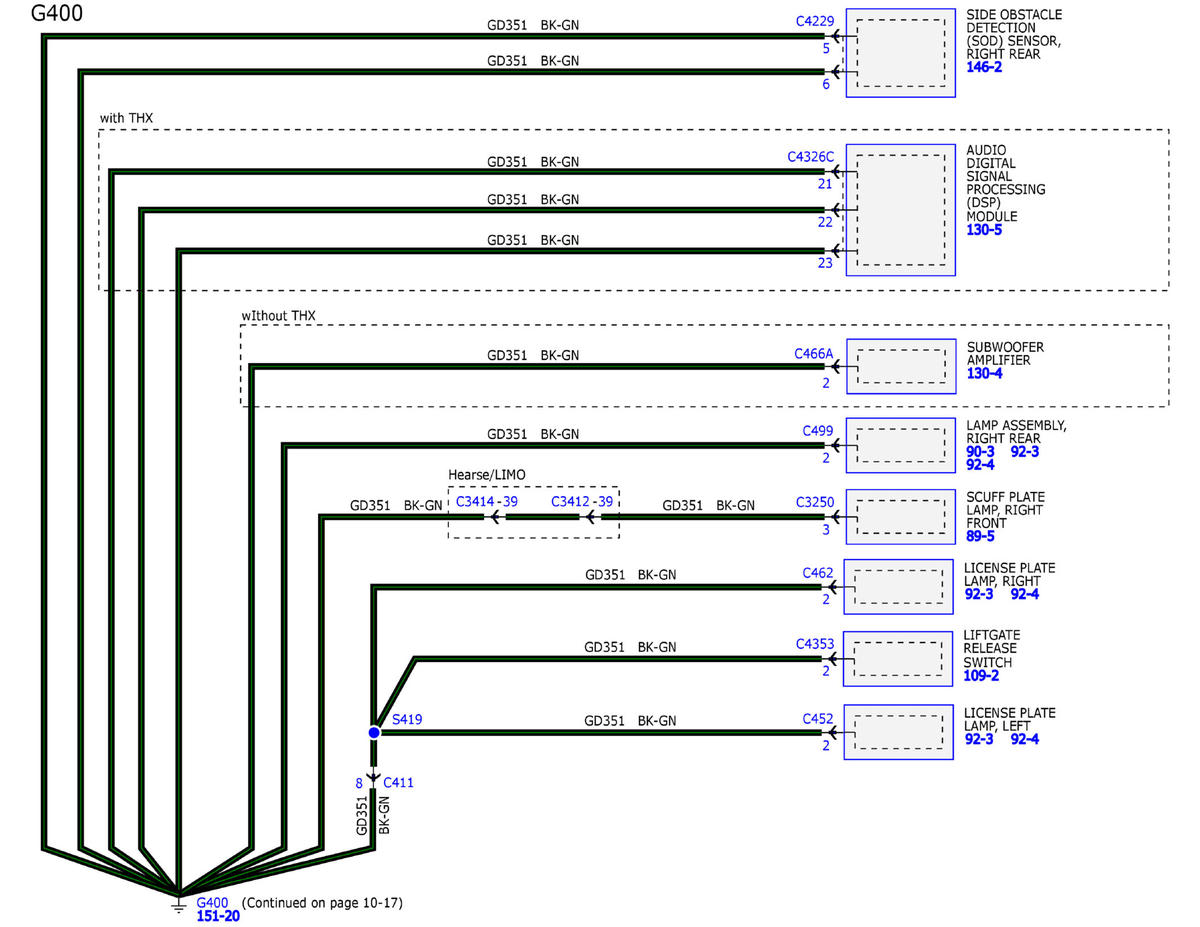

GFDW91886Courtesy of FORD MOTOR COMPANY

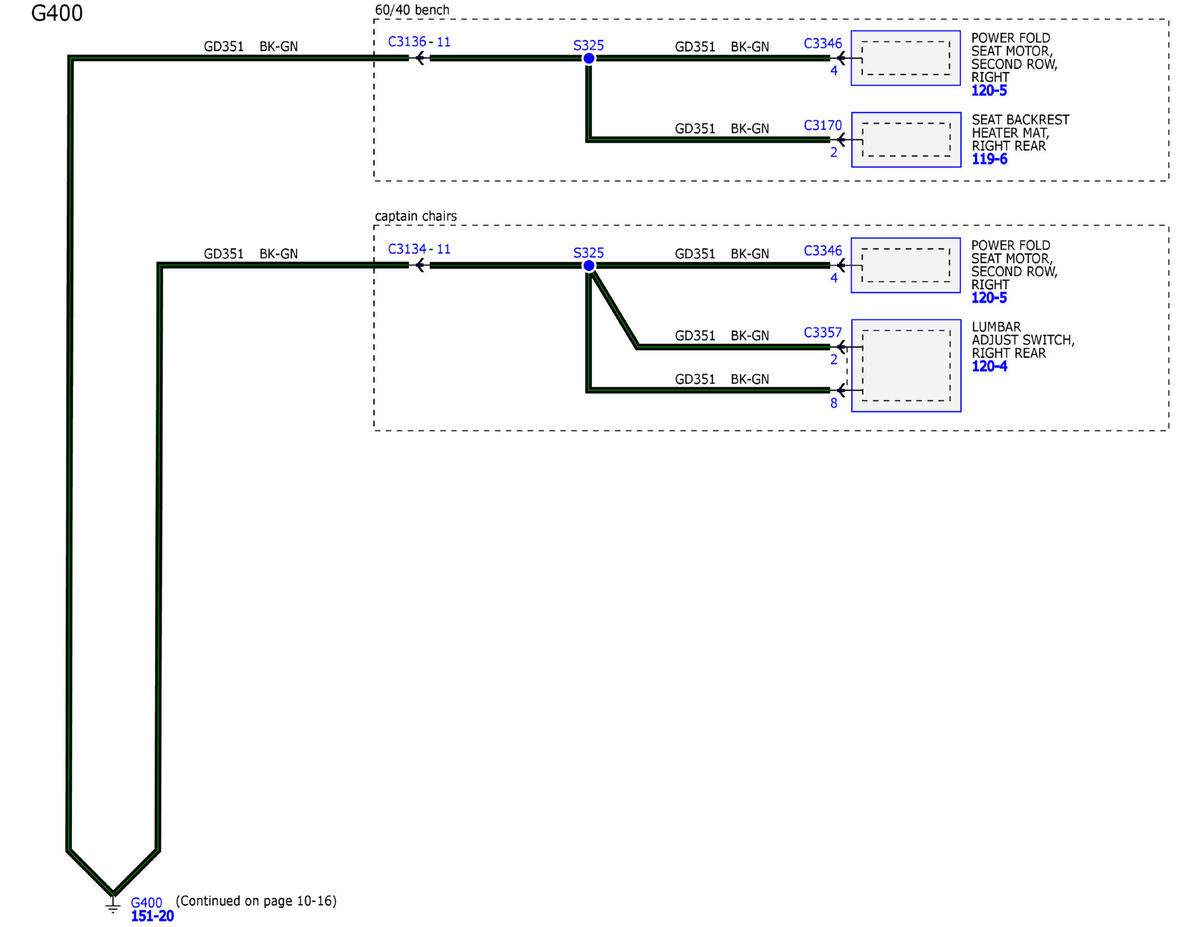

GFDW91887Courtesy of FORD MOTOR COMPANY

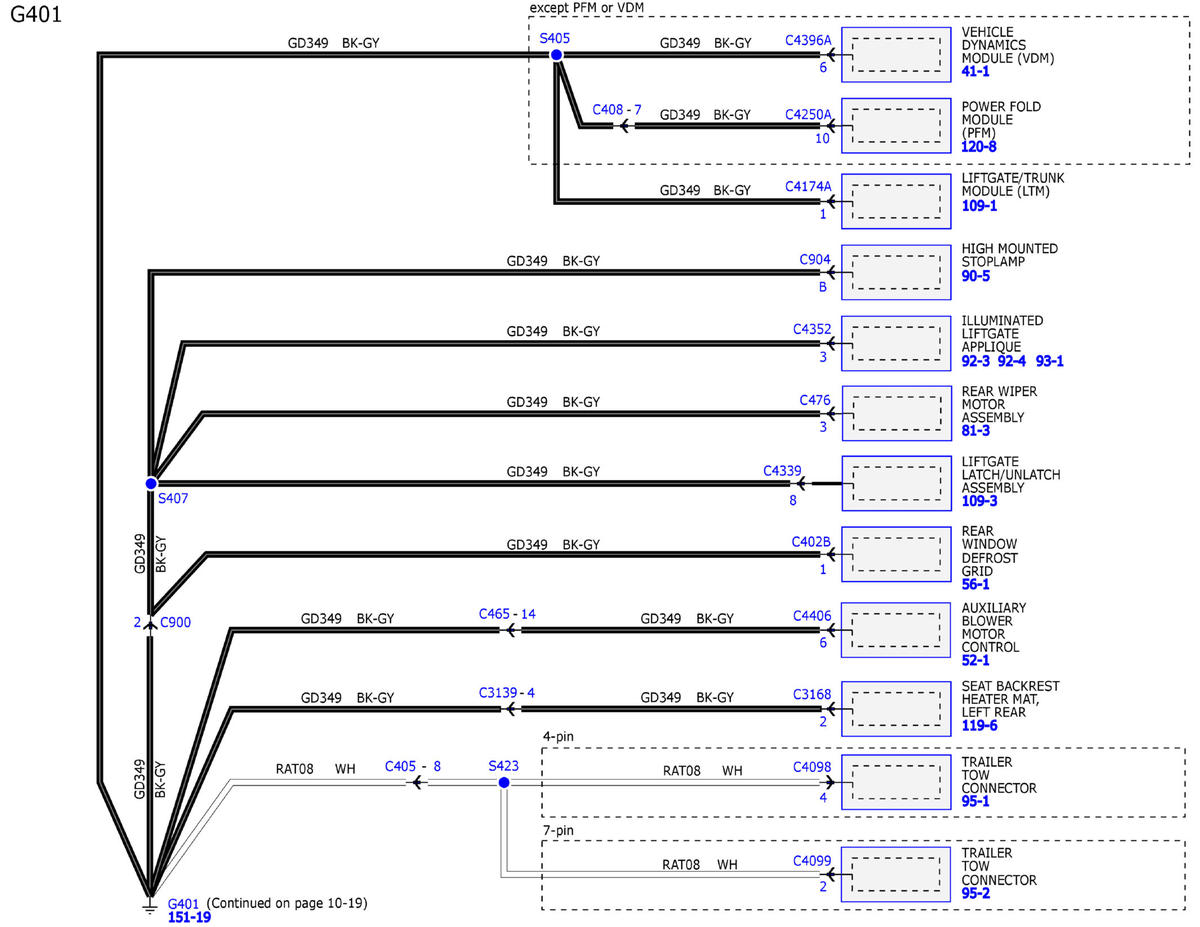

GFDW91888Courtesy of FORD MOTOR COMPANY

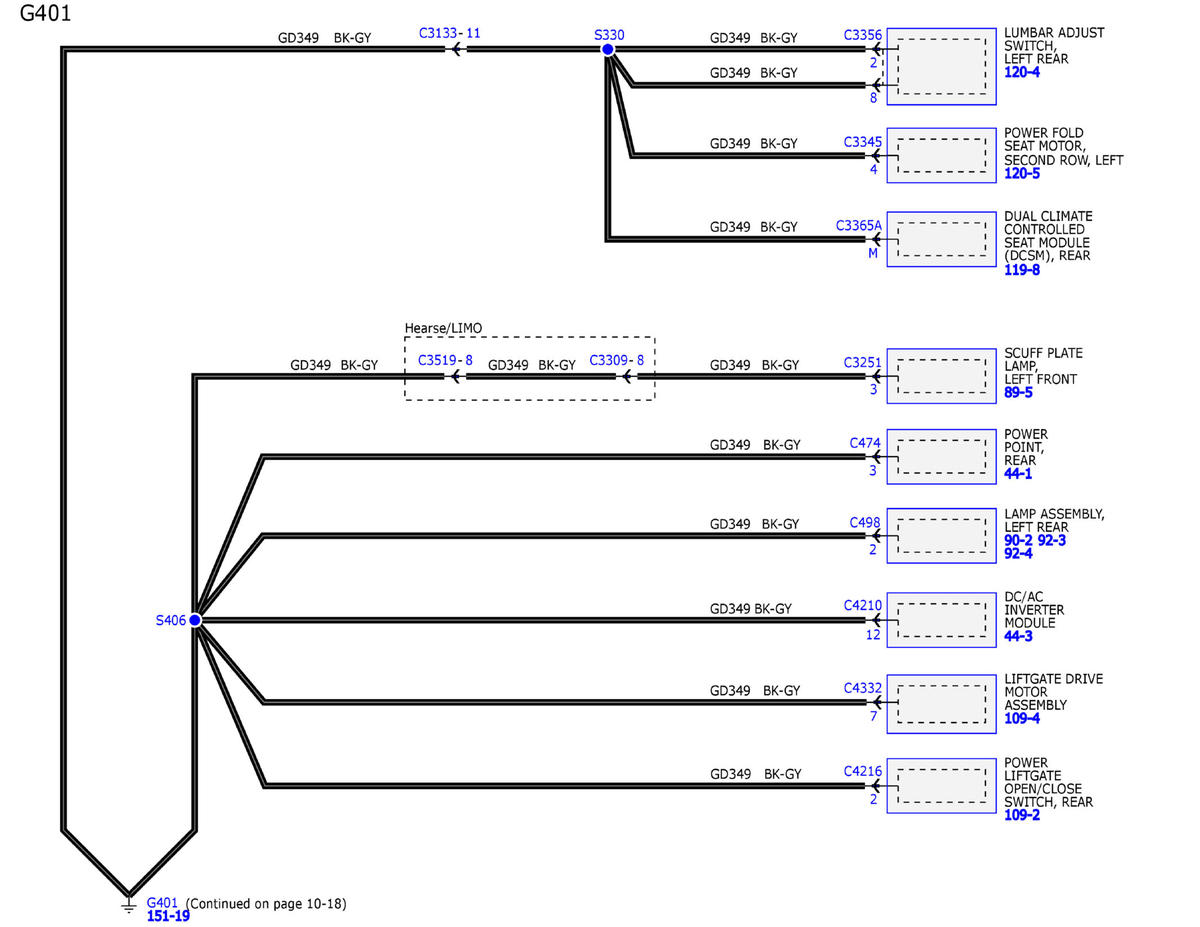

GFDW91889Courtesy of FORD MOTOR COMPANY

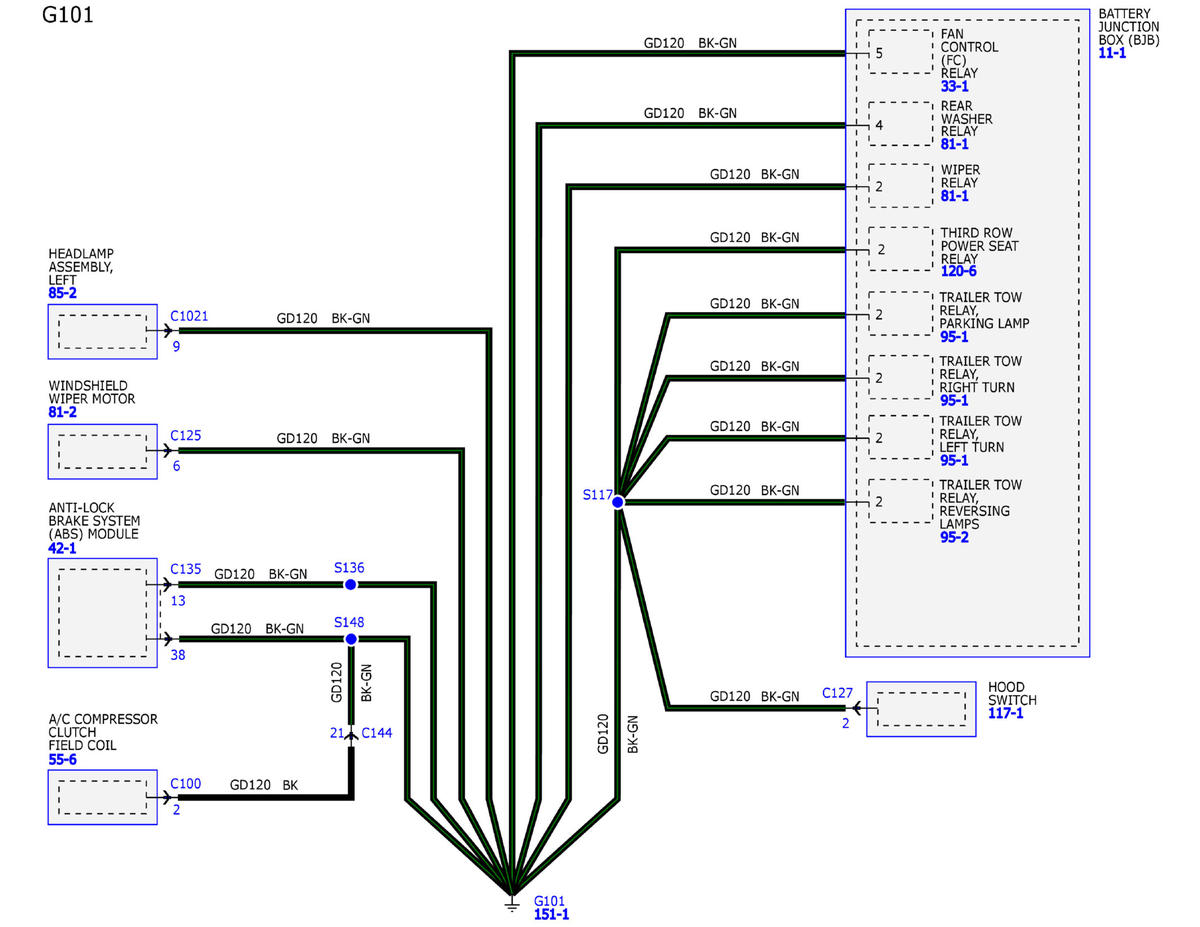

GFDW91890Courtesy of FORD MOTOR COMPANY

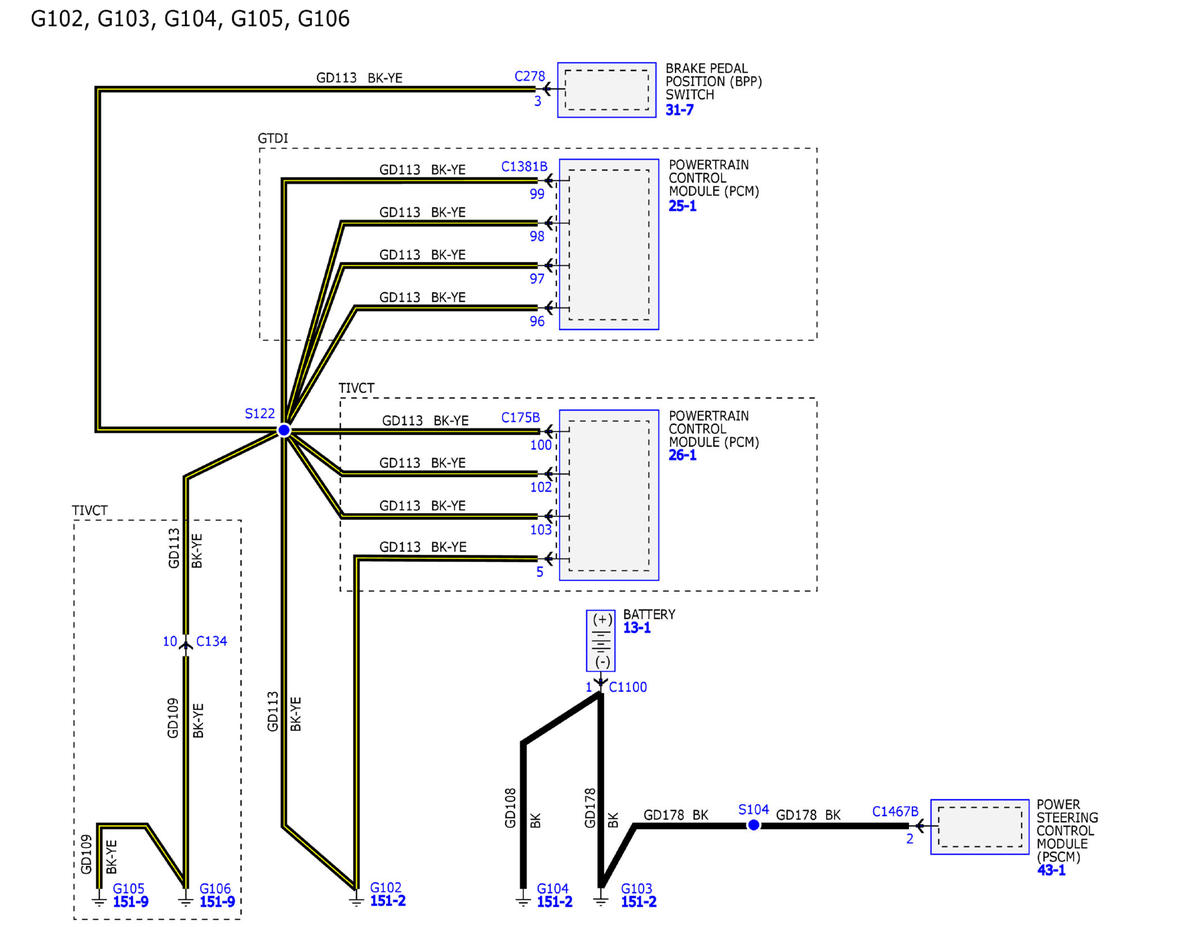

GFDW91891Courtesy of FORD MOTOR COMPANY

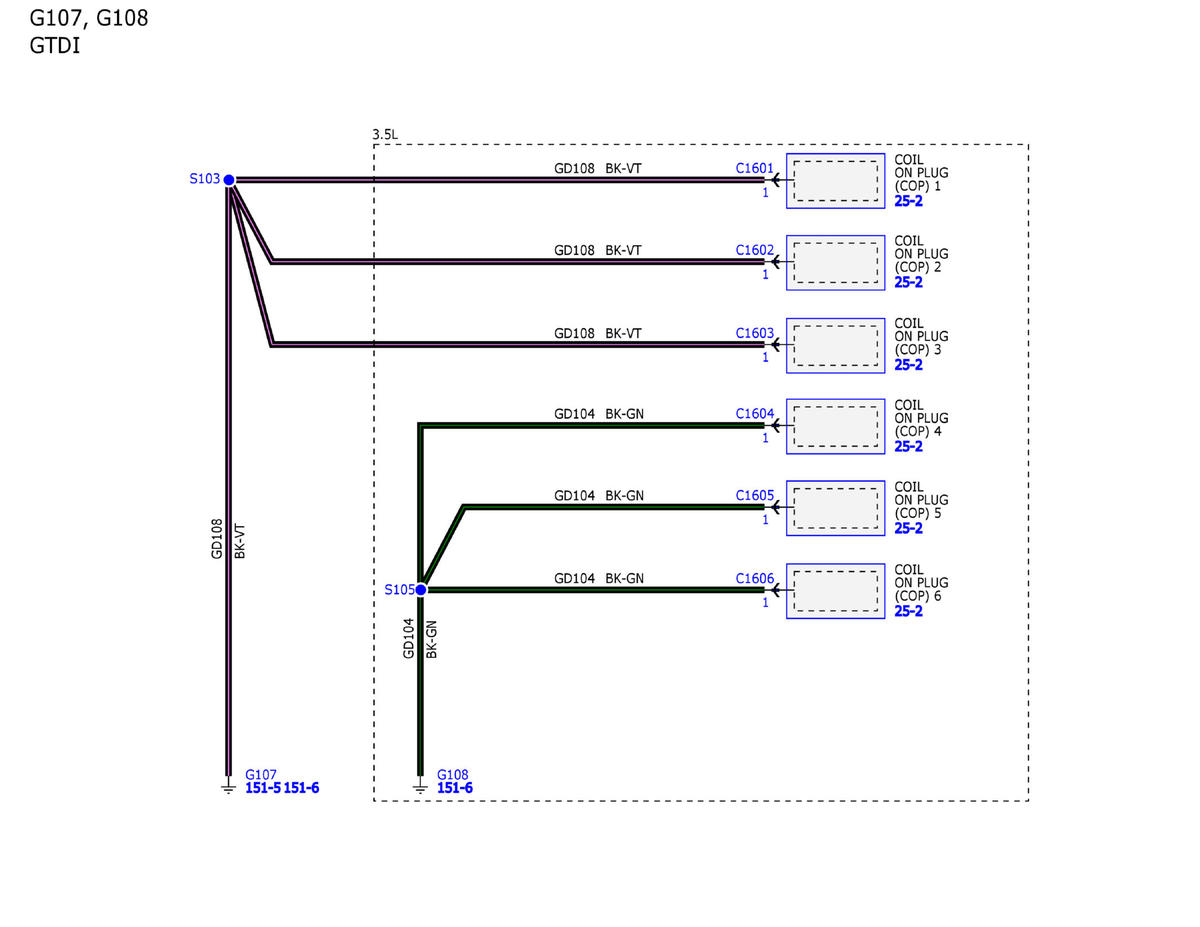

GFDW91892Courtesy of FORD MOTOR COMPANY

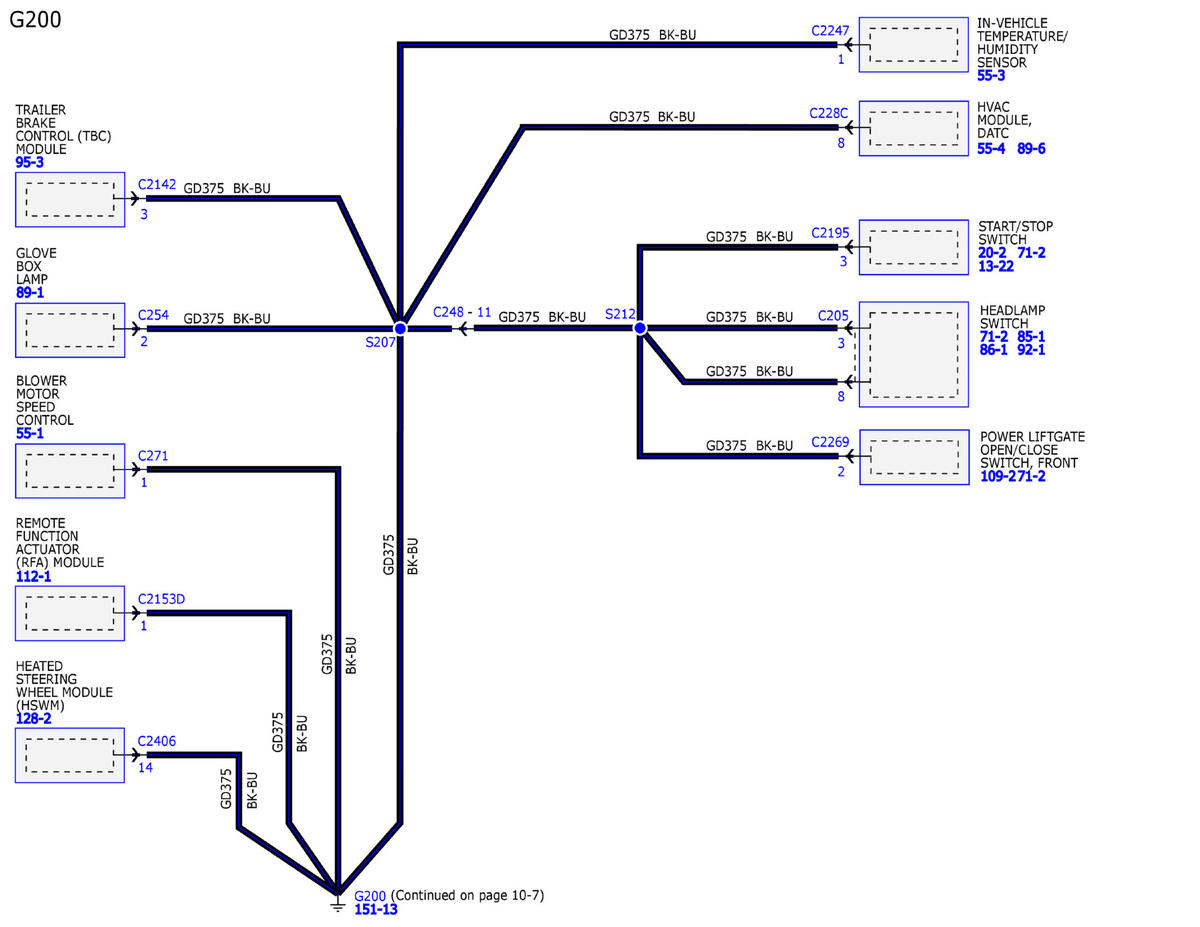

GFDW91893Courtesy of FORD MOTOR COMPANY

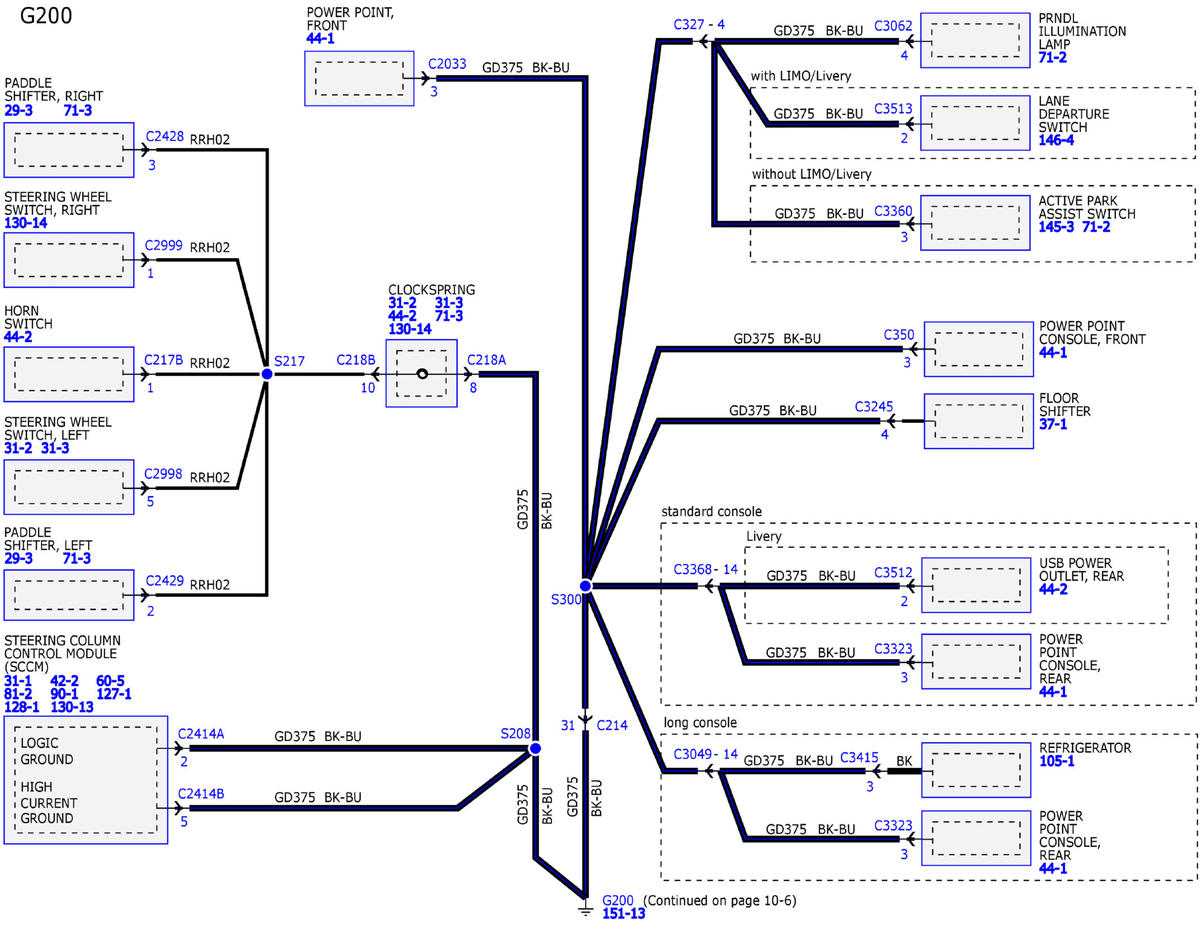

GFDW91894Courtesy of FORD MOTOR COMPANY

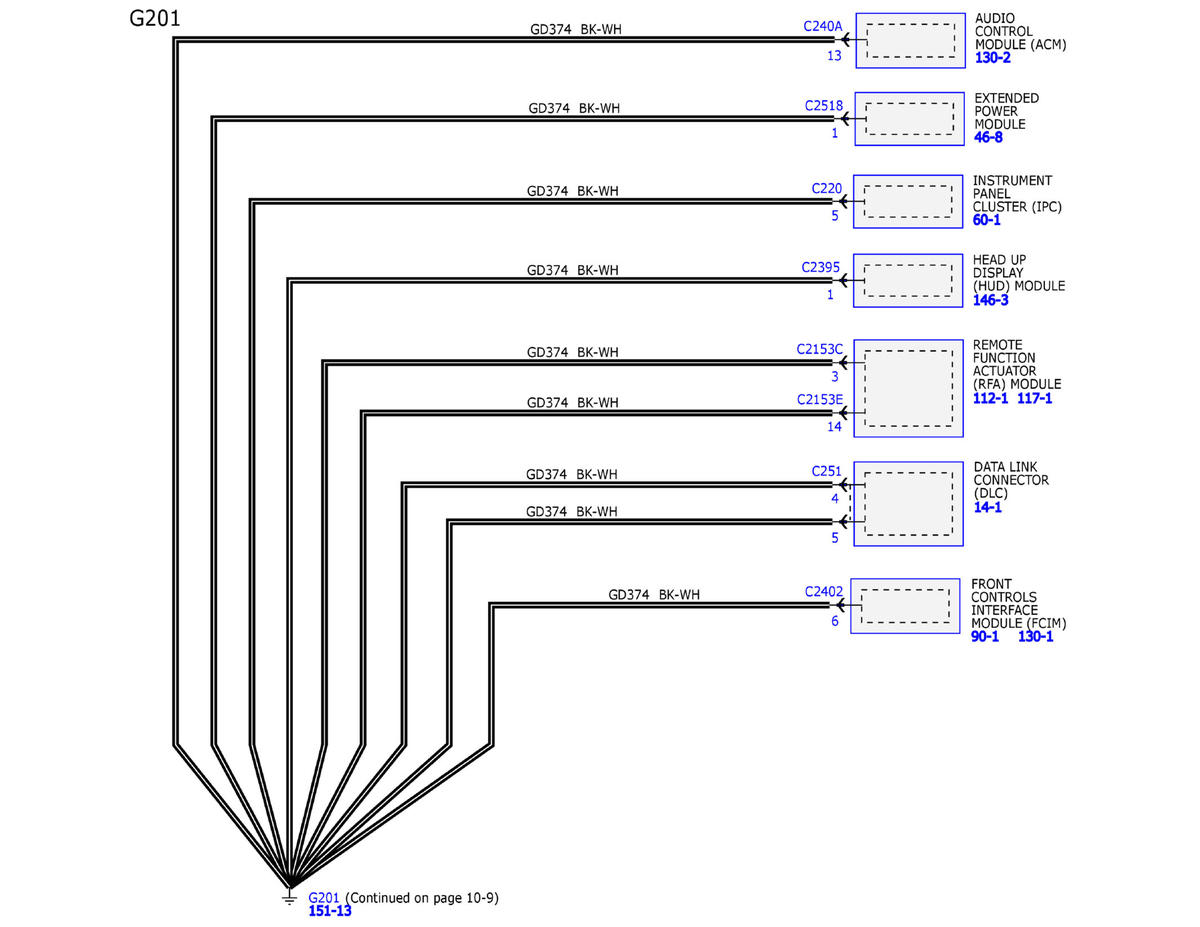

GFDW91895Courtesy of FORD MOTOR COMPANY

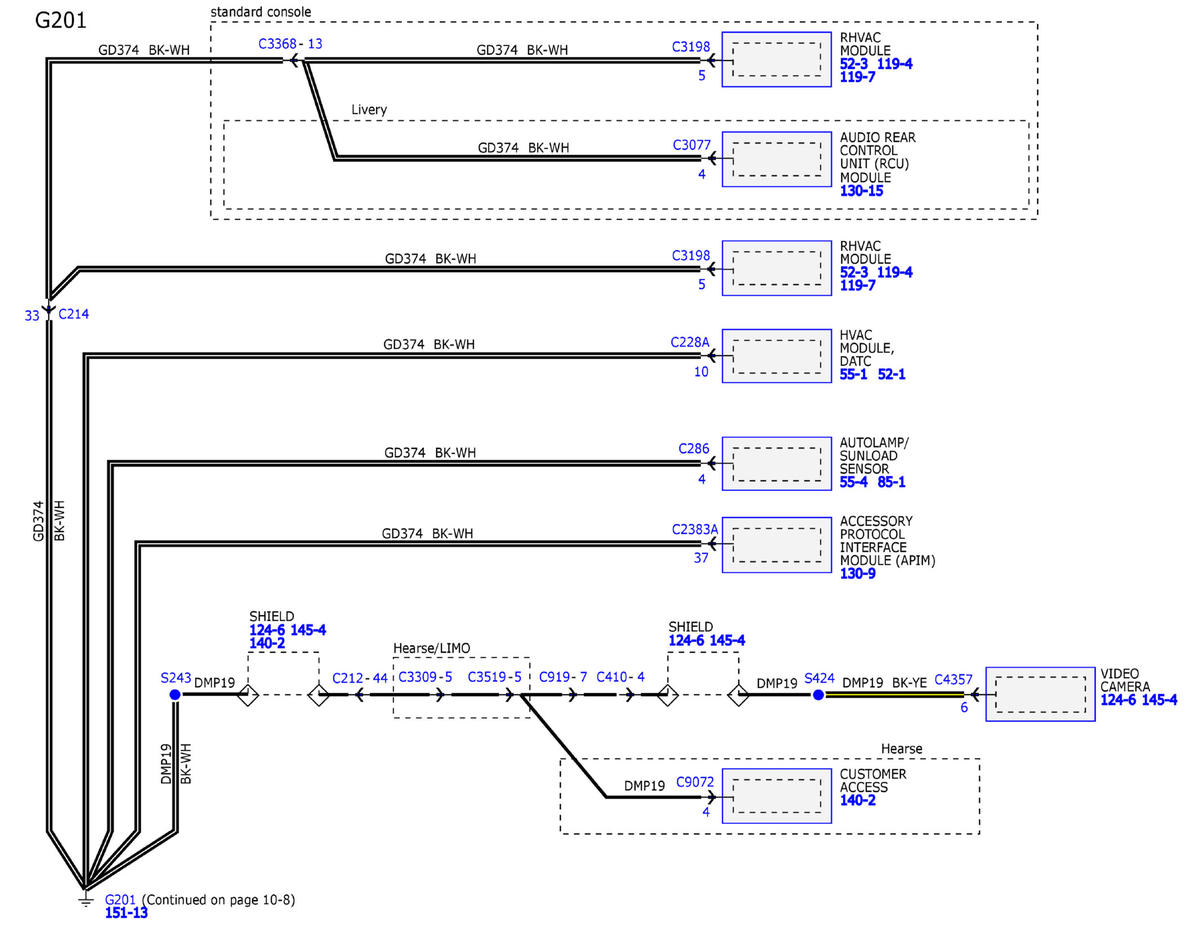

GFDW91896Courtesy of FORD MOTOR COMPANY

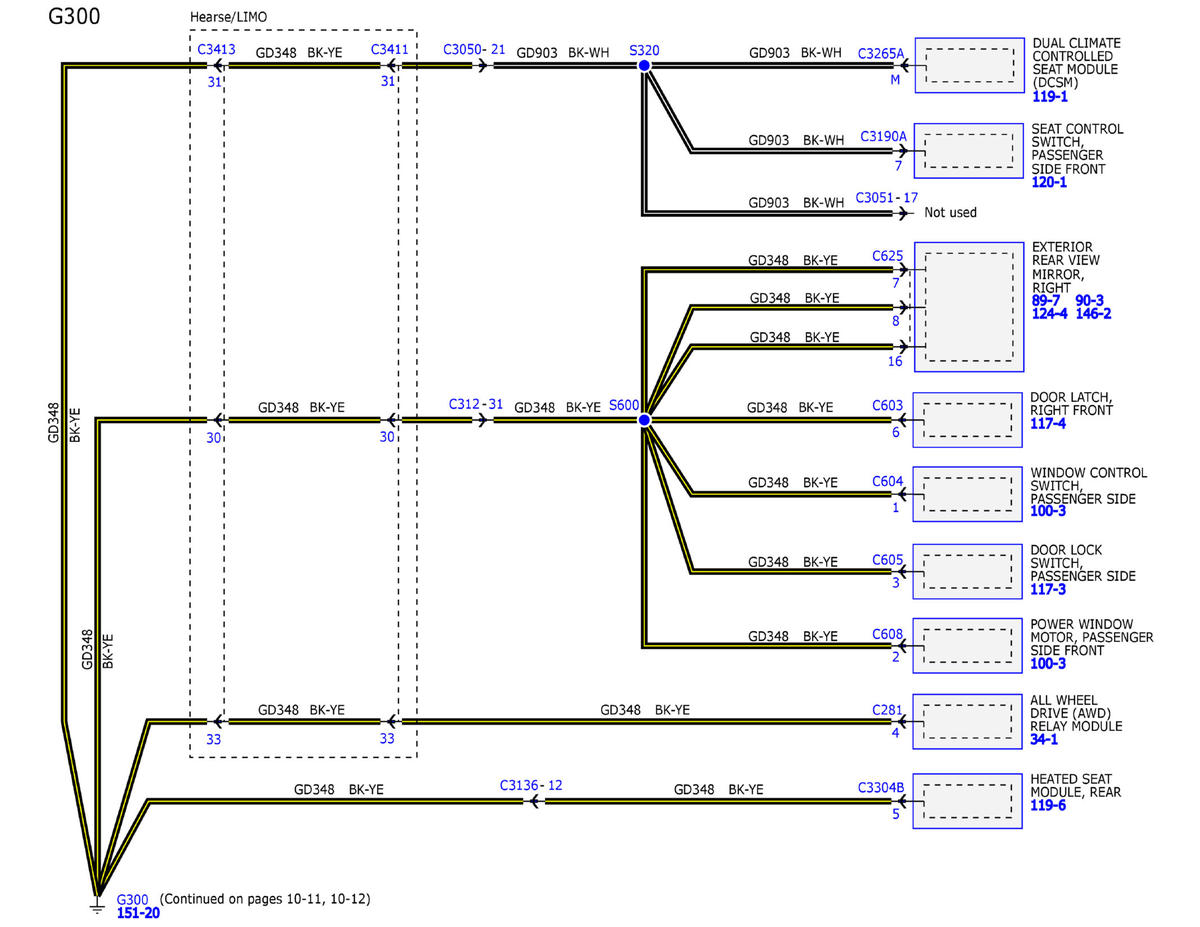

GFDW91897Courtesy of FORD MOTOR COMPANY
