Blower Motor Control Module: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The blower motor and the blower motor speed control is available only as part of the blower motor control module.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the push pins and the RH insulation panel.
- If equipped, disconnect the electrical connector.
-
NOTE: If equipped
Remove the TCCM. Refer to: Transfer Case Control Module (TCCM) .

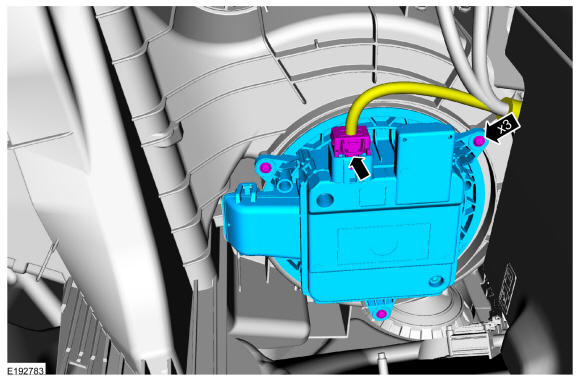

- Disconnect the electrical connector, remove the retainers and the blower motor control module.
