Catalyst Monitor Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

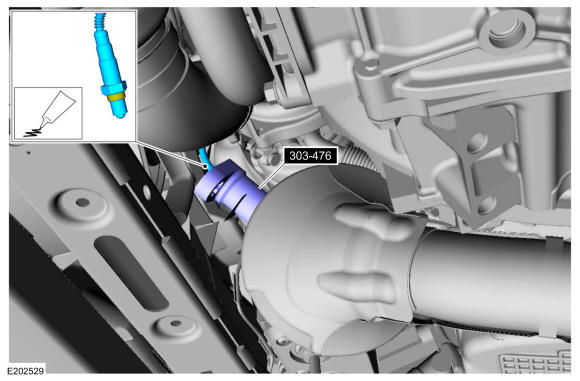

Left hand Catalyst monitor sensor

Apply anti-seize to thread of sensor, using special tool install the Catalyst monitor sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material

: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.

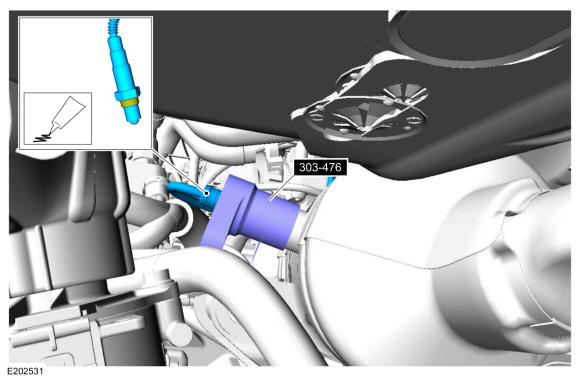

Right hand Catalyst monitor sensor
Apply anti-seize to thread of sensor, using special tool install the Catalyst monitor sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
